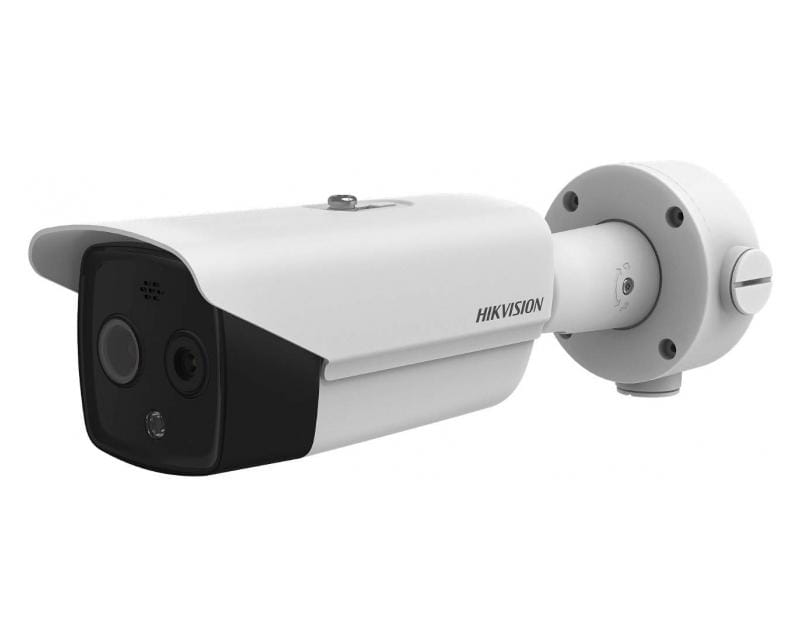

DS-2TD2617-3/PAI  Thermal & Optical Bi-spectrum Network Bullet Camera                            Hikvision DS-2TD2617-3/PAI Thermal & Optical Bi-spectrum Network Bullet Camera, equipped with built-in GPU which  supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to  perimeter defense and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory,  4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.  Smart Function (Thermal Imaging)  ● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mk (@25 °C,F# = 1.1)  ● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit  ● Temperature alarm for fire prevention  ● Fire detection algorithm  ● Bi-spectrum Image Fusion, picture in picture preview  ● Strobe light and audio alarm  Thermal Imaging Module Function  ● 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, and high sensitivity sensor  ● 3D DNR, 15 palettes of color adjustable, image detail enhan...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2TD2617-3/PAI
Thermal & Optical Bi-spectrum Network Bullet Camera













Hikvision DS-2TD2617-3/PAI Thermal & Optical Bi-spectrum Network Bullet Camera, equipped with built-in GPU which
supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to
perimeter defense and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory,
4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.
Smart Function (Thermal Imaging)
● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mk (@25 °C,F# = 1.1)
● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
● Temperature alarm for fire prevention
● Fire detection algorithm
● Bi-spectrum Image Fusion, picture in picture preview
● Strobe light and audio alarm
Thermal Imaging Module Function
● 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, and high sensitivity sensor
● 3D DNR, 15 palettes of color adjustable, image detail enhancement, and contrast adjustment
● Mirror image, digital zoom x2, x4, x8



Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval 17μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 40 mk (@25 °C,F# = 1.1)
Lens (Focal Length) 3.1 mm
IFOV 5.48 mrad
Field of View 50° x 37.2° (H x V)
Min. Focusing Distance 0.2 m
Aperture F 1.1
Optical Module
Max. Image Resolution 2688 x 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Lens (Focal Length) 4 mm
Field of View 84° x 44.8° (H x V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range -20 °C to + 150 °C (-4 °F to + 302°F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
Infrared
IR Distance Up to 40 m
IR Intensity and Angle Automatically adjusted
Network
Main Stream
Optical: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Thermal: 25 fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240)



Sub-stream
Optical: 50 Hz: 25 fps (704 x 576, 352 x 288, 176 x 144)
60 Hz: 30 fps (704 x 480, 352 x 240, 176 x 120)
Thermal: 25 fps (704 x 576, 352 x 288, 320 x 240)
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering
interface
Alarm Input 1-ch inputs (0-5 VDC)
Alarm Output 1-ch relay outputs, alarm response actions configurable
Alarm Action
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white
light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ
± 10%
Audio Output Linear level, impedance: 600 Ω
Reset 1, Reset Button
Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface.
SD Memory Card
Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 GB)
Supports manual/alarm recording
Application Programming
Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ONVIF (Profile S, Profile G, Profile T)
Client iVMS-4200, Hik-Connect
Web Browser IE 8-11, Chrome 41-44, Firefox 30-51
General
Menu language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC± 25%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
9 VDC to 15 VDC: 0.65 A, max. 7.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.0 W
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 354 mm x 144.1 mm x 156.7 mm (13.94" x 5.67" x 6.17")
Weight Approx. 1.76 kg (3.88 lb)




Detection Range Table
* The table is only for reference and the performance may vary from camera to camera.
Smart Functions Range
Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles: 1.4 x
4.0 m)
VCA Range
(Humans: 1.8 x
0.5 m)
Temperature
Measurement
(Object: 2 x 2 m)
Temperature
Measurement
(Object: 1 x 1 m)
Fire Detection
(Object: 2 x 2 m)
Fire Detection
(Object: 1 x 1 m)
63 m 21 m 66 m 33 m 180 m 90 m

Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
280 m 91 m 70 m 23 m 35 m 11 m

Available Model
DS-2TD2617-3/PAI
Dimension
354 mm (13.94")
333.1 mm (13.11")144.1 mm (5.67")
156
.7
mm
