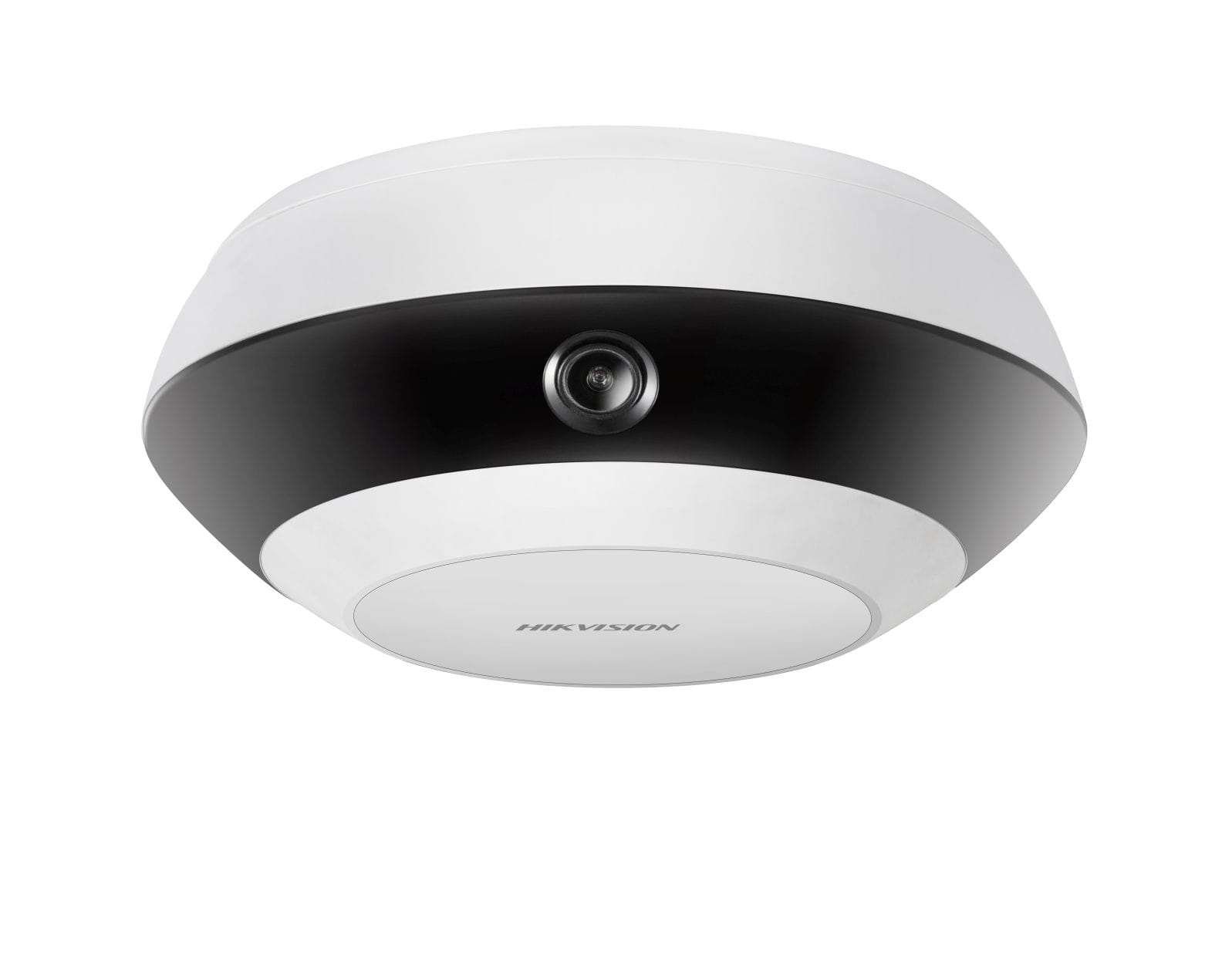

DS-2PT3306IZ(2mm)
Description
Overview Hikvision DS-2PT3306IZ-DE3(2mm) PanoVu Mini Series IR Network PTZ Camera can be widely used in multiple indoor scenes such as the store, classroom, office hall, hotel lobby, and airport lobby, etc. Functions * Three 1/2.8" progressive scan CMOS * Up to 3-ch 1920 x 1080@30fps resolution * Min. illumination: Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR * Horizontal FOV: 128.5° x 3 Vertical FOV: 75.7° * Up to 10 m IR radius DS-2PT3306IZ-DE3(2mm) PanoVu Mini Series IR Network PTZ Camera Specification Camera Image Sensor Three 1/2.8" progressive scan CMOS Min. Illumination Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp Shutter Time 1/1 s to 1/30,000 s Day & Night IR Cut Filter Focal Length 2 mm Aperture Range F2.0 FOV Horizontal field of view: 128.5° x 3 Vertical field of view: 75.7° Resolution (Sub-stream enabled) Main stream: 50 Hz: 20 fps (1920 x 1080, 1280 x 960, 1280 x 720) 60 Hz: 20 fps (1920 x 1080, ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Overview
Hikvision DS-2PT3306IZ-DE3(2mm) PanoVu Mini Series IR
Network PTZ Camera can be widely used in multiple
indoor scenes such as the store, classroom, office hall,
hotel lobby, and airport lobby, etc.
Functions
* Three 1/2.8" progressive scan CMOS
* Up to 3-ch 1920 x 1080@30fps resolution
* Min. illumination:
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
* Horizontal FOV: 128.5° x 3
Vertical FOV: 75.7°
* Up to 10 m IR radius
DS-2PT3306IZ-DE3(2mm)
PanoVu Mini Series IR Network PTZ Camera
Specification
Camera
Image Sensor Three 1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Focal Length 2 mm
Aperture Range F2.0
FOV Horizontal field of view: 128.5° x 3
Vertical field of view: 75.7°
Resolution
(Sub-stream enabled)
Main stream:
50 Hz: 20 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 20 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream:
50 Hz: 20 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 20 fps (704 x 480, 640 x 480, 352 x 240)
Resolution
(Sub-stream not enabled)
Main stream:
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
(Sub-stream enabled)
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG (MJPEG is only supported by channel 1)
H.264 with Main Profile/High Profile, H.265 with Main Profile
Video Compression
(Sub-stream not enabled)
Main stream: H.265/H.264/MJPEG(MJPEG is only supported by channel 1)
H.264 with Main Profile/High Profile, H.265 with Main Profile
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2
IR Radius 10 m
Smart Coding ROI, SVC
Smart Record ANR (Automatic Network Replenishment)
Basic Event Detection Motion Detection, Video Tampering Detection, Exception
Smart Event Detection Audio Exception Detection, Intrusion Detection, Line Crossing Detection
Privacy Mask 4 x 3 programmable privacy masks
Smart Image Enhancement Digital WDR/HLC/BLC/3D DNR/Defog/Regional Exposure
Network
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Network Interface 1 RJ45 10 M/100 M Ethernet
Audio Interface 1-ch audio input and 1-ch audio output
General
Power 12 VDC & PoE+ (802.3 at, class 4)
Max.20 W (Max. 6 W for IR)
Working Temperature -10°C to 50°C (14°F to 122°F)
Working Humidity ≤ 90%
Protection Level IP66, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material PC & Aluminum alloy
Dimensions Φ 183 mm x 76 mm (Φ 7.20" x 2.99")
Weight Approx. 0.68 kg (1.50 lb)
Available Model
DS-2PT3306IZ-DE3(2mm), 12 VDC & PoE+ (802.3 at, class 4)
Dimensions
7
6
Φ 183
Unit: mm
Φ 83.5
0504101080403
Accessories
DS-1294ZJ-TRL Wall Mounting Bracket
DS-1271ZJ-PT10 Pandent Mounting Bracket
