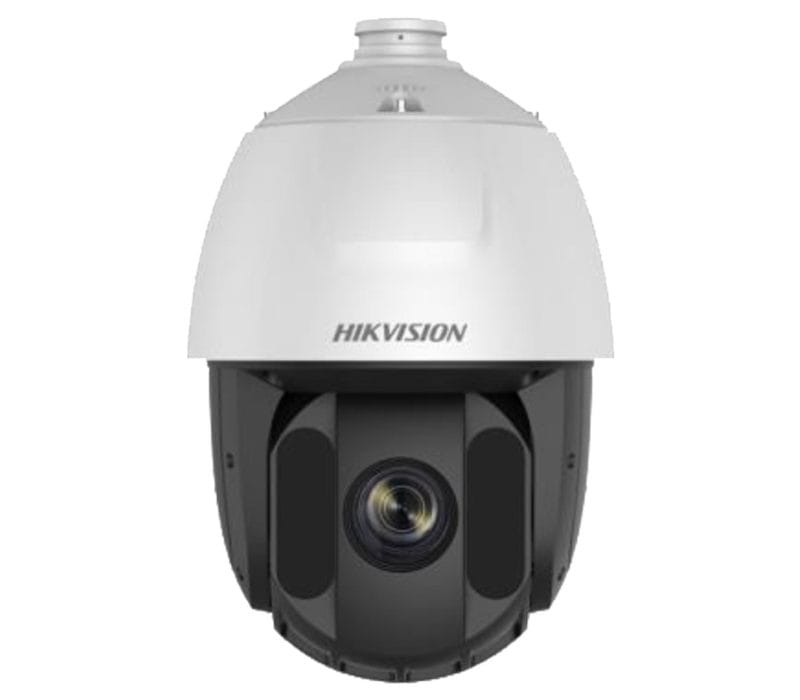

DS-2DE5225IW-AE(B)

Availability: 0

Price: €670.07 670.07

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 301313368

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Hikvision DS -2DE5225IW -AE 2MP 25x Network IR Speed
Dome adopt s 1/2.8 " progressive scan CMOS chip. With
the 2 5x optical zoom lens, the camera offers more details
over expansive areas .
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, roads,
railways, airports, squares, parks, scenic spots, and
venues, etc.

Key Features
* 1/2.8 " progressive scan CMO S
* Up to 1920 x 1080@30fps resolution
* Min. illumination:
Color: 0.00 5 Lux @(F1. 6, AGC ON)
B/W: 0.001 Lux @(F1. 6, AGC ON)
0 Lux with IR
* 2 5 x optical z oom, 16 x digital z oom
* WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional
Exposure, Regional Focus
* Up to 1 5 0 m IR distance
* 24 V A C & Hi - P o E
* Support H.265+/H.265 video compression

DS-2DE5225IW-AE
2MP 2 5 x Network IR Speed Dome

Specification
Camera Module
Image Sensor 1/2.8 " progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.00 1Lux @ (F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Lengt mm to 2 mm 25x optical oom
Zoom Speed Appro s optical lens wide -tele
Field of iew
oriontal field of view 5 to 25 Wide-Tele
ertical field of view to Wide-Tele
Diagonal field of view 5 to 2 Wide-Tele
Working Distance mm to 5 mm wide -tele
Aperture Range F to F5
IR
IR Distance 150 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 120°/s
Preset speed: 120°/s
Movement Range (Tilt) From - 15° to 90° (auto -flip)
Tilt Speed
Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan
3D Positioning Support
PTZ Position Display Support
Preset Freezing Support
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile

H.264+ Support
H.265 Type Baseline Profile/Main Profile/High Profile
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
SVC Support
Smart Features
asic Event Motion Detection ideo Tampering Detection Eception
Smart Event
Intrusion Detection Line Crossing Detection Region Entrance Detection Region Eiting
Detection bect Removal Detection nattended aggage Detection
Smart Record ANR Automatic Network Replenisment Dual-CA
RI Main stream sub-stream and tird stream respectively support four fied areas
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1280 x 960, 1280 x 720 )
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720 )
60fps (1280 x 960, 1280 x 720 )
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Network Interface 1 RJ45 10 M/100 M Ethernet, Hi-PoE
General
Power
24 VAC and Hi-PoE
Max.: 30 W (Max. 10 W for IR)
Working Temperature - 30°C to 65°C (- 22°F to 1 49°F)
Working Humidity ≤ 90%
Protection Level
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC 12, PC, PC+10% GF
Φmm (Φ
P

Available Model
DS-2DE522 5 IW -AE , 2 4 V AC & Hi -PoE

Dimensions
Unit: mm
Φ 208

345

305

0505111071212
Accessories

DS-1602ZJ Wall Mounting Bracket

DS-1602ZJ - co rner Co rner Mounting Bracket

DS-1602ZJ -pole Vertical Pole Mounting Bracket

DS-1602ZJ -box Wall Mounting Bracket with Junction Box

DS-1663ZJ Ceiling Mounting Bracket

DS-1661ZJ Pendant Mounting Bracket

DS-1662ZJ Pendant Mounting Bracket

DS-1619ZJ Gooseneck Mounting Bracket

DS-1100KI Network Keyboard

DS-1005KI USB Joy -stick
