DS-2DE4A225IW-DE(B)

Availability: 1-5
Price: €787.75 787.75
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301314623

Description

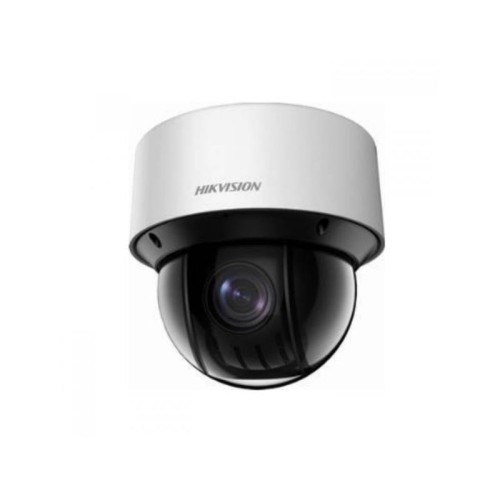

Hikvision DS-2DE4A225IW-DE 2 MP 25x Network IR PTZ  Camera adopts 1/2.8" progressive scan CMOS chip. With  the 25x optical zoom lens, the camera offers more details  over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, forests,  roads, railways, airports, ports, squares, parks, scenic  spots, stations and large venues, etc.    Key Features  * 1/2.8" progressive scan CMOS  * Up to 1920 x 1080 resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 25x optical zoom, 16x digital zoom  * 120 dB WDR, 3D DNR, HLC, BLC  * Up to 50 m IR distance  * 12 VDC & PoE+ (802.3 at, class4)  * Support H.265+/H.265 video compression      DS-2DE4A225IW-DE  2 MP 25x Network IR PTZ Camera      Specification  Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  AGC Auto/Manual  Shutter Time 1/1 s ...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Hikvision DS-2DE4A225IW-DE 2 MP 25x Network IR PTZ
Camera adopts 1/2.8" progressive scan CMOS chip. With
the 25x optical zoom lens, the camera offers more details
over expansive areas.
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, forests,
roads, railways, airports, ports, squares, parks, scenic
spots, stations and large venues, etc.

Key Features
* 1/2.8" progressive scan CMOS
* Up to 1920 x 1080 resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 25x optical zoom, 16x digital zoom
* 120 dB WDR, 3D DNR, HLC, BLC
* Up to 50 m IR distance
* 12 VDC & PoE+ (802.3 at, class4)
* Support H.265+/H.265 video compression


DS-2DE4A225IW-DE
2 MP 25x Network IR PTZ Camera


Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
AGC Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 4.8 mm to 120 mm, 25x optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele)
Vertical field of view: 34.4° to 1.4° (wide-tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance 50 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s
Movement Range (Tilt) From -5° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile


H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC Support
Smart Feature
Basic Event Detection Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception
Smart Detection
Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing
Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage
Detection, Object Removal Detection
Smart Tracking Manual Tracking, Auto Tracking, Event Tracking
ROI encoding Main stream, sub-stream, and third stream respectively support four fixed areas.
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS,
SMB/ CIPS), ANR
Alarm Linkage
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users.
3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Audio Interface 1-ch audio input and 1-ch audio output
Alarm Interface 2-ch alarm input and 2-ch alarm input
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
General
Power 12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC12, PC, PC+ABS, SUS304, POM
Dimensions Φ 169 mm x 161 mm (Φ 6.65" x 6.34")
Weight Approx. 2.45 kg (5.40 lb)


Order Model
DS-2DE4A225IW, 12 VDC & PoE+ (802.3 at, class4)

Dimensions
Unit: mm
1
6
1
Φ
1
6
9




0505111071214
Accessories

DS-1605ZJ Wall Mounting Bracket

DS-1671ZJ-SD11 In-ceiling Mounting Bracket

DS-1280ZJ-SD11 Junction Box

DS-1691ZJ-(M)(L) Pendant Mounting Bracket

DS-1100KI Network Keyboard

DS-1005KI USB Joy-stick
