DS-2DE4425IW-DE(T5)

Availability: >1000

Price: €857.93 857.93

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 327000240

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

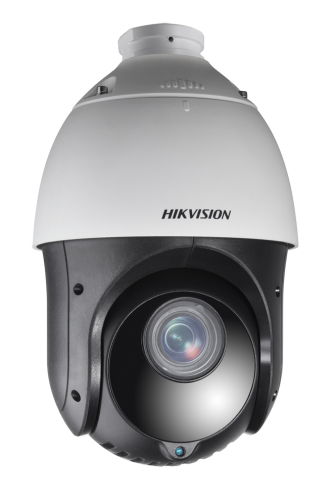

DS-2DE4425IW-DE(T5)
4 MP 25x Network IR Speed Dome

Hikvision DS-2DE4425IW-DE(T5) 4MP 25x Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
25x optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 Focuses on human and vehicle targets classification based
on deep learning
 Support face capture. Up to 5 faces captured at the same
time
 1/2.8" progressive scan CMOS
 High quality imaging with 4 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 25x optical zoom and 16x digital zoom provide close up
views over expansive areas
 Expansive night view with up to 100 m IR distance
 Support H.265+/H.265 video compression

 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 2400.0 m (7874.0 ft) 952.4 m (3124.7 ft) 480.0 m (1574.8 ft) 240.0 m (787.4 ft)

 Specification
Camera
Image Sensor 1/2.8" progressive scan CMOS
Max. Resolution 2560 x 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Lens
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.6 s
Focal Length 4.8 mm to 120 mm
FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 100 m
PTZ
Proportional Pan Yes
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, auxiliary output
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
3D Positioning Yes
PTZ Status Display Yes

Preset Freezing Yes
Video
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Region of Interest (ROI) 8 fixed regions for each stream
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,
security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11
Image Parameters Switch Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR > 52 dB
Defog Digital defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR

Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 1 input, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection, audio exception
detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best
face picture of the face
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
PoE (802.3at)
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes
Material ADC12
Dimensions Ø 164.5 mm x 290 mm (Ø 6.48" x 11.42")
Weight Approx. 2 kg (4.41 lb.)
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage
transient protection

 Dimension

 Accessory
 Included
DS-1618ZJ

 Available Model
DS-2DE4425IW-DE(T5)

 Optional
DS-1604ZJ
DS-1604ZJ-BOX-
CORNER
DS-1604ZJ-pole DS-1661ZJ DS-1667ZJ

DS-1604ZJ-box DS-1619ZJ DS-1673ZJ
DS-1604ZJ-BOX-
POLE
DS-1005KI

DS-1604ZJ-corner DS-1662ZJ DS-1682ZJ DS-1663ZJ DS-1660ZJ

DS-1681ZJ DS-1671ZJ-SDM9 DS-1100KI DS-1602ZJ
