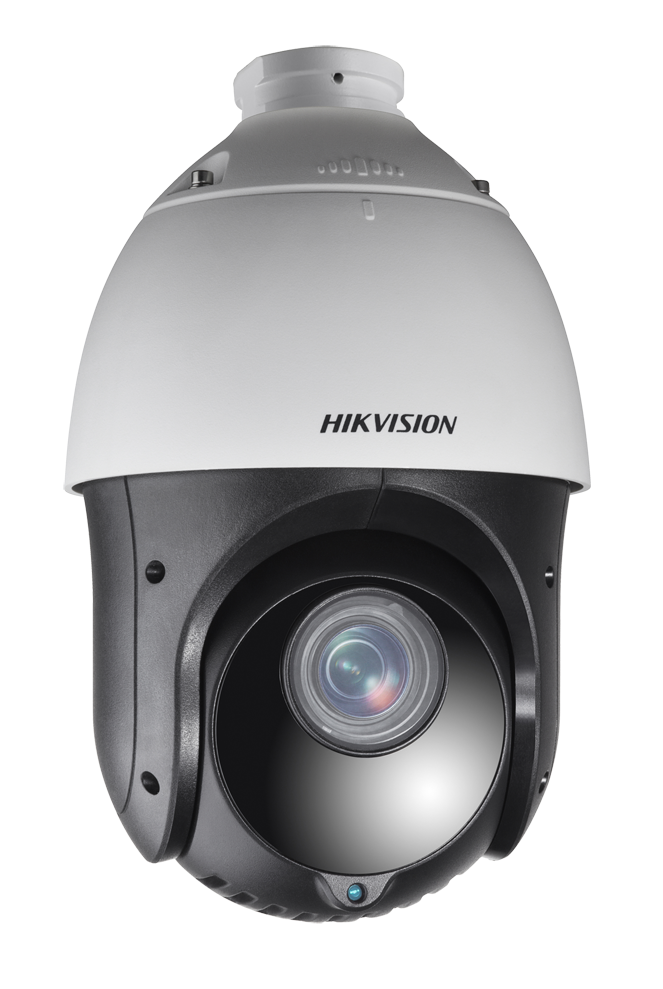

DS-2DE4215IW-DE(E) with brackets

Availability: 0
Price: €535.32 535.32
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301315541

Description

Hikvision DS-2DE4215IW-DE (E) 2MP 15x Network IR  Speed Dome adopts 1/2.8" progressive scan CMOS chip.  With the 15x optical zoom lens, the camera offers more  details over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, roads,  railways, airports, squares, parks, scenic spots, and  venues, etc.    Key Features  * 1/2.8" progressive scan CMOS  * Up to 1920 x 1080@30fps resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 15x optical zoom, 16x digital zoom  * WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional  Exposure, Regional Focus  * Up to 100 m IR distance  * Support H.265+/H.265 video compression        DS-2DE4215IW-DE (E)  2MP 15x Network IR Speed Dome      Specification  Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  Gain Auto/Manual  Shutter Time  50Hz: 1/...

Warning! Product withdrawn from production!

Replacement product: DS-2DE4215IW-DE(S6)

Replacement product code: 327000144

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Hikvision DS-2DE4215IW-DE (E) 2MP 15x Network IR
Speed Dome adopts 1/2.8" progressive scan CMOS chip.
With the 15x optical zoom lens, the camera offers more
details over expansive areas.
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, roads,
railways, airports, squares, parks, scenic spots, and
venues, etc.

Key Features
* 1/2.8" progressive scan CMOS
* Up to 1920 x 1080@30fps resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 15x optical zoom, 16x digital zoom
* WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional
Exposure, Regional Focus
* Up to 100 m IR distance
* Support H.265+/H.265 video compression



DS-2DE4215IW-DE (E)
2MP 15x Network IR Speed Dome


Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 5 mm to 75 mm, 15x optical zoom
Zoom Speed Approx. 2.3 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 53.8° to 4° (Wide-Tele)
Vertical field of view: 31.9° to 2.3° (Wide-Tele)
Diagonal field of view: 60.4° to 4.6° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F2.8
IR
IR Distance 100 m
Smart IR Yes
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 80°/s,
Preset speed: 80°/s
Movement Range (Tilt) From -15° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan
3D Positioning Yes
PTZ Position Display Yes
Preset Freezing Yes
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile


H.264+ Yes
H.265 Type Baseline Profile/Main Profile/High Profile
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
SVC Yes
Smart Features
Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting
Detection, Object Removal Detection, Unattended Baggage Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/
CIFS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE (802.3 at, class4)
General
Language (Web Browser
Access )
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC, 2.0A, PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4
Max.18 W, including Max.7W for IR
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC 12, PC, PC+10% GF
Dimensions Φ 164.5 mm x 290 mm (Φ 6.48" x 11.42")
Weight Approx. 2 kg (4.41 lb)



DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish
persons or objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 960.0 m (3149.6 ft) 381.0 m (1249.8 ft) 192.0 m (629.9 ft) 96.0 m (315.0 ft)

Available Model
DS-2DE4215IW-DE (E), 12 VDC & PoE+ (802.3 at, class4)

Dimensions
Unit: mm
2
9
0
Φ164.5










Accessory
Included:


ASW0081-1220002W
Power adapter
DS-1618ZJ
Wall Mount
Optional:




DS-1602ZJ
Wall Mount
DS-1604ZJ-box
Wall mount with junction
box
DS-1604ZJ
Wall mount with junction box
DS-1604ZJ-BOX-CORNER
Wall Mount with junction box




DS-1604ZJ-pole
Vertical Pole Mount
DS-1604ZJ-BOX-POLE
Vertical Pole Mount with
junction box
DS-1604ZJ-corner
Corner Mount
DS-1661ZJ
Pendant Mount



DS-1662ZJ
Pendant Mount
DS-1663ZJ
Ceiling Mount
DS-1671ZJ-SDM9
In-ceiling mount
DS-1681ZJ
Installation Adapter

DS-1619ZJ
Gooseneck Mount
DS-1660ZJ
Parapet wall mount
LAS60-57CN-RJ45
Hi-PoE midspan
DS-1005KI
USB Joy-stick


DS-1100KI
Network Keyboard
