DS-2DE4215IW-DE

Availability: 0

Price: €500.30 500.30

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 301311682

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

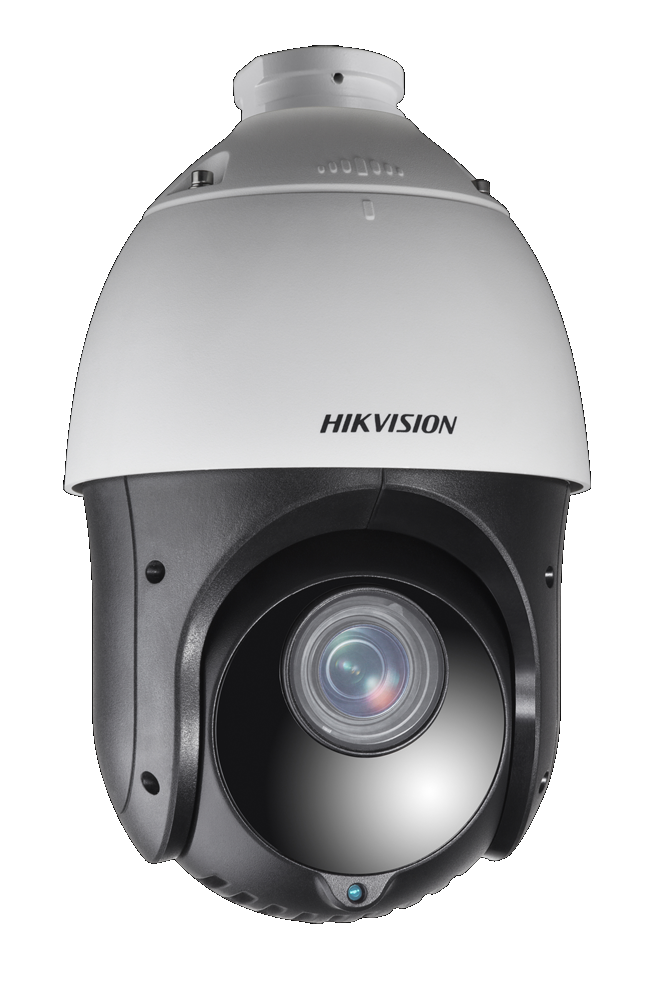

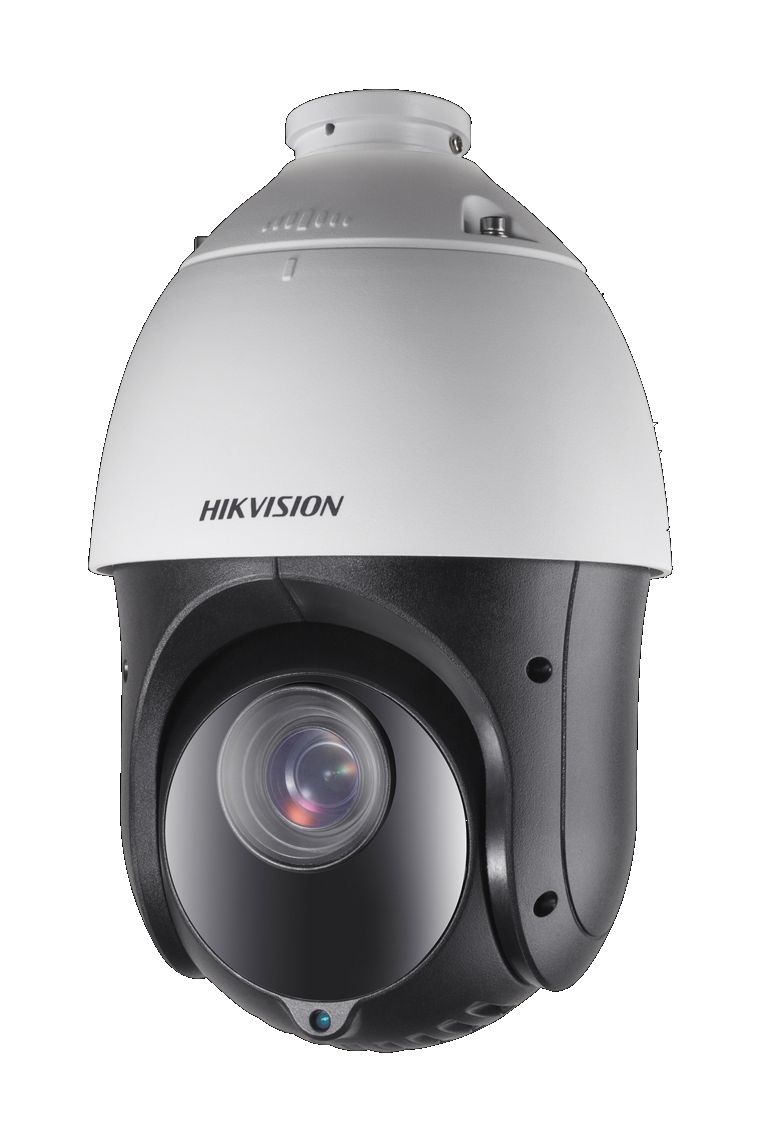

Hikvision DS -2DE4215IW-DE 2MP 15x Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With
the 15x optical zoom lens, the camera offers more details
over expansive areas .
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, forests,
roads, railways, airports, ports, squares, parks, scenic
spots, stations and large venues, etc.
Key Features
* 1/2.8 " progressive scan CMOS
*Up to 1920 x 108 0 resolution
*Min. illumination:
Color: 0.0 05 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 15 x optical zoom, 16 x digital zoom
* 120dB WDR, 3D DNR, HLC, BLC , Smart IR
*Up to 10 0 m IR distance
* 12 VDC & PoE+ (802.3at, class4)
*Support H.265+/H.265 video compression
DS -2DE4215IW-DE
2MP 15 x Network IR Speed Dome

Specification
Camera Module 2MP 15x Network IR Speed Dome
Image Sensor 1/2.8 " progressive scan CMOS
Min. Illumination
Color: 0. 005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance Auto/ Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
AGC Auto/ Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto /Semi-automatic/Manual
WDR 120dB
Lens
Focal Length 5 mm to 75 mm, 15 x optical
Zoom Speed Approx. 2.4 s (optical lens, wide -tele)
FOV
Horizontal field of view: 53.8 ° to 4.0° (wide-tele)
Vertical field of view: 31.9° to 2.3° (wide-tele)
Diagonal field of view: 60.4° to 4.6°(wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance Up to 10 0 m
IR Intensity Automatically adjusted, depending on the zoom ratio
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
Movement Range (Tilt) From -15° to 90 ° (Auto-flip)
Tilt Speed
Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan /Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan /Dome Reboot/Dome Adjust
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile

H.265+ Support
Video Bitrate 32 kbps to 16384 kbps
Smart Feature
Basic Event Detection Motion Detection, Video Tampering Detection, Exception Detection
Smart Detection
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance
Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal
Detection
ROI encoding Main stream, sub -stream and third stream respectively support two fixed areas.
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 3 52 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 3 52 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288 )
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
SVC Support
Network
Network Storage Built -in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS,
SMB/ CIPS), ANR
Alarm Linkage
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP , UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open -ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users .
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption ; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS -4200 , iVMS-4500 , iVMS-5200, Hik-Connect
Web Browser IE 8+, Firefox 30+, Safari 8.0+ web browser
Interface
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
General
Power
12 VDC and PoE+ (802.3at, class4)
Max.: 18 W (IR light 6 W Max.)
Working Environment
Working Temperature : -30°C to 65°C ( -22°F to 1 49°F)
Working Humidity: ≤ 90%
Protection Level IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC12, PC, Glass, SECC
Dimensions Φ 164.5 mm x 29 0 mm (Φ 6.48" x 11.42")
Weight Approx. 2 kg (4.41 lb)

Order Model
DS-2DE4215IW-DE, 12 VDC & PoE+ (802.3at, class4)
Dimensions Unit: mm

290

164.5

Accessories
DS-1602ZJ Wall Mounting Bracket
DS-1602ZJ-corner Corner Mounting Bracket
DS-1602ZJ-pole Vertical Pole Mounting Bracket
DS-1602ZJ-box Wall Mounting Bracket with Junction Box
DS-1100KI Network Keyboard
DS-1005KI USB Joy-stick
