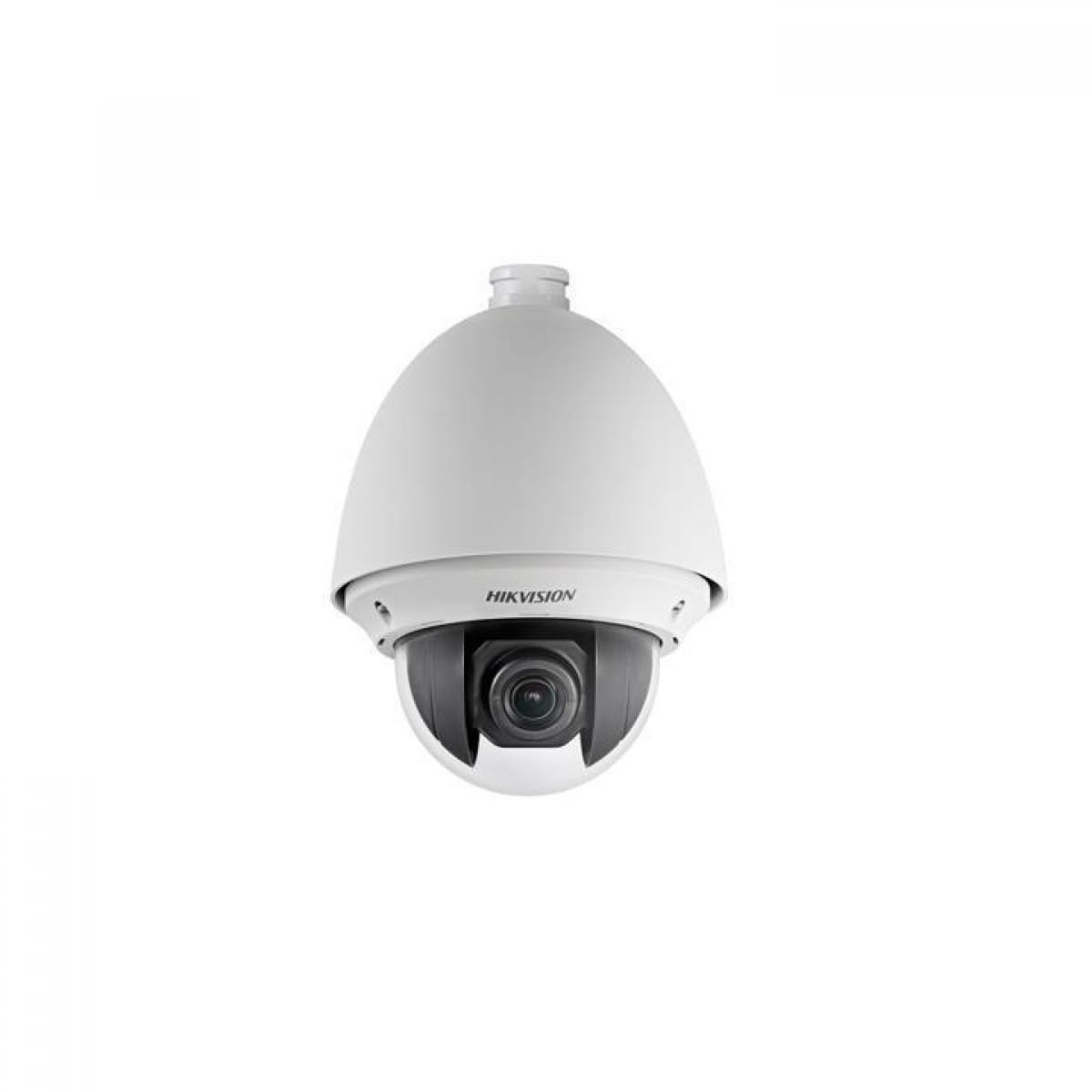

DS-2DE4120-AE

www.hikvision.com    DS-2DE4120/4220-AE(3)  Key features  Dimensions  Accessories  Available models    Compact-sized  1/2MP Network PTZ Dome Camera    ICR  Intelligen t  P ositioning    BL C  WDR  DIGITA L    MAS K    CMOS    1/3”  • 1/3’’(1/2.8’’) Progressive Scan CMOS  • 720/1080P HD real-time resolution  • 20X Optical zoom, 16X digital zoom  • True Day/Night, D WDR , 3D DNR  • Privacy Mask, Alarm input/output  • 3D intelligent positioning  • PoE+/ PoE / 24VAC power supply  • Compact-sized design    DS-2DE4120-AE, 24VAC/PoE+, outdoor  DS-2DE4120-AE3, 24VAC/PoE, indoor  DS-2DE4220-AE, 24VAC/PoE+, outdoor  DS-2DE4220-AE3, 24VAC/PoE, indoor     DS-2DE4120-AE(3) DS-2DE4220-AE(3)  Camera  Image sensor  1/3" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS  Effecti...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

DS-2DE4120/4220-AE(3)
Key features
Dimensions
Accessories
Available models

Compact-sized
1/2MP Network PTZ Dome Camera

ICR
Intelligen t
P ositioning

BL C
WDR
DIGITA L

MAS K

CMOS

1/3”
• 1/3’’(1/2.8’’) Progressive Scan CMOS
• 720/1080P HD real-time resolution
• 20X Optical zoom, 16X digital zoom
• True Day/Night, D WDR , 3D DNR
• Privacy Mask, Alarm input/output
• 3D intelligent positioning
• PoE+/ PoE / 24VAC power supply
• Compact-sized design

DS-2DE4120-AE, 24VAC/PoE+, outdoor
DS-2DE4120-AE3, 24VAC/PoE, indoor
DS-2DE4220-AE, 24VAC/PoE+, outdoor
DS-2DE4220-AE3, 24VAC/PoE, indoor

DS-2DE4120-AE(3) DS-2DE4220-AE(3)
Camera
Image sensor
1/3" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Effective pixel
1280(H) x 720(V) 1920(H) x1080(V)
Max. Image Resolution
Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On) B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On)
Color : 0.02 lux (F1.6, 1/1 sec, 50 IRE, AGC On) B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On)
White balance
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC
Auto / Manual
S / N ratio ≥ 52dB
Digital noise reduction 3D DNR
Backlight compensation BLC
Wide dynamic range Digital WDR
Defog Support
Shutter speed 1/1~ 1/10,000s
Day & Night IR Cut Filter
Digital zoom 16X
Focus mode
Auto / Semiautomatic / Manual
Privacy Mask
2 privacy masks programmable
Lens
Focal length
4.7-94mm, 20x
Zoom speed
Approx.3s (Optical Wide-Tele)
Angle of view
58.3 ~ 3.2 degree (Wide-Tele)
Min. working distance
10 ~1000mm (Wide-Tele)
Aperture range
F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt range Pan: 360° endless; Tilt: -2° ~ 90°(Auto Flip)
Pan / Tiltr speed
Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s
Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
Proportional zoom
Rotation speed can be adjusted automatically according to zoom multiples
Number of preset
number of preset: 300
Patrol
8 patrols, up to 32 presets per patrol
Park action
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Power-off memory
Support
PTZ position display
On / off
Preset freezing
Support
Scheduled Task
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
reboot/Self-test action
Local Video and Audio
Alarm input / output
1 input (0-5V DC) / 1 relay output, alarm response actions configurable
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Audio Exception Detection, Dynamic
analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm Actions: Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email
linkage
Audio input / putput
1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ, ±10% / 1 output, Line level, impedance: 600Ω
Network
Ethernet
10Base-T / 100Base-TX, RJ45 connector
Max. image resolution
1280x720 1920x1080
Sub Stream
50Hz:25fps(704x576), 25fps(352x288), 25fps(320x240)
60Hz:30fps(704x480), 30fps(352x240), 30fps(320x240)
Frame rate
50Hz: 25 fps (1280x720); 60Hz: 30 fps (1280x720)
50Hz: 25 fps (1920x1080), 25 fps (1280x720);
60Hz: 30 fps (1920x1080), 30 fps (1280x720)
Image compression
H.264/MJPEG
SVC
Support
ROI encoding
Support 2 areas with adjustable levels
Audio compression
G.711/G.722/G.726/MP2L2
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous live view
Up to 20
Streams
Dual streams
SD memory card
Built-in micro SD card slot, up to 64GB, support edge recording
User/Host Level
Up to 32 users, 3 Levels: Administrator, Operator, User
Security measures
User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming
Open-ended API, support Onvif, PSIA, CGI and Genetec, Support ezviz cloud P2P
Web Browser
IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language
General
Power
-AE: 24VAC/PoE+(802.3at), Max18W; -AE3: 24VAC/PoE(802.3af), Max 12W
Working temperature
-AE: -30°C ~ 65°C (-22°F ~ 149°F) ; -AE3: -10°C ~ 50°C (14°F ~ 122°F)
Humidity
90% or less
Protection level
IP66 (outdoor),TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact Protection Outdoor
IEC60068-275Eh, 5J; EN50102, up to IK08; Indoor: IEC60068-275Eh, 5J; EN50102, up to IK08
Dimensions
Φ 179.4x239.5mm ( Φ 7.06”x9.43”)(outdoor); Φ 165x179.5mm( Φ 6.50”x7.07”) (indoor inceiling)
Φ 165x168mm( Φ 6.50”x6.61”) (indoor in-ceiling)
Weight
Approx. 2Kg (4.41Ibs)
Mount option
(for outdoor model)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
NOTE: Indoor models support ceiling and in-ceiling mount.

DS-1602ZJ-Box DS-1619ZJDS-1602ZJ-CornerDS-1602ZJ DS-1602ZJ-Pole
