DS-2DE3A404IW-DE/W(S6)

Availability: 0
Price: €449.30 449.30
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 327000553

Description

DS-2DE3A404IW-DE/W(S6)  4 MP 4 x IR Wi-Fi Network PTZ Camera                      Hikvision DS-2DE3A404IW-DE/W(S6) 4MP 4 x IR Wi-Fi  Network PTZ Camera can be widely used in multiple indoor  and outdoor scenes, such as the corridor, office, convenience  store, and restaurant, etc.     High quality imaging with 4 MP resolution   Excellent low-light performance via  powered-by-DarkFighter technology   Clear imaging against strong back lighting due to 120 dB  WDR technology   Pan and tilt ability enables camera to monitor zones of  interest   4 x optical zoom allows for closer viewing of subjects in  expansive areas   Up to 50 m IR range ensures safety at night   Wi-Fi connection and easy installation   Support audio visual alarm             DORI  The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or  objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:  2015.    DORI Detect Observe Recognize Identify  Definition 25 px/m 63 px/m 125 px/m 250 px/m  Distance...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

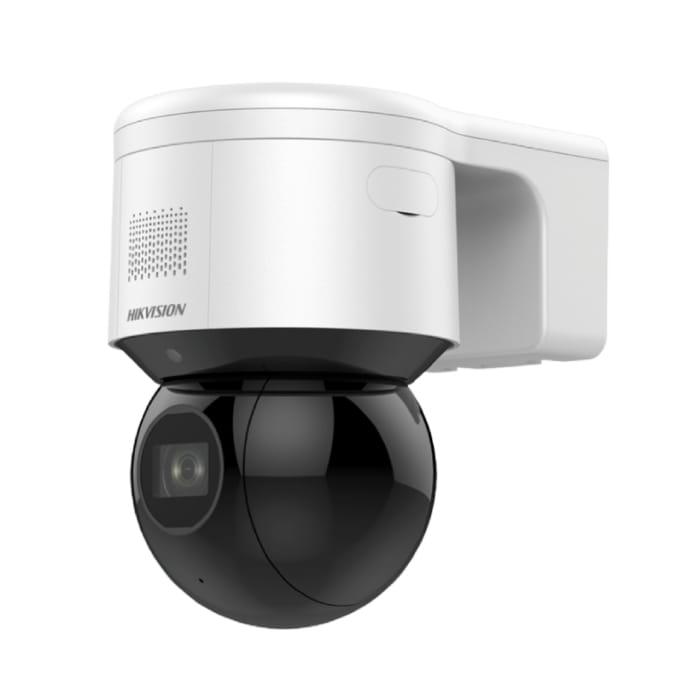

DS-2DE3A404IW-DE/W(S6)
4 MP 4 x IR Wi-Fi Network PTZ Camera










Hikvision DS-2DE3A404IW-DE/W(S6) 4MP 4 x IR Wi-Fi
Network PTZ Camera can be widely used in multiple indoor
and outdoor scenes, such as the corridor, office, convenience
store, and restaurant, etc.

 High quality imaging with 4 MP resolution
 Excellent low-light performance via
powered-by-DarkFighter technology
 Clear imaging against strong back lighting due to 120 dB
WDR technology
 Pan and tilt ability enables camera to monitor zones of
interest
 4 x optical zoom allows for closer viewing of subjects in
expansive areas
 Up to 50 m IR range ensures safety at night
 Wi-Fi connection and easy installation
 Support audio visual alarm





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 180 m (590.5 ft) 71.4 m (234.2 ft) 36 m (118.1 ft) 18 m (59.1 ft)

 Specification
Camera
Image Sensor 1/2.8" progressive scan CMOS
Max. Resolution 2560 x 1440
Min. Illumination Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
Shutter Speed 1 to 1/30,000 s
Day & Night IR cut filter
Zoom 4 x optical, 16 x digital
Lens
Focal Length 2.8 to 12 mm
FOV
Horizontal field of view: 96.7° to 31.6° (wide-tele)
Vertical field of view: 51.1° to 17.7° (wide-tele)
Diagonal field of view: 115.1° to 36.3° (wide-tele)
Focus Auto, semi-auto, manual
Aperture Max. F1.5
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Illuminator
Supplement Light Range IR distance: up to 50 m, white light distance: up to 6 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan) 0° to 350°
Movement Range (Tilt) 0° to 90°
Pan Speed Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
Tilt Speed Configurable, from 0.1°/s to 50°/s. Preset speed: 50°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Park Action Preset, patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output
Power-off Memory Yes
Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)



Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile/main profile/high profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP,
RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface, ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels, administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, watermark, IP address
filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control
timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral, Hik-Connect
Web Browser IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
Wireless (Wi-Fi)
Encryption Mode 64/128-bit WEP,WPA/WPA2,WPS
Wi-Fi Protocols IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40MHz
Modulation
802.11b: CCK, DQPSK, DBPSK
802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK
802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Transfer Rate
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: mcs0 - msc7
Wireless Range Up to 150 m (The performance varies based on actual environment)
Antenna Built-in 2 antennas
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Wide Dynamic Range (WDR) 120 dB
Defog Digital defog



Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1
output (line out), line level, output impedance: 600 Ω
Alarm 1 input, 1 output
Power Output 12 VDC, max. 60 mA
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Preset, patrol scan, upload to FTP/memory card/NAS, notify surveillance center, send
email, audible warning, flashing alarm
General
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
Dimension 179.3 mm x 120.5 mm x 182 mm (7.06" x 4.74" x 7.17")
Weight Approx. 1.125 kg (2.48 lb.)
Material ADC12 + PC
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Approval
Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage
transient protection



 Available Model
DS-2DE3A404IW-DE/W(S6)



 Dimension
