DS-2DE3A404IW-DE(2.8-12mm)

Availability: 0
Price: €391.72 391.72
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301314788

Description

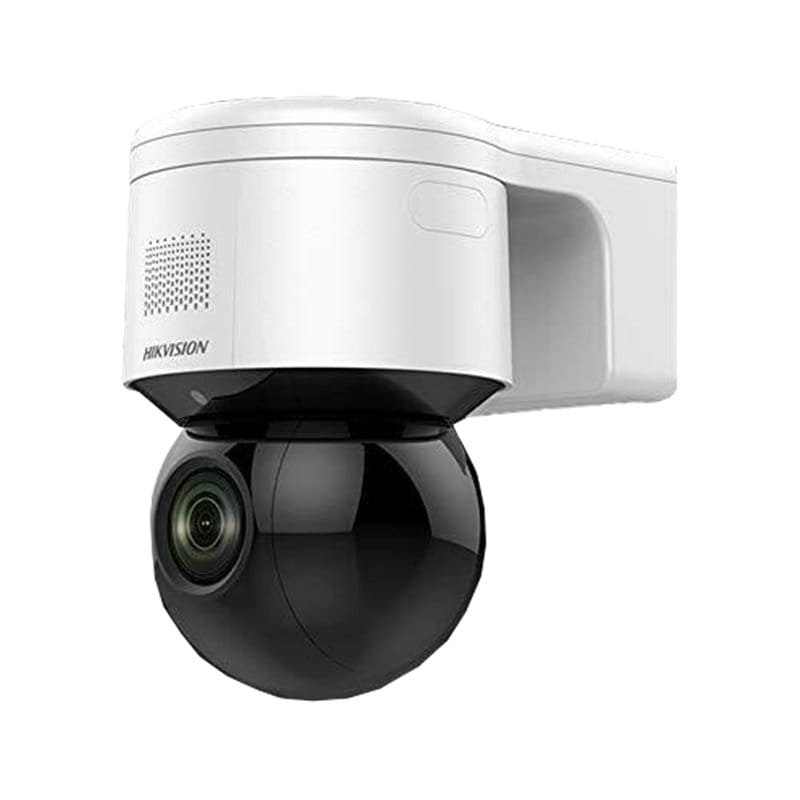

DS-2DE3A404IW-DE/W (2.8-12 mm)  4 MP 4x IR Wi-Fi Network PTZ Camera                          Hikvision DS-2DE3A404IW-DE/W (2.8-12 mm) 4MP 4x IR  Wi-Fi Network PTZ Cameracan be widely used in  multiple indoor and outdoor scenes, such as the  corridor, office, convenience store, and restaurant, etc.  ● Up to 2560 x 1440 resolution  ● Min. illumination  Color: 0.005 Lux @(F1.5, AGC ON)  B/W: 0.001 Lux @(F1.5, AGC ON)  0 Lux with IR  ● Up to 50 m IR distance  ● H.265+/H.265 video compression  ● Built-in speaker and microphone for audible warning  and two-way audio  ● Wi-Fi  ● White light flashing when alarm triggers  ● Remote control on mobile phone via Hik-Connect  ● Extendable on-board storage (microSD), up to 256 GB  ● IP66  ● Easy installation                              Specifications    Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium La...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2DE3A404IW-DE/W (2.8-12 mm)
4 MP 4x IR Wi-Fi Network PTZ Camera












Hikvision DS-2DE3A404IW-DE/W (2.8-12 mm) 4MP 4x IR
Wi-Fi Network PTZ Cameracan be widely used in
multiple indoor and outdoor scenes, such as the
corridor, office, convenience store, and restaurant, etc.
● Up to 2560 x 1440 resolution
● Min. illumination
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.001 Lux @(F1.5, AGC ON)
0 Lux with IR
● Up to 50 m IR distance
● H.265+/H.265 video compression
● Built-in speaker and microphone for audible warning
and two-way audio
● Wi-Fi
● White light flashing when alarm triggers
● Remote control on mobile phone via Hik-Connect
● Extendable on-board storage (microSD), up to 256 GB
● IP66
● Easy installation














Specifications

Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time 1 to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16 x
Privacy Mask 24 programmable privacy masks, mask color configurable
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 2.8 to 12 mm, 4 x optical zoom
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 96.7° to 31.6° (wide-tele)
Vertical field of view: 51.1° to 17.7° (wide-tele)
Diagonal field of view: 115.1° to 36.3° (wide-tele)
Working Distance 10 to 1500 mm (wide-tele)
Aperture Range F1.5 to F2.7
Illuminator
IR Distance Up to 50 m
Smart IR Yes
PTZ
Movement Range (Pan) 0° to 350°
Pan Speed Configurable, from 0.1°/s to 60°/s. Preset speed: 65°/s
Movement Range (Tilt) 0° to 90°
Tilt Speed Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
Proportional Zoom Yes
Presets 300
Patrol Scan No
Pattern No
Power-off Memory Yes
Park Action Preset
3D Positioning Yes
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task Preset/Dome Reboot/Dome Adjust/Aux output



Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline profile/main profile/high profile
H.264+ Yes
H.265 Type Main profile
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
SVC Yes
Smart Features
Basic Event
Motion detection, video tampering detection, alarm input, alarm output,
exception (HDD full, HDD error, illegal login, network disconnected, IP address
conflict)
Smart Event
Face detection, intrusion detection, line crossing detection, region entrance
detection, region exiting detection, object removal detection, unattended
baggage detection, audio exception detection
Smart Record ANR (Automatic Network Replenishment), dual-VCA
Region of Interest
Main stream, sub-stream, and third stream respectively support 4 fixed areas,
and dynamic face tracking.
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement BLC, HLC, defog, 3D DNR, regional exposure, regional focus
Network
Network Storage
Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS,
SMB/ CIFS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, and ISAPI, support HIKVISION SDK and Third-Party
Management Platform, support Hik-Connect
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels, administrator, operator and user
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering



Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8-11,Chrome 31+, Firefox 30+, Microsoft Edge 41.16299.726.0
Wi-Fi
Wireless Standards IEEE 802.11 b/g/n
Frequency Range 2.4 to 2.483GHz
Channel Bandwidth 20/40MHz
Protocols DSSS/OFDM
Security 64/128-bit WEP,WPA/WPA2,WPS
Transfer Rates 11b:11Mbps; 11g:54Mbps; 11n:150Mbps
Wireless Range 50 m
Interface
Audio
1-ch audio input (line in/mic in), 2.0 to 2.4Vp-p, 1k Ohm ± 10%, 1 built-in
microphone
1-ch audio output (line out and built-in speaker), line level, impedance: 600Ω, 1
built-in speaker
Alarm 1-ch alarm input/1-ch alarm output
Network Interface 1 RJ45 10 M/100 M Ethernet interface
General
Power
12 VDC, PoE 802.3at, max. 19 W (including max. 2.4 W for IR, 1.2 W for white light
flashing)
Working Environment Temperature: -30°C to 60°C (-22°F to 140°F), humidity: ≤ 90%, no condensing
Protection Level
IP66 standard, 6000V lightning protection, surge protection and voltage transient
protection
Material ADC12 + PC
Dimension 179.3 mm x 120.5 mm x 182 mm (7.06" x 4.74" x 7.16")
Weight Approx. 1.125 kg (2.48 lb.)

DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish
persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria
given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 130.9 m (429.5 ft) 51.9 m (170.3 ft) 26.2 m (86 ft) 13.1 m (43 ft)

Available Models
DS-2DE3A404IW-DE/W (2.8-12mm)



Dimensions


Accessory
Included




Power adapter
