DS-2DE3A400BW-DE/W(F1)(S5)(B)
Description
DS-2DE3A400BW-DE(F1)(S5) 4 MP Network PTZ Camera Hikvision DS-2DE3A400BW-DE(F1)(S5) 4MP Network PTZ Camera can be widely used in multiple indoor and outdoor scenes, such as malls, stores, parks, factories, scenic areas, entrances and exits. Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm Face capture: face tracking and grading; automatic selection of best shot; up to 5 faces detected and captured at the same time Linked audible and visual alarm. Built-in microphone and speaker Up to 2560 x 1440 @ 30 fps Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light 24/7 colorful imaging with low power consumption. Up to 30 m white light distance 120 dB WDR, 3D DNR, HLC, EIS IP66; PoE Specification Camera Module Image Sensor 1/1.8" progressive scan CMOS Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light Shutter Speed 1/1 to 1/30,000 s Day & Night 24/7 colorful imaging Day/Night Switch day, night, auto, scheduled-switch ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2DE3A400BW-DE(F1)(S5)

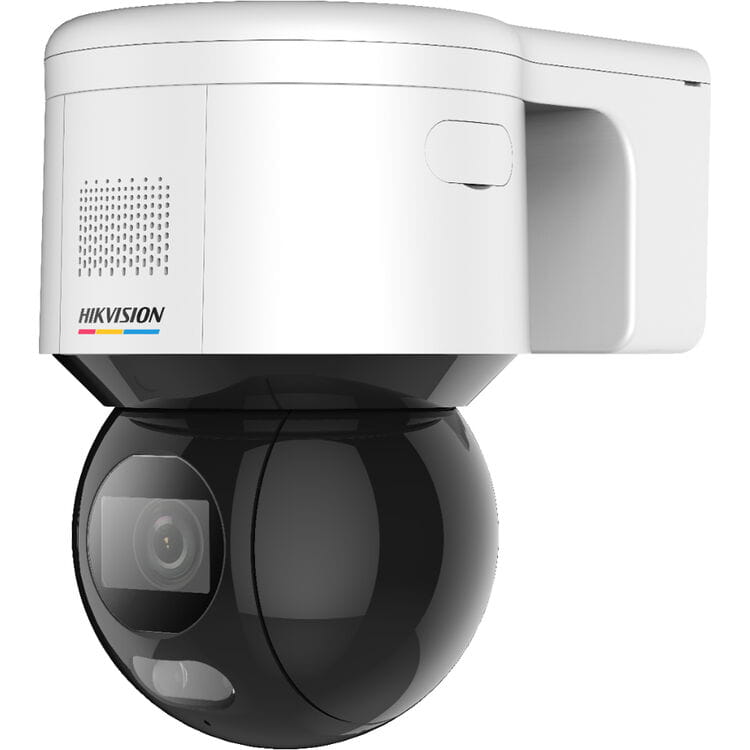

4 MP Network PTZ Camera
Hikvision DS-2DE3A400BW-DE(F1)(S5) 4MP Network PTZ
Camera can be widely used in multiple indoor and outdoor
scenes, such as malls, stores, parks, factories, scenic areas,
entrances and exits.
Accurate human and vehicle target classification and
alarm, and face capture based on deep learning hardware
and algorithm
Face capture: face tracking and grading; automatic
selection of best shot; up to 5 faces detected and captured
at the same time
Linked audible and visual alarm. Built-in microphone and
speaker
Up to 2560 x 1440 @ 30 fps
Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0
Lux with white light
24/7 colorful imaging with low power consumption. Up to
30 m white light distance
120 dB WDR, 3D DNR, HLC, EIS
IP66; PoE
Specification
Camera Module
Image Sensor 1/1.8" progressive scan CMOS
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Shutter Speed 1/1 to 1/30,000 s
Day & Night 24/7 colorful imaging
Day/Night Switch day, night, auto, scheduled-switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Image Settings saturation, brightness, contrast, sharpness
Image Parameters Switch yes
White Balance
Locked WB/Auto/Manual/ATW (Auto-tracking White
Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Digital Zoom 16 x
Privacy Mask up to 24 masks (8 masks for each scene)
SNR >52 dB
General Function mirror, password protection, watermark, IP address filter
Lens
Focal Length 4 mm
FOV
Horizontal field of view: 88.7°
Vertical field of view: 46.5°
Diagonal field of view: 105.0°
Aperture F1.0
PTZ
Movement Range (Pan) 350°
Movement Range (Tilt) 0° to 90°
Pan Speed pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Zoom yes
Presets 300
Power-off Memory yes
Park Action preset, patrol scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task preset, patrol scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 2560 x 1440
Stream Type main stream, sub-stream, third stream
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression H.265, H.264, MJPEG
SVC yes
ROI yes
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Environment Noise Filtering yes
Smart Features
Face Capture yes
Basic Event motion detection, alarm input, alarm output, video tampering alarm, exception
Smart Event
intrusion detection, line crossing detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection, audio exception
detection
Smart Record ANR, Dual-VCA
Alarm Linkage
preset, memory card video recording, alarm output, sending email, notify surveillance
center, upload to FTP, audile warning, white light flashing
Smart Encoding H.265+, H.264+, low bit rate, ROI, SVC
Warning and Alert white light and audible warning
Network
Network Storage NAS (NFS, SMB/ CIFS)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G,
Profile T), ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Interface
Power Output 12 VDC; < 60 mA
Communication Interface 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm ± 10%
Audio Output 1 built-in speaker, 1 audio output, line level, impedance: 600 Ω
RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Illuminator
Supplement Light Type White Light
Supplement Light Range 30 m
General
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 14 W (including max. 4 W for white light)
Operating Conditions humidity: ≤ 90%, temperature: -30°C to 65°C (-22°F to 149°F)
Reset yes
Demist yes
Dimensions 179.3 mm x 120 mm x 182 mm (7.06" x 4.72" x 7.71")
Weight Approx. 1.125 kg (2.48 lb.)
Approval
Protection IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension
Accessory
Included
Power adapter
Available Model
DS-2DE3A400BW-DE(F1) (S5)
