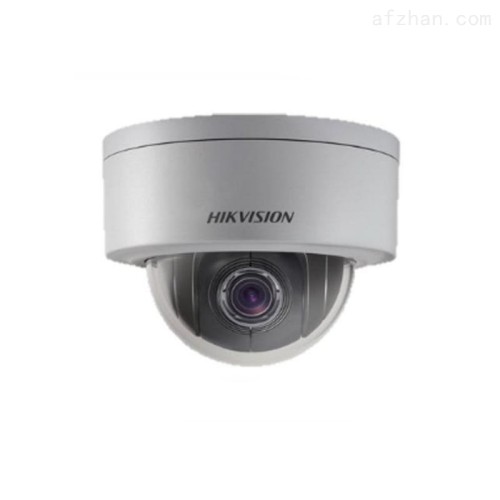

DS-2DE3404W-DE(T5)
Description
DS-2DE3404W-DE(T5) 4 MP Network Mini PTZ Dome Camera This Micro-designed 3" PTZ Mini Dome Camera shows the easiest installation, adjustment and maintenance that you have ever seen. It is a fantastic and practical camera for outdoor. In addition, DS-2DE3404W-DE(T5) support 4 x optical zoom technology, PoE & 12 VDC power supply. Embedded with 1/2.8" progressive scan CMOS chip makes 120 dB WDR and 4 MP real-time resolution possible. With the pan/tilt and 4 x optical zoom Day/Night lens, the camera offers more details in the outdoor environments. Hikvision DS-2DE3404W-DE(T5) Mini PTZ Dome Cameras also features a wide range of functions, including intrusion detection, line crossing detection, motion detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs. High quality imaging with 4 MP resolution Clear imaging against strong back lighting due to 120 dB WDR technology Pan and tilt ability enables camera to monitor zones of interest 4 x optical zoom allows for closer viewing ...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2DE3404W-DE(T5)
4 MP Network Mini PTZ Dome Camera
This Micro-designed 3" PTZ Mini Dome Camera shows the
easiest installation, adjustment and maintenance that you
have ever seen. It is a fantastic and practical camera for
outdoor. In addition, DS-2DE3404W-DE(T5) support 4 x
optical zoom technology, PoE & 12 VDC power supply.
Embedded with 1/2.8" progressive scan CMOS chip makes
120 dB WDR and 4 MP real-time resolution possible. With
the pan/tilt and 4 x optical zoom Day/Night lens, the camera
offers more details in the outdoor environments.
Hikvision DS-2DE3404W-DE(T5) Mini PTZ Dome Cameras also
features a wide range of functions, including intrusion
detection, line crossing detection, motion detection and
audio exception, benefitting users with great improvement
on security efficiency, more importantly, with key
events/objects being recorded for further forensic needs.
High quality imaging with 4 MP resolution
Clear imaging against strong back lighting due to 120 dB
WDR technology
Pan and tilt ability enables camera to monitor zones of
interest
4 x optical zoom allows for closer viewing of subjects in
expansive areas
Water and dust resistant (IP66) and vandal resistant (IK10)
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 130.9 m (429.5 ft) 51.9 m (170.4 ft) 26.2 m (85.9 ft) 13.1 m (42.9 ft)
Specification
Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
Shutter Speed 1/1 to 1/30,000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 4 x optical, 16 x digital
Max. Resolution 2560 x 1440
Lens
Focus Auto, semi-auto, manual
Focal Length 2.8 to 12 mm
Zoom Speed Approx. 2.0 s
FOV
Horizontal field of view: 93.8° to 31.7° (wide-tele)
Vertical field of view: 50.9° to 17.9° (wide-tele)
Diagonal field of view: 110.3° to 36.1° (wide-tele)
Aperture Max. F1.5
PTZ
Movement Range (Pan) 350°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Power-off Memory Yes
Park Action Preset, patrol scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output
Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128
kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
Client iVMS-4200, Hik-Connect, HikCentral
Web Browser Firefox 52+, Safari 11+, Chrome 57+, IE11
Day/Night Switch Day, night, auto, scheduled-switch
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB WDR
Defog Digital defog
Regional Exposure Yes
Regional Focus Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Image Parameters Switch Yes
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR ≥ 52 dB
Interface
Alarm 1 input, 1 output
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, alarm input and output, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan)
General
General Function Privacy mask, mirror, password protection, watermark, IP address filter
Power
12 VDC, PoE (802.3af)
Max. 10 W
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Material ADC12, PC
Dimension Ø140.7 mm x 107.2 mm (Ø5.54" x 4.22")
Weight Approx. 950 g (2.09 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Protection
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 4000V lightning protection, surge
protection and voltage transient protection
Dimension
Available Model
DS-2DE3404W-DE(T5)
Accessory
Optional
DS-1280ZJ-PT6 DS-1227ZJ-PT6 DS-1273-ZJ-PT6
