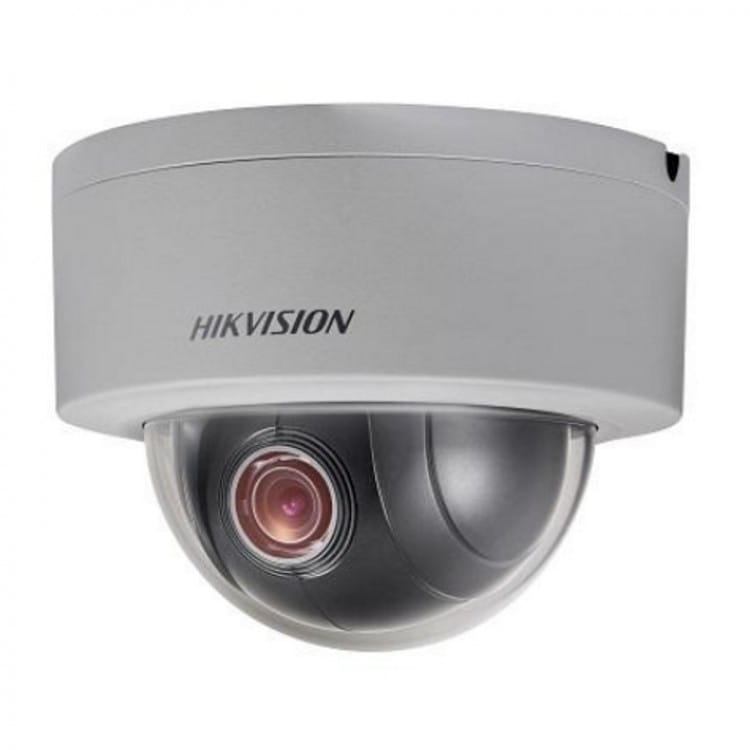

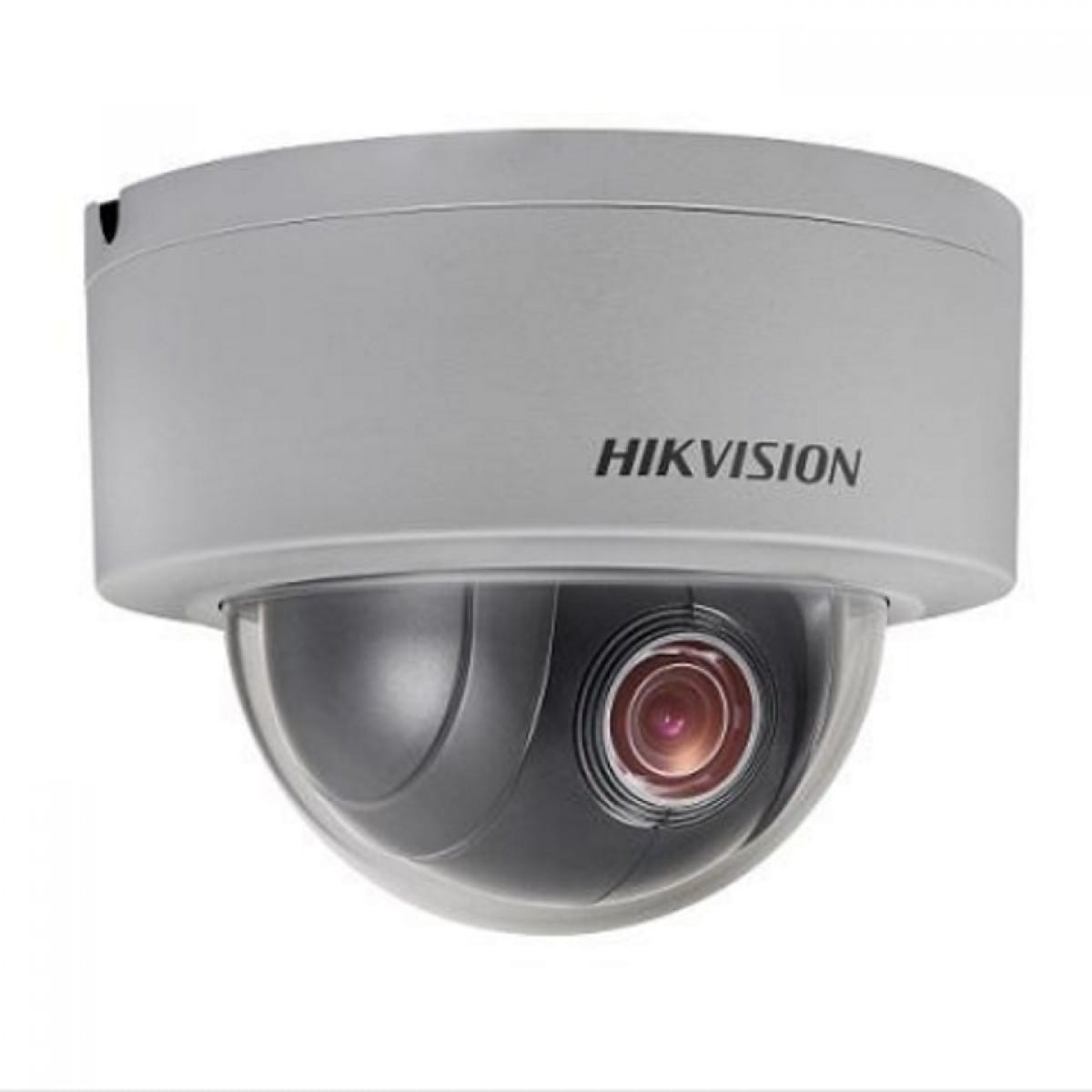

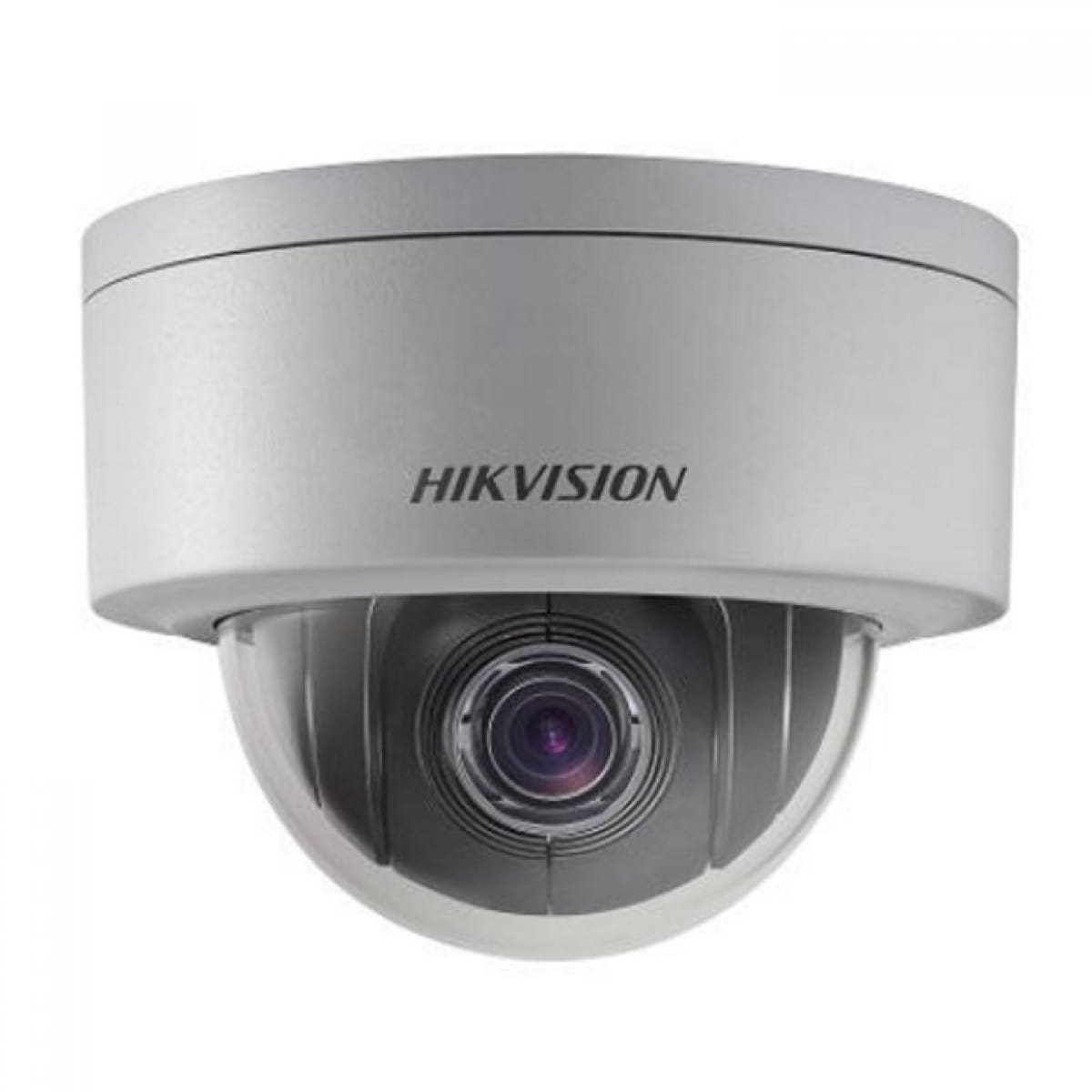

DS-2DE3204W-DE

Key Features    * 1/3“ Progressive Scan CMOS  * 1920 x 1080  * 4X Optical Zoom  * DWDR  * Support IP66/IK10  * PoE(802.3af)  * Support RS485  * Support EZVIZ cloud P2P  * Support plug & play    This Micro-designed 3’’ PTZ Mini Dome Camera shows the  easiest installation, adjustment and maintenance that you  have ever seen. It is a fantastic and practical camera for  outdoor. In addition, DS-2DE3204W-DE support 4X zoom  technology, EZVIZ Cloud P2P function and PoE&12VDC power  supply. Embedded with 1/3’’ progressive scan CMOS chip  makes DWDR and 2MP real-time resolution possible. With  the pan/tilt and 4X zoom Day/Night lens, the camera offers  more details in the outdoor environments.  Hikvision DS-2DE3204W-DE Mini PTZ Dome Cameras also  features a wide range of functions, including intrusion  detection, line crossing detection, motion detection and  audio exception, benefitting users with great improvement on  security efficiency, more importantly, with key events /  objects being recorded for further forensic needs.          DS-2DE3204W-DE  2MP Network Mini PTZ Dome Camera          Basic function   High performance CMOS, up to 19...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features

* 1/3“ Progressive Scan CMOS
* 1920 x 1080
* 4X Optical Zoom
* DWDR
* Support IP66/IK10
* PoE(802.3af)
* Support RS485
* Support EZVIZ cloud P2P
* Support plug & play

This Micro-designed 3’’ PTZ Mini Dome Camera shows the
easiest installation, adjustment and maintenance that you
have ever seen. It is a fantastic and practical camera for
outdoor. In addition, DS-2DE3204W-DE support 4X zoom
technology, EZVIZ Cloud P2P function and PoE&12VDC power
supply. Embedded with 1/3’’ progressive scan CMOS chip
makes DWDR and 2MP real-time resolution possible. With
the pan/tilt and 4X zoom Day/Night lens, the camera offers
more details in the outdoor environments.
Hikvision DS-2DE3204W-DE Mini PTZ Dome Cameras also
features a wide range of functions, including intrusion
detection, line crossing detection, motion detection and
audio exception, benefitting users with great improvement on
security efficiency, more importantly, with key events /
objects being recorded for further forensic needs.




DS-2DE3204W-DE
2MP Network Mini PTZ Dome Camera




Basic function
 High performance CMOS, up to 1920 x 1080@30fps resolution
 ±0.1° Preset Accuracy
 ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical
Security Interoperability Alliance), to ensure greater interoperability between different platforms
and compatibility
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Support RS485
 Support IP66/IK10
 PoE(802.3af)
 Support EZVIZ cloud P2P
Functions
 Detections: intrusion detection, line crossing detection, audio exception detection, motion
detection
 Recording: edge recording, support smart search in smart NVR
 Support low bit rate, ROI
Camera function
 Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
 Min. Illumination: 0.05Lux@(F1.6,AGC ON)(Color), 0.01Lux@(F1.6,AGC ON)(B/W)
 Support 8 privacy masks
PTZ functions
 0-350° pan range and 0°-90° tilt range
 60°/s Pan Preset Speed and 50°/s Tilt Preset Speed
 0.1°-60°/s Manual Pan Speed and 0.1°-50°/s Manual Tilt Speed
 300 presets programmable
 8 patrols, up to 32 presets per patrol
Network function
 Built-in Web server
 Micro SD card local storage, up to 128GB
 Support up to 8 NAS storage; Transmit the videos from SD card to the NAS after network
resumed
 HTTPS encryption and IEEE 802.1x port-based network access control
 Support dual-stream;H.264/MJPEG video compression; Basic and advanced video configuration;
Real time video at 1080P
 Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,
PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS
 1 audio input and 1 audio output
 1 alarm input and 1 alarm output, alarm linkage support preset, recording, realay output, upload
center, etc.
Function Description


Specifications
Model DS-2DE3204-DE
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
Max. Image
Resolution
1920(H) x 1080(V)
Focal Length 2.8~12mm, 4x
Digital Zoom 16X
Zoom Speed Approx.1s(Wide~Tele)
Angle of View 105~33.5 degree (Wide~Tele)
Aperture Range F1.6 ~F2.7
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
S / N Ratio ≥ 52dB
Shutter Time 1/1~1/10,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable
Enhancement 3D DNR, HLC/BLC
Pan and Tilt
Range Pan: 0~350°; Tilt: 0°~90°
Speed
Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Manual Speed: 0.1°~50°/s, Tilt Preset Speed: 50°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Park Action Preset/Patrol
Scheduled Task Preset / Reboot / Patrol /Self test / Aux output
Features
Detection Intrusion detection, line crossing detection, audio exception detection, motion detection
ROI encoding Support 4 areas with adjustable levels
Alarm
Alarm I/O 1/1





Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Audio Exception Detection, Dynamic
analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Input/Output
Audio Input 1 built-in microphone; 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 output, Line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream
50Hz:25fps(1920x1080), 25fps(1280x960), 25fps(1280x720)
60Hz:30fps(1920x1080), 30fps(1280x960), 30fps(1280x720)
Sub Stream
50Hz:25fps(704x576), 25fps(640x576), 25fps(320x288)
60Hz:30fps(704x480), 30fps(640x480), 30fps(320x240)
Image Compression H.264/H.265/MJPEG
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP,
UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live
View Up to 20 users
Mini SD Memory Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application
programming
Open-ended API, support Onvif, PSIA, CGI and Genetec
Support EZVIZ cloud P2P
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power POE&12 VDC, Max. 8W
Working Temperature -30°C ~ 65°C (-22°F ~ 149°F)
Humidity 90% or less
Protection Level IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ140.7x107.2mm
Weight (approx.) 950g
Mount Option
Wall mount: DS-1273ZJ -140; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1273ZJ -140; Wall
Mount: DS-1292ZJ; Wall Mount: DS-1293ZJ























Order Models
DS-2DE3204W-DE
Accessories Dimensions

DS-1273ZJ -140
Wall Mount

1227ZJ-PT6
In-ceiling Mount
DS-1280ZJ-DM21
Junction box

DS-1100KI
Network Keyboard
DS-1005KI
USB Joy-stick
