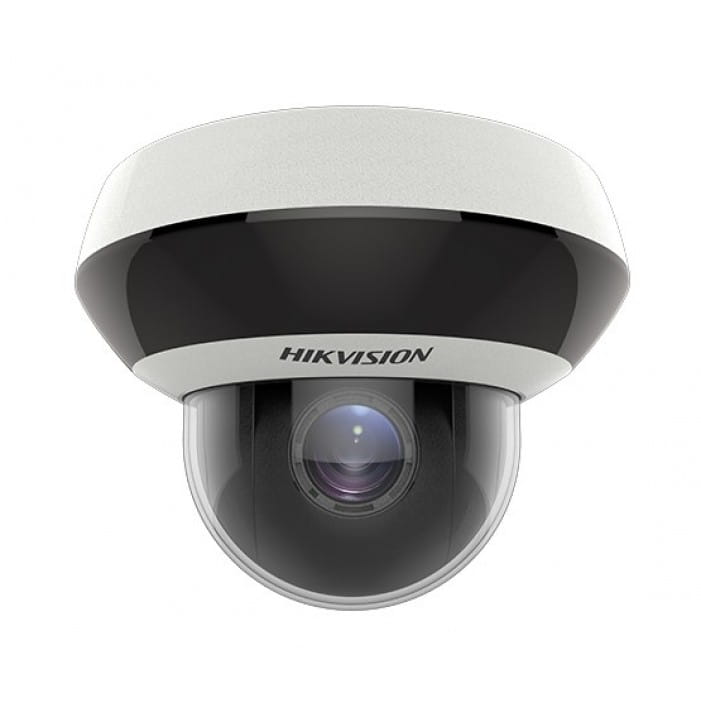

DS-2DE2A204IW-DE3/W(2.8-12mm)(C)

Availability: 0
Price: €312.87 312.87
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301315130

Description

Hikvision DS-2DE2A204IW-DE3(2.8-12MM) 2MP 4x IR  Network PTZ Camera can be widely used in multiple  scenes, such as the corridor, office, convenience store,  and restaurant, etc.  Key Features  * 1/3" progressive scan CMOS  * Up to 1920 x 1080@30fps resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 4x optical zoom, 16x digital zoom  * 120 dB WDR, 3D DNR, HLC, EIS, Regional  Exposure, Regional Focus  * 12 VDC & PoE  * Up to 20 m IR distance  * IK10, IP66  * Support H.265+/H.265 video compression        DS-2DE2A204IW-DE3(2.8-12MM)  2MP 4x IR Network PTZ Camera      Specification  Camera Module  Image Sensor 1/3" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  Gain Auto/Manual  Shutter Time  50Hz: 1/1 s to 1/30,000 s  60Hz: 1/1 s to 1/30,000 s  Day & Night IR Cut Filter  Digital Zoom 16x  Privacy Mask 24 programmable privacy masks  Focus Mode Auto/Semi-automatic/Manual  W...

Warning! Product withdrawn from production!

Replacement product: DS-2DE2A204IW-DE3/W(C0)(S6)

Replacement product code: 327000212

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Hikvision DS-2DE2A204IW-DE3(2.8-12MM) 2MP 4x IR
Network PTZ Camera can be widely used in multiple
scenes, such as the corridor, office, convenience store,
and restaurant, etc.
Key Features
* 1/3" progressive scan CMOS
* Up to 1920 x 1080@30fps resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 4x optical zoom, 16x digital zoom
* 120 dB WDR, 3D DNR, HLC, EIS, Regional
Exposure, Regional Focus
* 12 VDC & PoE
* Up to 20 m IR distance
* IK10, IP66
* Support H.265+/H.265 video compression



DS-2DE2A204IW-DE3(2.8-12MM)
2MP 4x IR Network PTZ Camera


Specification
Camera Module
Image Sensor 1/3" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 2.8 mm to 12 mm, 4x optical zoom
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 109° to 34° (Wide-Tele)
Vertical field of view: 57° to 19° (Wide-Tele)
Diagonal field of view: 135° to 39° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F2.7
PTZ
Movement Range (Pan) 0° to 330°
Pan Speed
Configurable, from 0.1°/s to 100°/s,
Preset speed: 100°/s
Movement Range (Tilt) From 0° to 90°
Tilt Speed Configurable, from 0.1°/s to 100°/s
Preset Speed: 100°/s
Proportional Zoom Support
Presets 300
Power-off Memory Support
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC Support
Smart Features
Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection,
Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio
Exception Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA


ROI Main stream, sub-stream, and third stream respectively support two fixed areas.
IR
IR Distance 20 m
Smart IR Support
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream 50Hz: 25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform, support Hik-Connect
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE
General
Power
12 VDC & PoE
Max.: 12 W (Max. 3.9 W for IR)
Working Temperature -20°C to 60°C (-4°F to 140°F)
Working Humidity ≤ 90%
Protection Level
IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage
Transient Protection
Material Aluminum alloy, PC, PC+ABS
Dimensions Φ 130.7 mm x 101.7 mm (Φ 5.15" x 4.00")
Weight Approx. 0.53 kg (1.17 lb)





0505151080328
Available Model
DS-2DE2A204IW-DE3(2.8-12MM), 12 VDC & PoE

Dimensions


Accessories

DS-1294ZJ-PT Wall Mounting Bracket
