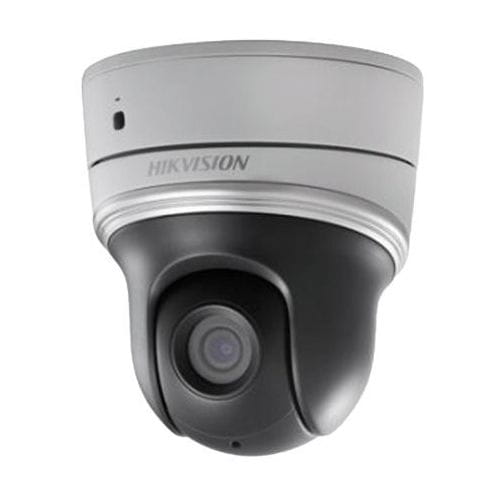

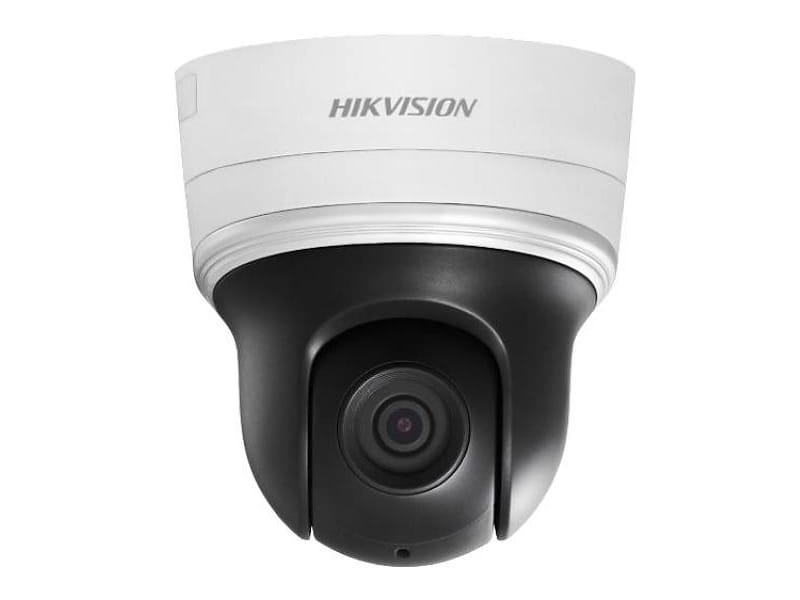

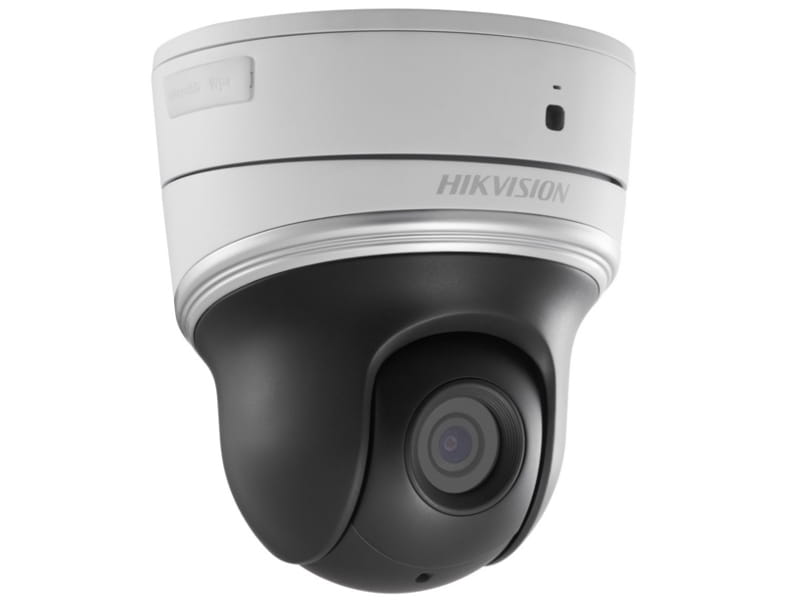

DS-2DE2103I-DE3/W

Availability: 0

Price: €286.74 286.74

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 301306778

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2DE2103I/2202I-DE3
1MP/2MP Network IR Mini PTZ Dome Camera

Key Features
This Micro-designed PTZ IR Mini Dome Camera shows the
easiest installation, adjustment, maintenance and 20m IR that
you have ever seen. It is a fantastic and practical camera for
indoor area such as the café, hotels, office lobbies and small
shops etc. In addition, DS-2DE2103I/2202I-DE3 support 2X/3X
zoom technology, EZVIZ Cloud P2P function and 12VDC power
supply. Embedded with 1/3’’ progressive scan CMOS chip
makes DWDR and 1.3MP/2MP real-time resolution possible.
With the pan/tilt, 2X/3X zoom Day/Night lens and the 20m IR
lights, the camera offers more details in the indoor
environments.
Hikvision DS-2DE2103I/2202I-DE3 Mini PTZ Dome Cameras
also features a wide range of functions, including intrusion
detection, line crossing detection and motion detection,
benefitting users with great improvement on security
efficiency, more importantly, with key events / objects being
recorded for further forensic needs.
* 1/3" Progressive Scan CMOS
* 1280 x 720/1920 x 1080
* 2X/3X Zoom
* DWDR
* 3D intelligent positioning function
* PoE(802.3af)
* Support EZVIZ cloud P2P
* Up to 20m IR distance

Basic function
 High performance CMOS, up to 1280 x 720/1920 x 1080@30fps resolution
 ±0.1° Preset Accuracy
 ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical
Security Interoperability Alliance), to ensure greater interoperability between different platforms
and compatibility
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Support EZVIZ cloud P2P
 Up to 20m IR distance
Functions
 Detections: intrusion detection, line crossing detection, audio exception detection, motion
detection
 Recording: edge recording, support smart search in smart NVR
 Support low bit rate, ROI
Camera function
 Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
 Min. Illumination: 0.05Lux@(F2.0,AGC ON)(Color), 0.01Lux@(F2.0,AGC ON)(B/W)
 Support 8 privacy masks
PTZ functions
 0-350° pan range and 0°-90° tilt range
 60°/s Pan Preset Speed and 50°/s Tilt Preset Speed
 0.1°-60°/s Manual Pan Speed and 0.1°-50°/s Manual Tilt Speed
 300 presets programmable
 8 patrols, up to 32 presets per patrol
Network function
 Built-in Web server
 Support up to 8 NAS storage;
 HTTPS encryption and IEEE 802.1x port-based network access control
 Support dual-stream;H.264/MJPEG video compression; Basic and advanced video configuration;
Real time video at 720P/1080P
 Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,
PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS

Function Description

Specifications
Model DS-2DE2103I-DE3 DS-2DE2202I-DE3
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination F2.0, AGC On: Color:0.05 lux, B/W : 0.01 lux, 0 lux with IR
Max. Image Resolution 1280(H) x 720(V) 1920(H) x 1080(V)
Focal Length 3.6~11mm, 3x 3.6~8.6mm, 2x
Digital Zoom 16X
Zoom Speed Approx.1s(Wide~Tele)
Angle of View 77~37 degree (Wide~Tele) 77~50 degree (Wide~Tele)
Aperture Range F2.0
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
S / N Ratio ≥ 52dB
Shutter Time 1/1~1/10,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable
Enhancement 3D DNR, HLC/BLC
Pan and Tilt
Range Pan: 0~350°; Tilt: 0°~90°
Speed
Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Manual Speed: 0.1°~50°/s, Tilt Preset Speed: 50°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Park Action Preset
Scheduled Task Preset /Reboot / Patrol/ Self test/ Aux output
Features
Detection Intrusion detection, line crossing detection, audio exception, motion detection
ROI encoding Support 4 areas with adjustable levels
Infrared
IR Distance 20m
IR Intensity Automatically adjusted, depending on the zoom ratio
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream 50Hz: 25 fps (1280x720);
60Hz: 30 fps (1280x720)
50Hz: 25 fps (1920x1080);
60Hz: 30 fps (1920x1080)
Sub Stream
50Hz:25fps(704x576), 25fps(352x288), 25fps(320x240)
60Hz:30fps(704x480), 30fps(352x240), 30fps(320x240)
Image Compression H.264/ MJPEG
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP,
ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering

System Integration
Application
programming
Open-ended API, support Onvif, PSIA, CGI and Genetec ; Support EZVIZ cloud P2P
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power POE&12 VDC, Max. 9W(IR: 3W Max.)
Working Temperature -10℃~50℃(14℉~122℉)(indoor dome )
Humidity 90% or less
Protection Level IP54, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ125x137.2mm
Weight (approx.) 650g
Mount Option Wall mount: DS-1294ZJ

Accessories

DS-1294ZJ DS-1100KI
Wall Mount Network Keyboard

DS-1005KI
USB Joy-stick

Dimension
Order Models
Order Models
DS-2DE2103I-DE3; DS-2DE2202I-DE3
