DS-2DE1C200IW-DE3(F1)(S7)

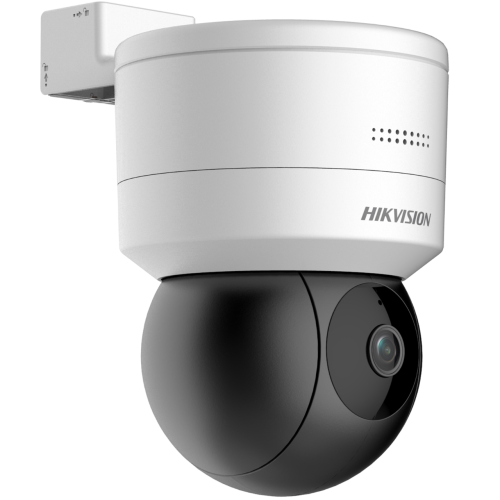

DS-2DE1C200IW-DE3(F1)(S7)  2 MP IR PT Network Camera                    Hikvision DS-2DE1C200IW-DE3(F1)(S7) 2 MP IR PT Network  Camera is ideal for indoor HD monitoring in small businesses  and offices and for close range monitoring in warehouses,  lobbies, server rooms, garages, etc.     High quality imaging with 2 MP resolution   Digital WDR, HLC, BLC, 3D DNR   Hik-Connect cloud service and APP for remote  management and views of devices   Good night-time performance with up to 15 m IR   Two-way audio with built-in microphone and speaker   Supports microSD/microSDHC/microSDXC card, up to 256  GB                 DORI  The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or  objects within its field of view.  It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.    DORI Detect Observe Recognize Identify  Definition 25 px/m 63 px/m 125 px/m 250 px/m  Distance (Tele) 50 m (164.0 ft.) 20 m (65.6 ft.) 10 m (32.8 ft.) 5 m (16.4 ft.)     Specification  Camera  Image Sensor 1/2.7" Prog...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2DE1C200IW-DE3(F1)(S7)
2 MP IR PT Network Camera









Hikvision DS-2DE1C200IW-DE3(F1)(S7) 2 MP IR PT Network
Camera is ideal for indoor HD monitoring in small businesses
and offices and for close range monitoring in warehouses,
lobbies, server rooms, garages, etc.

 High quality imaging with 2 MP resolution
 Digital WDR, HLC, BLC, 3D DNR
 Hik-Connect cloud service and APP for remote
management and views of devices
 Good night-time performance with up to 15 m IR
 Two-way audio with built-in microphone and speaker
 Supports microSD/microSDHC/microSDXC card, up to 256
GB







 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 50 m (164.0 ft.) 20 m (65.6 ft.) 10 m (32.8 ft.) 5 m (16.4 ft.)

 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 x 1080
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR
Lens
Focal Length 4 mm
FOV Horizontal FOV 90°, vertical FOV 48°, diagonal FOV 107°
Aperture F2.0
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 15 m
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 350°
Movement Range (Tilt) -15° to 100°
Pan Speed Up to 20°/s
Tilt Speed Up to 15°/s
Video
Main Stream 50 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream 50 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate
AAC: 16 Kbps, 32 Kbps, 64 Kbps; MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps,
80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps; G.711alaw: 64 Kbps
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x,QoS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP,
TCP/IP, UDP, DHCP, Bonjour



API
Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK,
Hik-Connect
Image Settings
Saturation, brightness, contrast, and sharpness adjustable by client software or web
browser
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker
Reset Yes
Event
Basic Event Motion detection
Alarm Linkage Upload to FTP/memory card, notify surveillance center, send email, audible warning
General
Power 5 VDC, Micro USB, Max. 5.5 W; PoE (802.3af)
Dimension 127 mm x 93.5 mm x 143 mm (5.00" x 3.68" x 5.63")
Weight Approx. 275 g (0.61 lb.)
Material Plastic
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection, watermark
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014)
Safety
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IP54


 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
 Available Model
DS-2DE1C200IW-DE3(F1)(S7)



protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Dimension
