DS-2CV2041G2-IDW(2.8mm)

Availability: 0

Price: €141.73 141.73

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 311311366

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS -2CV2041G 2-IDW

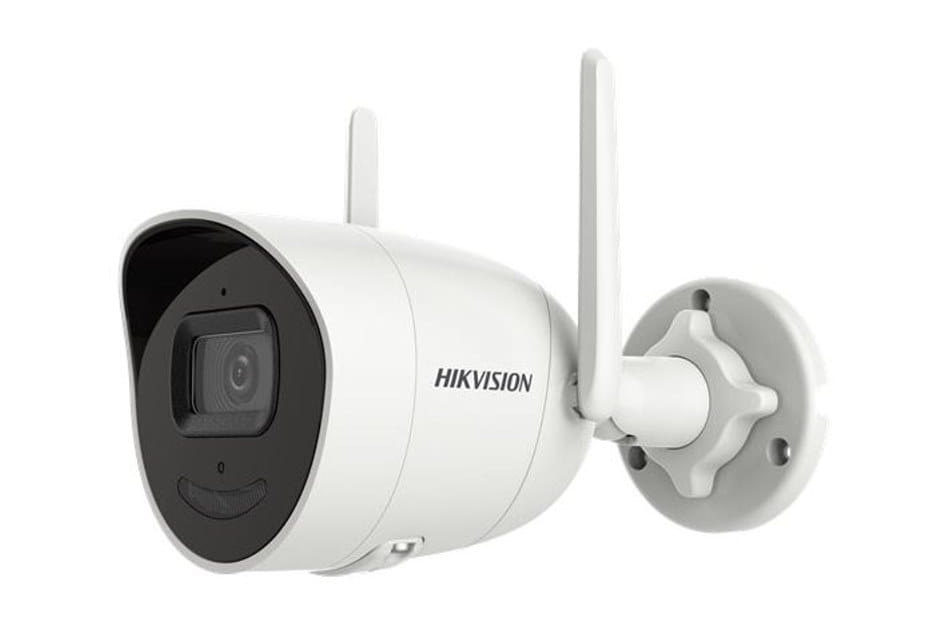

4 MP EXIR Fixed Bullet Wi -Fi Network Camera

Key Features

 1/2 .7" Progressive Scan CMOS
 Built -in dual antenna 2.4G Wi-Fi, up to 120m
range in open area
 Built -in microphone and speaker, support
two-way audio
 H.265, H.264
 EXIR, 30m IR range
 IP66
 Built -in micro SD/SDHC/SDXC card slot, up to 256
GB
 Mobile monitoring via Hik -Connect

Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3s to 1/100,000s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type & FOV
2.8 mm: horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°;
4 mm: horizontal FOV: 79°, vertical FOV 42°, diagonal FOV 93°
Aperture F1.6
Lens Mount M12
Illuminator
IR Range up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 360)
60Hz: 30fps (640 x 360)
Video Compression Main stream/Sub -stream: H.265/H.264
Video Bit Rate 32 Kbps to 8Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
Stream Type Main stream and sub -stream
Region of Interest (ROI) 1 fixed region for main stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 -160Kbps(MP2L2)

Network
Simultaneous Live View Up to 6 channels
API SDK
Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP,
QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
Up to 32 users;
3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP -TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic
and digest authentication for HTTP/HTTPS, WSSE and digest authentication for
ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS
1.2
Network Storage NAS(NFS,SMB/CIFS)
Client iVMS -4200, Hik-Connect
Web Browser
Plug -in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11;
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Day/Night Switch Day/Night/Auto/Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable
by client software or web browser
Interface
On -board Storage Built -in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, flashing alarm light output, audible alarm output, exception
(network disconnected, IP address conflict, illegal login, HDD full, HDD error)
General
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger
capture, audiable warning
Online Upgrade Yes
Firmware Version 5.5.110
Web Client Language English
General Function
One -key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP
address filter, flash log, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F)

Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply 12 VDC±25%, reverse polarity protection
Power Consumption and
Current
12 VDC, 0.6 A, 7.2 W
Power Interface Φ5.5 mm coaxial power plug
Material Front cover: metal, back cover: plastic
Camera Dimension 175.6x 73.0 x 89.1mm (6.91" x 2.87" x 3.51")
Package Dimension 260 x 125 x 125 mm (10.24" x 4.92" x 4.92")
Camera Weight 450 g (0.99 lb.)
With Package Weight 770 g (1.70 lb.)
Approval
EMC
FCC ID (FCC Part 15.247(BT or 2.4G));
IC ID (RSS-247(BT or 2.4G));
CE -RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN
300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300
328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN
61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);
ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300
328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN
61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN
60950-1:2005 + Am 1:2009 + Am 2:2013)
EMC
FCC ID (47 CFR Part 15, Subpart B);
CE -EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4:
2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950 -1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE -LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment
CE -RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No
1907/2006)
Reach Regulation (EC) No 1907/2006
Protection IP66 (IEC 60529 -2013)
Wi -Fi
Encryption Mode 64/128 -bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK

Wi -Fi Protocol IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40MHz
Modulation 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Wireless Range 120 m (The performance varies based on actual environment)

Available Model
DS -2CV2041G 2-IDW (2.8/4 mm)

Accessory

DS -1280ZJ-XS
Junction Box

Dimension
0505 9520191101
