DS-2CV1021G0-IDW1

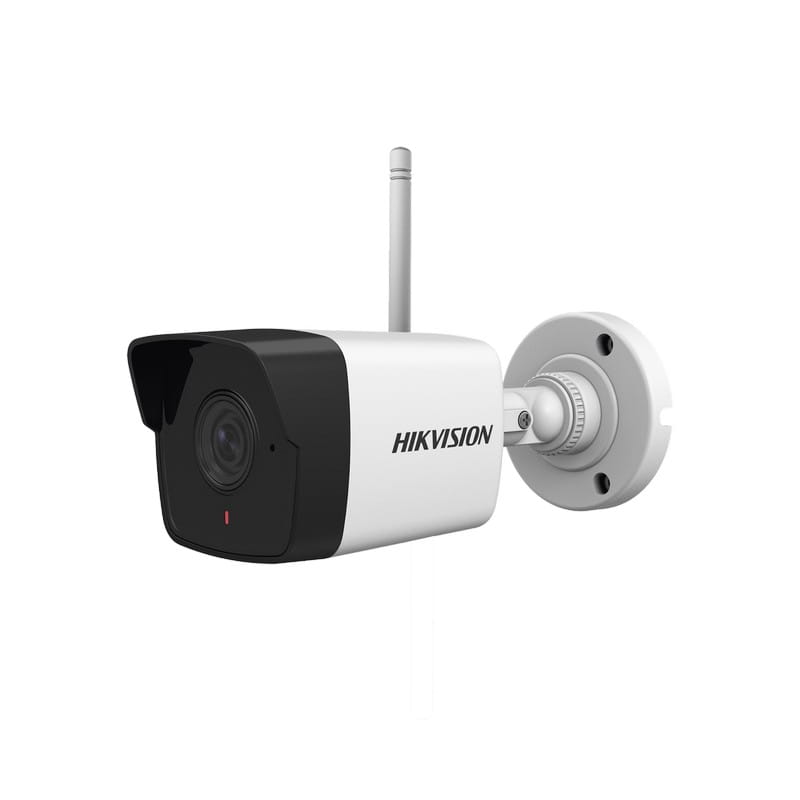

2 MP IR Fixed Bullet Wi-Fi Network Camera
Key Features
* 1/2.8" progressive scan CMOS * Up to 30 m IR range
* 1920 x 1280@25fps * Built-in micro SD/SDHC/SDXC slot, up to
128G
* 2.8/4 mm fixed lens * Built-in Wi-Fi
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux
@ (F2.0, AGC ON)
* Mobile monitoring via Hik-Connect
* 3D DNR * IP66







Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
3-Axis Adjustment Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
Lens
Focal length 2.8/4 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard

Video Compression
Main stream: H.264
Sub stream: H.264
H.264 Type Baseline Profile/Main Profile
H.264+ No
H.265 Type No
H.265+ No
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/16 to 64Kbps(AAC)/32 to 160Kbps(MP2L2)
Smart Feature-set
Region of Interest No
Max. Resolution 1920 x 1280
Main Stream 50Hz: 25fps (1920 x 1280, 1280 x 720, 704 x 576, 640 x 480)
Sub Stream 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Image Enhancement BLC, 3D DNR
Day/Night Switch Day, night, auto, scheduled
Network
Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error










Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6,
UDP, QoS, Bonjour
General Function Heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version V5.5.60
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 Built-in mic, mono sound
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Wi-Fi
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.4 GHz to 2.4835 GHz
Channel Bandwidth 20 MHz/40 MHz
Protocols
802.11b: CCK, DQPSK, DBPSK
802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
Wireless Range Up to 50 m (The performance varies based on actual environment)
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
General
Operating Conditions -30 °C to +60 °C (-22°F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
Power Consumption and
Current
12 VDC, 0.4 A, Max: 5 W
Ingress Protection IP66
Material Front cover: metal, back cover: plastic
Dimensions
Camera: 99 mm x 68 mm x 66 mm (3.9" x 2.7" x 2.6")
With package: 172 mm x 110 mm x 99 mm (6.8" x 4.3" x 3.9")
Weight
Camera: 272 g (0.6 lb.)
With package: 517 g (1.1 lb.)
Available Model:
DS-2CV1021G0-IDW1 (2.8/4 mm)




66
.2
mm
(2
.6
")
67.8 mm(2.7")
99.1 mm(3.9")
3-Ø 4.2 mm(0.2")
120
o
Ø 70 mm
(2.8")





DS-1280ZJ-XS
Junction Box

Dimensions

Accessory
