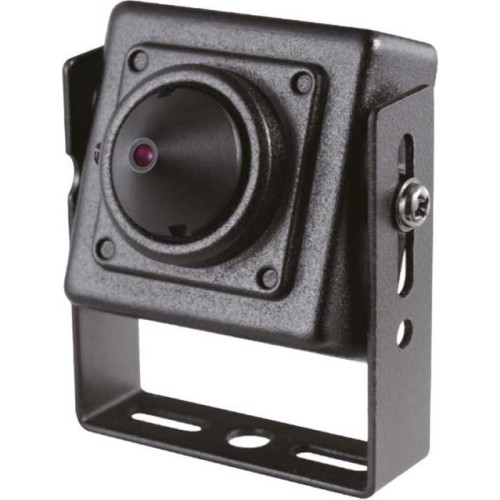

DS-2CS54D7T-PH(2.8mm)

Key Features  * 2.0 megapixel progressive scan CMOS  * HD analog output, up to 1080p resolution  * OSD menu, DNR, AGC  * 120 dB true WDR  * Applicable for ATM machine        DS-2CS54D7T-PH  1080p WDR Covert Camera                        Specifications          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Min. illumination 0.01 Lux@(F1.2, AGC ON)  Signal System PAL/NTSC  Shutter Time  PAL: 1/25 s to 1/50, 000 s              NTSC: 1/30 s to 1/50, 000 s  Effective Resolution 1920 (H) x 1080 (V)  Lens 3.7 mm @ F2.5 (2.8 mm Optional)  Field of View 69.5° (3.7 mm), 78.4° (2.8 mm)  Lens Mount M12  Day & Night Electronic   Frame Rate 1080p@25fps, 1080p@30 fps  Synchronization Internal Synchronization  WDR > 120 dB  Video Output 1 HD analog output  Menu  AGC High/Middle/Low/ Off  Day/Night Mode AUTO/COLOR/WB (White and Black)  White Balance ATW/MWB  Backlight Compensation Support  WDR Support  Function Contrast, Sharpness, Color gain, Mirror, Digital noise reduction  General  Operating Conditions  -40° C to 60° C (-40° F to 140° F)  Humidity...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
* 2.0 megapixel progressive scan CMOS
* HD analog output, up to 1080p resolution
* OSD menu, DNR, AGC
* 120 dB true WDR
* Applicable for ATM machine



DS-2CS54D7T-PH
1080p WDR Covert Camera











Specifications




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Min. illumination 0.01 Lux@(F1.2, AGC ON)
Signal System PAL/NTSC
Shutter Time
PAL: 1/25 s to 1/50, 000 s






NTSC: 1/30 s to 1/50, 000 s
Effective Resolution 1920 (H) x 1080 (V)
Lens 3.7 mm @ F2.5 (2.8 mm Optional)
Field of View 69.5° (3.7 mm), 78.4° (2.8 mm)
Lens Mount M12
Day & Night Electronic
Frame Rate 1080p@25fps, 1080p@30 fps
Synchronization Internal Synchronization
WDR > 120 dB
Video Output 1 HD analog output
Menu
AGC High/Middle/Low/ Off
Day/Night Mode AUTO/COLOR/WB (White and Black)
White Balance ATW/MWB
Backlight Compensation Support
WDR Support
Function Contrast, Sharpness, Color gain, Mirror, Digital noise reduction
General
Operating Conditions
-40° C to 60° C (-40° F to 140° F)
Humidity: 90% or less (no condensation)
Power Supply 12 V DC ± 10%
Power Consumption Max. 1.5 W
Dimensions 32.4 mm x 32.4 mm x 22.0 mm (1.28" x 1.28" x 0.87")
Weight Approx. 200 g (0.44 lb.)




Order Model
DS-2CS54D7T-PH
Dimensions
40.1 mm (1.58")
35.1 mm (1.38")
32.4 mm (1.28")
3
2
.
4

m
m

(
1
.
2
8
"
)
4
7
.
4

m
m

(
1
.
8
7
"
)
21.9 mm (0.86")
7 mm
(0.28")
3
.
5

m
m

(
0
.
1
4
"
)
