DS-2CE78U7T-IT3F(2.8mm)

Key Feature   8.29 MP, 3840 x 2160 resolution   Ultra-low light   130 dB true WDR, 3D DNR   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens   Smart IR, up to 60 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67    DS-2CE78U7T-IT3F  8 MP Ultra-Low Light Camera          Camera  Image Sensor 8.29 MP CMOS  Signal System PAL/NTSC  Frame Rate  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,  1080P@30fps  AHD: 8MP@12.5fps, 8MP@15fps  CVI: 8MP@12.5fps, 8MP@15fps  CVBS: P/N  Resolution 3840 (H) x 2160 (V)  Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50,000 s  NTSC: 1/15 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens  Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm), 38° (8 mm), 24° (12 mm)  Lens Mount M16  Day & Night ICR  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode Global/BLC/HLC/WDR  Noi...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Feature
 8.29 MP, 3840 x 2160 resolution
 Ultra-low light
 130 dB true WDR, 3D DNR
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
 Smart IR, up to 60 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67

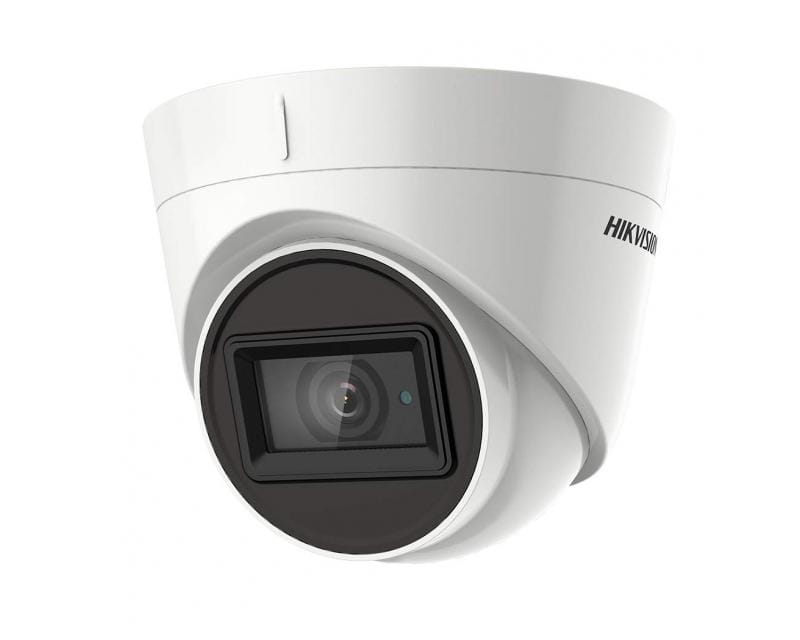

DS-2CE78U7T-IT3F
8 MP Ultra-Low Light Camera




Camera
Image Sensor 8.29 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm), 38° (8 mm), 24° (12 mm)
Lens Mount M16
Day & Night ICR
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/WDR
Noise Reduction 3D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 4.2 W
Protection Level IP67
Material
Enclosure: Plastic
Main body: Metal
IR Range Up to 60 m
Communication HIKVISION-C
Dimensions Φ 109.82 mm x 91.03 mm (Φ 4.32" x 3.6")
Weight Approx. 325 g (0.72 lb.)
Specification



Order Model
DS-2CE78U7T-IT3F
Dimension
91
.03
mm
(
3
.6
" )





Accessory









DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1281ZJ-S
Inclined Ceiling Mount






DS-1280ZJ-S
Junction Box
