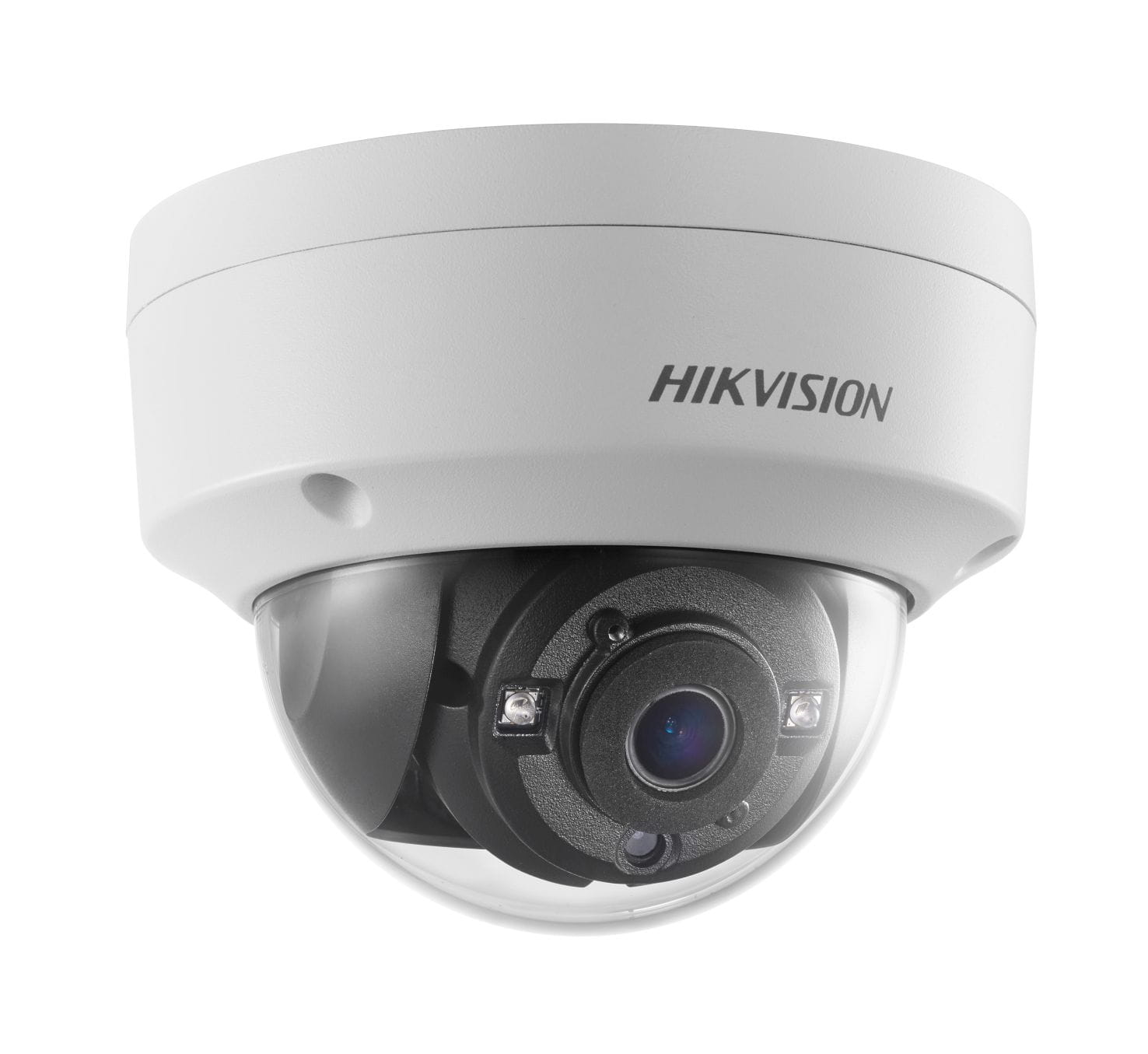

DS-2CE57H8T-VPIT(6mm)

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm fixed lens   EXIR 2.0, smart IR, up to 30 m IR distance   OSD menu, 3D DNR, 130 dB true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67, IK10   Up the coax (HIKVISION-C)    DS-2CE57H8T-VPITF  5 MP Dome Camera              Camera  Image Sensor 5 megapixel progressive scan CMOS  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Frame Rate  TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps  AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps  CVI: 4 MP@25fps, 4 MP@30fps  CVBS: PAL, NTSC  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) ≥ 130 dB  Menu  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Man...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance CMOS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 30 m IR distance
 OSD menu, 3D DNR, 130 dB true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67, IK10
 Up the coax (HIKVISION-C)

DS-2CE57H8T-VPITF
5 MP Dome Camera






Camera
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
CVI: 4 MP@25fps, 4 MP@30fps
CVBS: PAL, NTSC
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ≥ 130 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 5.8 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 111 mm x 82.4 mm (Ø 4.4" x 3.2" )
Weight Approx.500 g (1.10 lb.)
Specification



Order Model
DS-2CE57H8T-VPITF
Dimension


Ø

1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Ø 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Ø 79.1 mm (3.1'')
3-5.0 mm (0.2")




Accessory











DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110B
Wall Mount
DS-1272ZJ-110
Wall Mount








DS-1280ZJ-DM18
Junction Box
DS-1258ZJ
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
