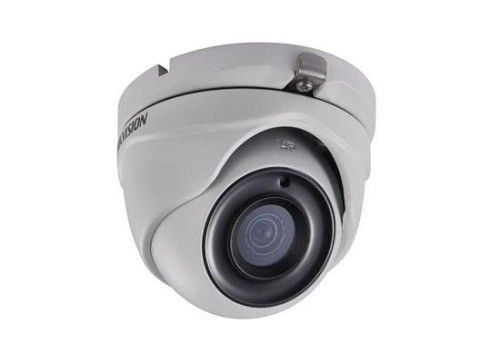

DS-2CE56H5T-ITM(2.8mm)

Key Features   5 megapixel high-performance CMOS   HD analog output, up to 5 MP resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   True Day/Night   OSD menu, DNR, Smart IR   EXIR technology, up to 20 m IR distance   IP67   Up the Coax (HIKVISION-C)    DS-2CE16H5T-ITM  5 MP Ultra-Low Light EXIR Turret Camera          Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal Lens  Horizontal Field of View 91° (2.8 mm), 70° (3.6 mm), 45° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 75°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate 2560 x 1944 @ 20fps  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR  Interface  Video Output 1 HD analog output  General  Opera...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 megapixel high-performance CMOS
 HD analog output, up to 5 MP resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 True Day/Night
 OSD menu, DNR, Smart IR
 EXIR technology, up to 20 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

DS-2CE16H5T-ITM
5 MP Ultra-Low Light EXIR Turret Camera




Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal Lens
Horizontal Field of View 91° (2.8 mm), 70° (3.6 mm), 45° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 75°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2560 x 1944 @ 20fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±25%
Power Consumption Max.3.5 W
Protection Level IP67
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 91 mm x 82.6 mm x 68.3 mm (3.58" x 3.25" x 2.69")
Weight Approx. 350 g (0.77 lb)
Specification



Order Models
DS-2CE56H5T-ITM
Dimension









Accessory

DS-1272ZJ-110-TRS
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1H18
Video Balun

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun










010000170527

120 °
82.6 mm
(3.25")
6
8
.
3

m
m

(
2
.
6
9
"
)
3-Φ 4.5 mm
Φ 60 mm
(2.36")
9
1

m
m

(
3
.
5
8
"
)
