DS-2CE56H0T-ITZE(2.7-13.5mm)

Key Features   5 MP high performance COMS   2560 x 1944 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 40 m IR distance   OSD menu, 2D DNR, DWDR   PoC.af   Up the coax (HIKVISION-C)    DS-2CE56H0T-ITZE  5 MP Dome Camera              Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 95.7° to 29.1°  Lens Mount Φ 14              Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Functions Brightness, Sharpness, DNR, Mirror, Smart IR  Interface  Video Output 1 HD analog output  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)  Power Supply 12 VDC ±25%, PoC.af  Power Consumption Max. 6.6 W  Material Plastic  IR Range Up to 40 m  Communication Up the coax, Protocol: HIKVISION-C (T...

Warning! Product withdrawn from production!

Replacement product: DS-2CE59H8T-VPIT3ZF(2.7-13.5mm)

Replacement product code: 300611890

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, 2D DNR, DWDR
 PoC.af
 Up the coax (HIKVISION-C)

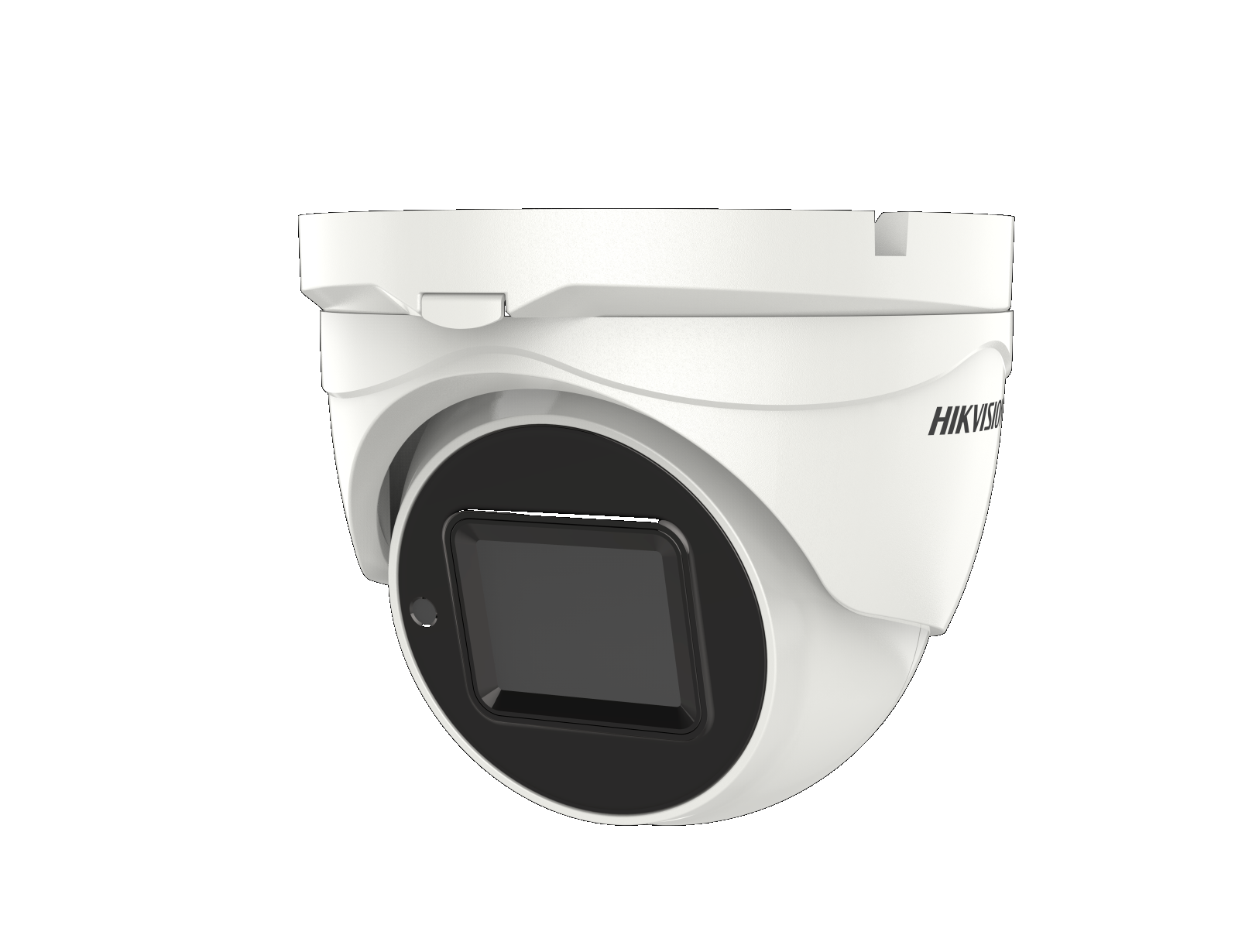

DS-2CE56H0T-ITZE
5 MP Dome Camera






Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14






Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, PoC.af
Power Consumption Max. 6.6 W
Material Plastic
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 136 mm x 101.9 mm ( Ø 5.35" x 4.01")
Weight Approx. 455 g (1.00 lb.)


Order Model
DS-2CE56H0T-ITZE
Dimension






8
3
.
5

m
m

(
3
.
2
9
"
)
46 mm (1.81")
99.9 mm (3.93")
1
0
1
.
9

m
m

(
4
.
0
1
"
)
Ø 136 mm (5.35")




Accessory









DS-1275ZJ-SUS
Vertical Pole Mount
DS-1273ZJ-130B
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1271ZJ-130
Pendant Mount











DS-1273ZJ-130
Pendant Mount
DS-1249ZJ
In-ceiling Mount
