DS-2CE56D8T-VPITF(6mm)

Key Features   2 MP high performance COMS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   130 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 30 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67, IK10   Up the coax (HIKVISION-C)    DS-2CE56D8T-VPITF  2 MP Ultra-Low Light Dome Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)  Lens Mount M12  Day & Night IR cut filter  WDR (Wide Dynamic Range) ≥ 130 dB  Angle Adjustment Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°  Menu  Image Mode STD/HIGH-SAT  AGC Support  Day/Night Mode Auto/Color/BW (Black White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask 4 programmable privacy masks  Motion...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2 MP high performance COMS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 130 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67, IK10
 Up the coax (HIKVISION-C)

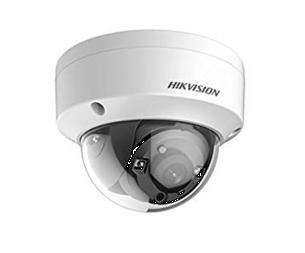

DS-2CE56D8T-VPITF
2 MP Ultra-Low Light Dome Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 3.4 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 111 mm x 82.4 mm (Ø 4.4" x 3.2")
Weight Approx. 492 g (1.08 lb.)
Specification


Order Models
DS-2CE56D8T-VPITF
Dimension
Φ
1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Φ 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Φ 79.1 mm (3.1'')
3-5.0 mm (0.2")









Accessory








DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110B
Wall Mount
DS-1275ZJ
Vertical Pole Mount






DS-1280ZJ-DM18
Junction Box

DS-1258ZJ
Wall Mount
