DS-2CE56D8T-IT3ZE(2.7-13.5mm)

Key Features   2.0 megapixel high-performance CMOS   HD analog output, up to 1080p resolution   2.8 mm to 12 mm motorized vari-focal lens   True Day/Night   120 dB true WDR   OSD menu, DNR, Smart IR   EXIR 2.0, up to 40 m IR distance   IP67   PoC.at   Up the Coax (HIKVISION-C)    DS-2CE56D8T-IT3ZE  2 MP Ultra Low-Light VF PoC EXIR Turret Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm to 12 mm motorized vari-focal lens  Horizontal Field of View 32.1° to 103°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON/OFF, 4 programmable privacy masks  Motion Detectio...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm to 12 mm motorized vari-focal lens
 True Day/Night
 120 dB true WDR
 OSD menu, DNR, Smart IR
 EXIR 2.0, up to 40 m IR distance
 IP67
 PoC.at
 Up the Coax (HIKVISION-C)

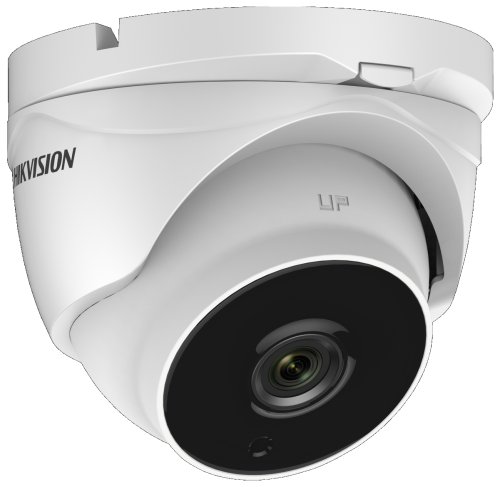

DS-2CE56D8T-IT3ZE
2 MP Ultra Low-Light VF PoC EXIR Turret Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 32.1° to 103°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) On
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC±25%/ PoC.at
-A: 12 VDC±25%, 24 VDC±25%/ PoC.at
Power Consumption Max. 8W
Ingress Protection IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 134.3 mm x 123.9 mm x 111.4 mm (5.29" x 4.88" x 4.39")
Weight Approx. 750 g (1.57 lb.)
Specification



Order Models
DS-2CE56D8T-IT3ZE
* PoC function is only available when cooperating with DS-1TPXXX.
Dimension
Φ 90 mm(3.54")
3-Φ4.5 mm
(0.18")
120°
123.86 mm (4.88")
123.86 mm
(4.876")
1
1
1
.
3
5

m
m

(
4
.
3
8
4
"
)
1
3
4
.
3

m
m

(
5
.
2
9
"
)


Accessory

DS-1273ZJ-130-TRL
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket

DS-1H18
Video Balun
