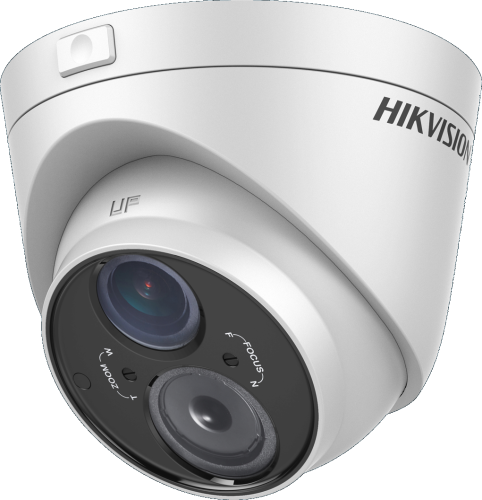

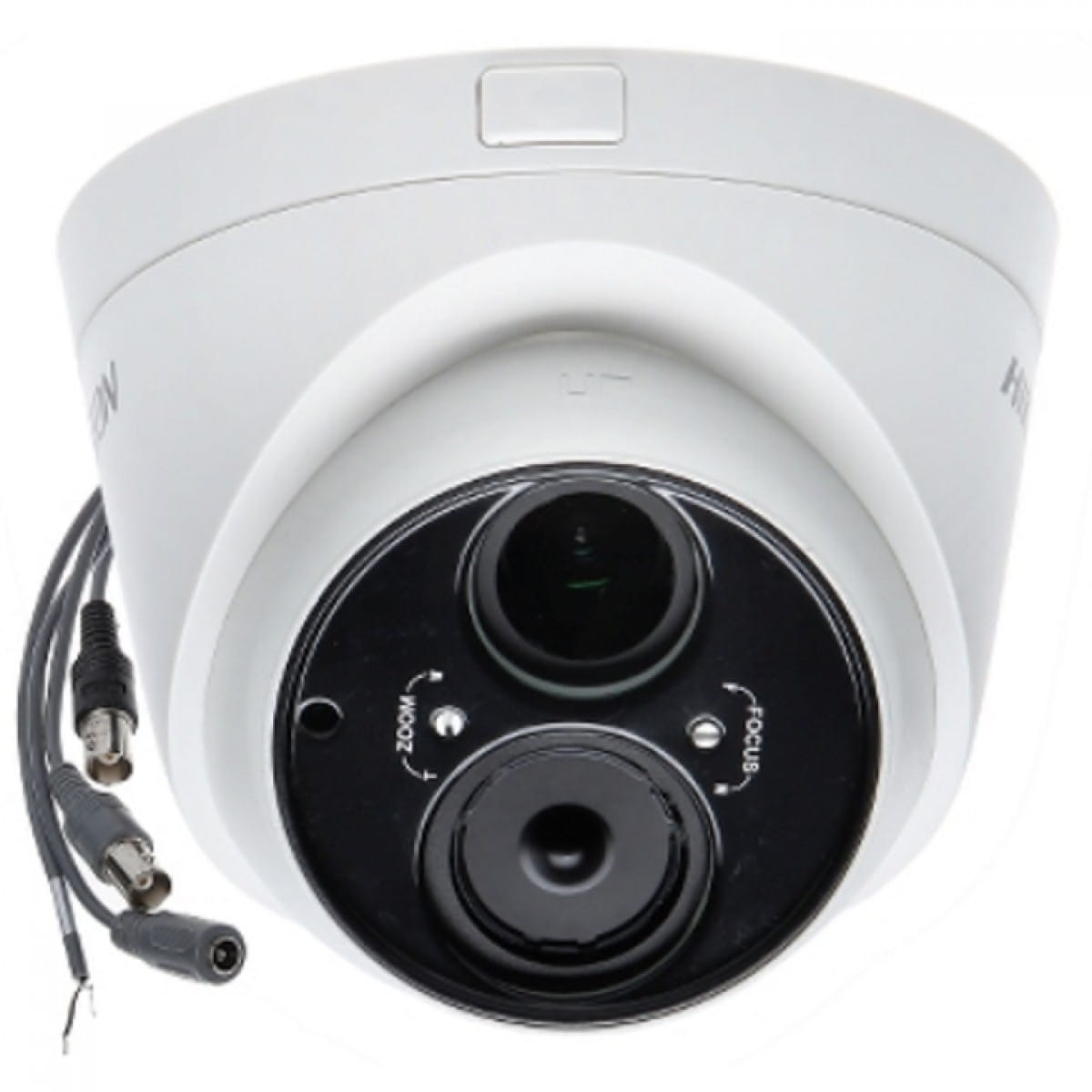

DS-2CE56D5T-VFIT3(2.8-12mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CE56D5T-VFIT3      Key Features   2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   2.8-12mm vari-focal lens   True Day/Night   OSD menu, 3D DNR, Smart IR   True WDR, up to 120dB   EXIR vari-focal technology, up to 50m IR distance   IP66 weatherproof   UTC function(Pelco C protocol)  Specification   Model  Parameter  DS-2CE56D5T-VFIT3  Turbo HD1080p Vari-focal EXIR Turret Camera  Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1944(H)*1092(V)  Min. Illumination  0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  0.014 Lux @ (F1.4,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  2.8-12mm @ F1.4  Angle of view: 103° - 32.1°  Lens Mount φ14        ©2006 – 2014 by HIKVISION. All rights reserved.  2  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Day & Night ICR  Synchroni...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CE56D5T-VFIT3


Key Features
 2 Megapixel high-performance CMOS
 Analog HD output, up to 1080P resolution
 2.8-12mm vari-focal lens
 True Day/Night
 OSD menu, 3D DNR, Smart IR
 True WDR, up to 120dB
 EXIR vari-focal technology, up to 50m IR distance
 IP66 weatherproof
 UTC function(Pelco C protocol)
Specification
Model
Parameter
DS-2CE56D5T-VFIT3
Turbo HD1080p Vari-focal EXIR Turret Camera
Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1944(H)*1092(V)
Min. Illumination
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 103° - 32.1°
Lens Mount φ14



©2006 – 2014 by HIKVISION. All rights reserved.
2
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio ＞62dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,
Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror,
Defog, Defect pixel correction, SMART D-ZOOM
General
Working
Temperature/Humidity
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC±15%
Power Consumption Max. 7W
Weather Proof Ratings IP66
IR Range Up to 50m
Communication
Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension Φ 130.54 x 93.24 mm (Φ 5.14” x 3. 67”)
Weight 300 g (0.66 lb)
Order Model
DS-2CE56D5T-VFIT3



©2006 – 2014 by HIKVISION. All rights reserved.
3
Dimension
130.54(5.14")
93.24(3.67")
112.4(4.43")
4-
4.5(0.18")
Unit:mm


Accessary



DS-1273ZJ-130-TRL DS-1275ZJ DS-1276ZJ DS-1280ZJ-M
Wall Mounting Vertical Pole Mounting Corner Mounting Junction Box




DS-1281ZJ-M DS-1H18 DS-TT-X41T
Inclined Ceiling Mounting Video Balun TVI Tester
