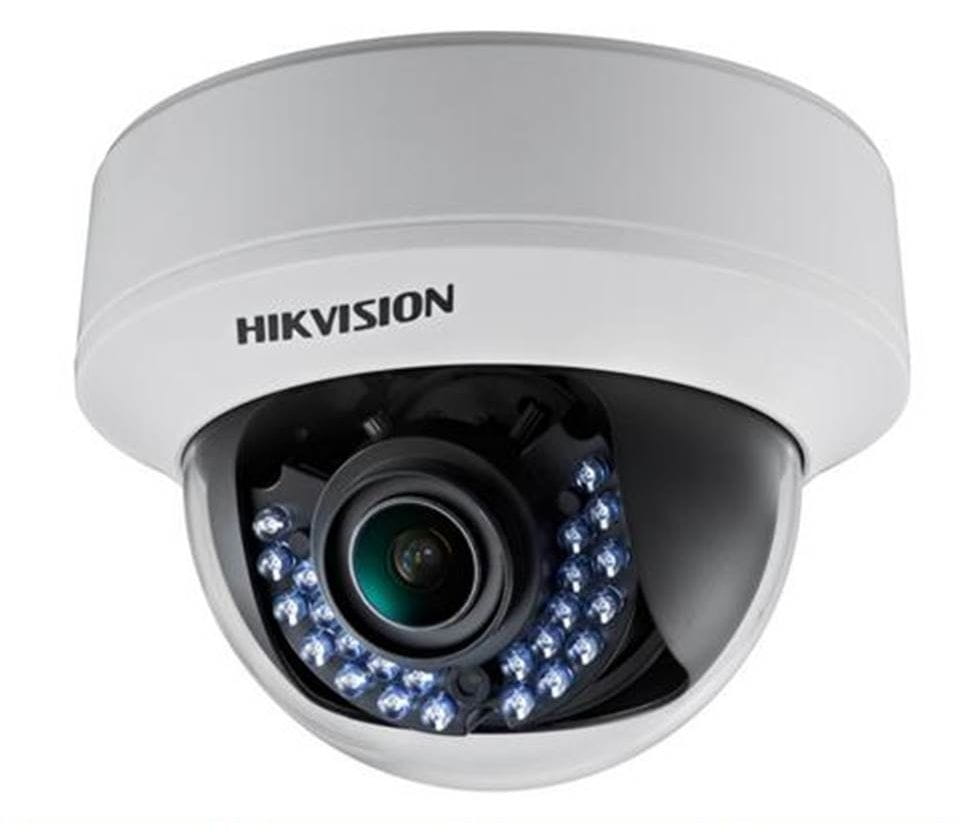

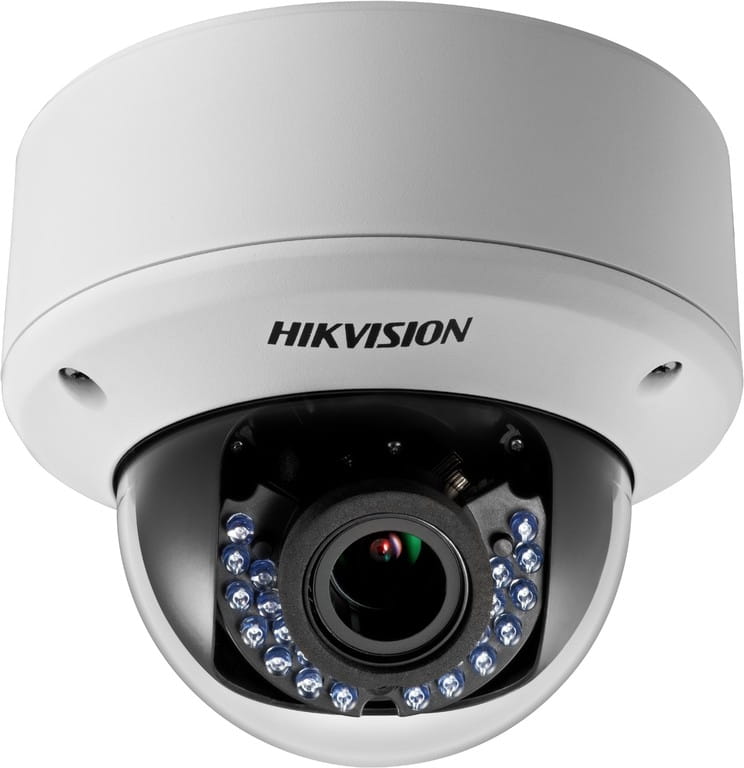

DS-2CE56D1T-AVPIR3Z(2.8-12mm)

2MP CMOS Motorized Vandal-proof IR Dome Camera    Ÿ 2 Megapixel high-performance CMOS  Ÿ Analog HD output, up to 1080P resoluon  Ÿ 2.8 – 12mm motorized vari-focal lens  Ÿ True Day/Night, Smart IR  Ÿ Up to 40m IR distance  Ÿ IP66 weatherproof & vandal proof  Ÿ OSD menu  Ÿ  Ÿ Up the Coax(HIKVISION-C protocol)    Key Features  DS-2CE56D1T-VPIR3Z  12V DC          Specificaons          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effecve Pixels 1930(H)*1088(V)  Min. illuminaon 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shuer Time 1/25(1/30)s to 1/50,000s  Lens  Motorized VF lens; 2.8 - 12 mm @ F1.4  Angle of view: 114.5° - 35.1°  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotaon: 0 - 355°  Synchronizaon Internal synchronizaon  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Rao ＞62dB  Menu  Camera ID On/off (0-255)  AGC Support  D/N Mode Color/BW/Auto/EXT  White Balance Auto/User/Push/8000K/6000K/4200K/3000K  Privacy Mask On/Off, maximum 2 zones  Moon Detecon On/Off, maximum 4 zones  BLC Support  An-flicker On/Off...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

2MP CMOS Motorized Vandal-proof IR Dome Camera

Ÿ 2 Megapixel high-performance CMOS
Ÿ Analog HD output, up to 1080P resoluon
Ÿ 2.8 – 12mm motorized vari-focal lens
Ÿ True Day/Night, Smart IR
Ÿ Up to 40m IR distance
Ÿ IP66 weatherproof & vandal proof
Ÿ OSD menu
Ÿ
Ÿ Up the Coax(HIKVISION-C protocol)

Key Features
DS-2CE56D1T-VPIR3Z
12V DC




Specificaons




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effecve Pixels 1930(H)*1088(V)
Min. illuminaon 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shuer Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4
Angle of view: 114.5° - 35.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotaon: 0 - 355°
Synchronizaon Internal synchronizaon
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Rao ＞62dB
Menu
Camera ID On/off (0-255)
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Moon Detecon On/Off, maximum 4 zones
BLC Support
An-flicker On/Off
Language English/Chinese
Funcons Digital noise reducon, Mirror
General
Operang Condions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumpon Max. 4W
Protecon Level IP66
IR Range Up to 40m
Impact Protecon IK10
Communicaon Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions Φ 145.2 x 124.1 mm (Φ 5.72” x 4.9”)
Weight 1350 g
Order Models
DS-2CE56D1T-VPIR3Z, DS-2CE56D1T-AVPIR3Z





Dimensions

20150918
Accessories

DS-1273ZJ-130 DS-1275ZJ DS-1276ZJ
Wall Mount Vercal Pole Mount Corner Mount


DS-1H18
Video Balun

DS-TT-X41T
TVI Tester
