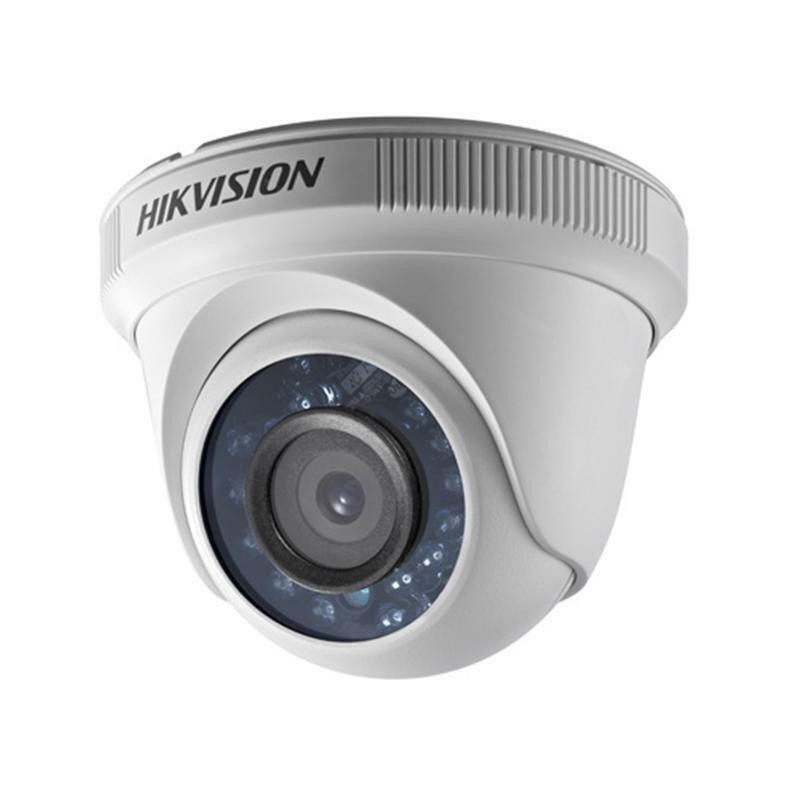

DS-2CE56D0T-IRF(2.8mm)

DS-2CE56D0T-IRF  HD1080p IR Turret Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66    Key Features                  Specifications          Camera  Image Sensor 2MP CMOS image sensor  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens 3.6 mm, 2.8 mm, 6 mm fixed lens  Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°  Synchronization Internal synchronization  Menu  AGC Low/middle/high  Day/Night Mode Smart/color/BW(Black and White)  Backlight Compensation Yes  DWDR Yes  Language English, Chinese  Functions Brightness, Sharpness, DNR, Mirror  Interface  Video Output 1 HD analog output  Switch Button TVI/AHD/CVI/CVBS  General  Operating Conditions -40 °C to 60...

Warning! Product withdrawn from production!

Replacement product: DS-2CE56D0T-IRF(2.8mm)(C)

Replacement product code: 300613461

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE56D0T-IRF
HD1080p IR Turret Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

Key Features








Specifications




Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens 3.6 mm, 2.8 mm, 6 mm fixed lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Menu
AGC Low/middle/high
Day/Night Mode Smart/color/BW(Black and White)
Backlight Compensation Yes
DWDR Yes
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%
Power Consumption Max. 4 W
Ingress Protection IP66
Material
Enclosure: Plastic
Main Body: Metal
IR Range Up to 20 m
Dimension Φ 89.9 mm x 70.1 mm (3.54" x 2.76")
Weight Approx. 280 g (0.62 lb.)
Order Model
DS-2CE56D0T-IRF







7
0.
1

m
m

(
2
.
7
6"
)
Φ

8
9.
9

m
m

(
3
.
5
4"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)
Φ

7
2

m
m

(
2
.
8
3"
)
1
2
0
°


Dimensions

Accessories

DS-1272ZJ-110-TRS DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1H18
Wall Mount Vertical Pole Mount Corner Mount Video Balun



DS-1280ZJ-XS
Junction Box
