DS-2CE56C0T-IRPF(2.8mm)

Availability: 0
Price: €26.36 26.36
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300609134

Description

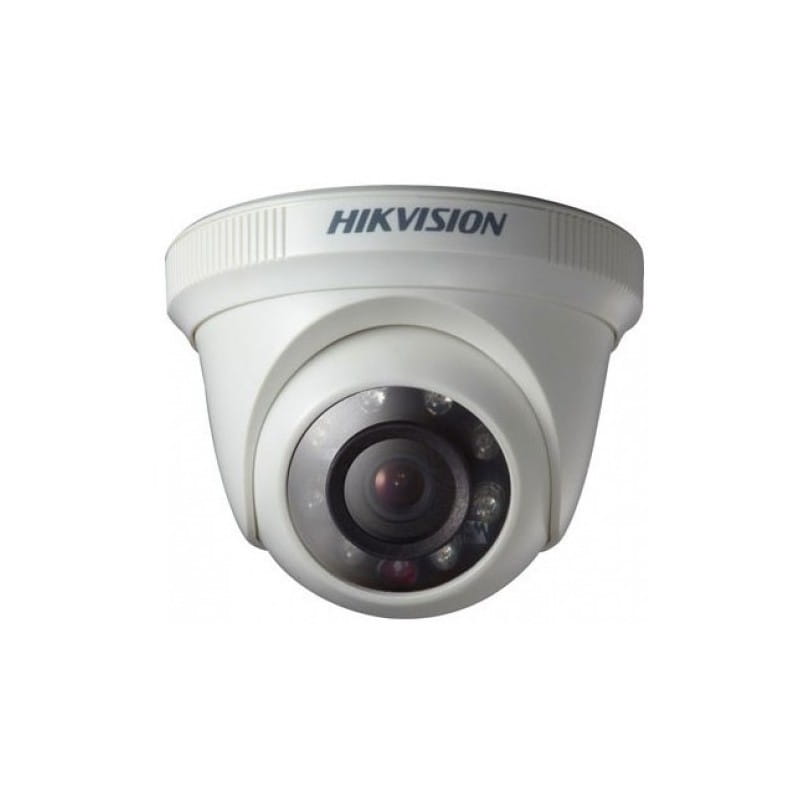

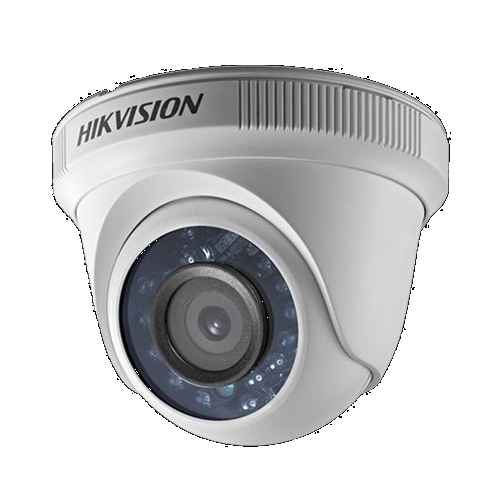

DS-2CE56C0T-IRPF  HD 720p Indoor IR Turret Camera    * 1 megapixel high performance CMOS  * Analog HD output, up to 720p resolution  * Day/Night switch  * DNR  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS      Key Features                    Specifications          Camera  Image Sensor 1 MP CMOS image sensor  Signal System PAL/NTSC  Effective Pixels 1296 (H) x 732 (V)  Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  IR Range Up to 20 m  Dimensions Φ 89.9 mm x 70.1 mm (3.54" x 2.76")  Weight 250 g (0.55 lb.)    Order Mode...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CE56C0T-IRPF
HD 720p Indoor IR Turret Camera

* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS


Key Features









Specifications




Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
IR Range Up to 20 m
Dimensions Φ 89.9 mm x 70.1 mm (3.54" x 2.76")
Weight 250 g (0.55 lb.)

Order Model
DS-2CE56C0T-IRPF







7
0.
1

m
m

(
2
.
7
6"
)
Φ

8
9.
9

m
m

(
3
.
5
4"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)
Φ

7
2

m
m

(
2
.
8
3"
)
1
2
0
°


Dimensions

Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun



X41T DS-1280ZJ-XS
Camera Tester Junction Box
