DS-2CE56C0T-IRMF(6mm)

Key Features  * 1 megapixel high performance CMOS  * Analog HD output, up to 720p resolution  * Day/Night switch  * DNR  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66    DS-2CE56C0T-IRMF  HD 720p IR Turret Camera                Specification  Camera  Image Sensor 1 MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1296 (H) x 732 (V)  Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  Protection Level IP66  IR Range Up to 20 m  Dimensions 89.47 x 67.6 mm (3.52" x 2.7")  Weight 340 g (0.75 lb.)      Order Model  DS-2CE56...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

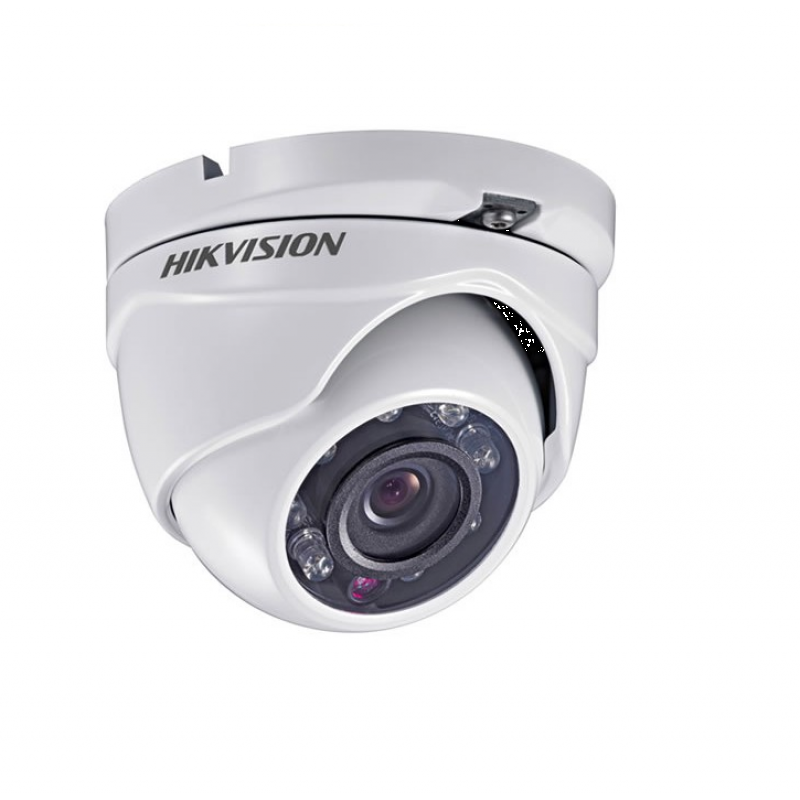

DS-2CE56C0T-IRMF
HD 720p IR Turret Camera







Specification
Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions 89.47 x 67.6 mm (3.52" x 2.7")
Weight 340 g (0.75 lb.)


Order Model
DS-2CE56C0T-IRMF





Dimensions
3
-
Φ

4
.
5
(
0
.
1
8"
)
Φ

6
0

m
m

(
2
.
3
6"
)
Φ

8
2.
5
8

m
m

(
3
.
2
5"
)
6
7.
6

m
m

(
2
.
7
"
)
1
2
0
°
8
9.
4
7

m
m

(
3
.
5
2"
)



Accessories


DS-1272ZJ-110-TRS
Wall Mounting Bracket
DS-1275ZJ
Vertical Pole Mounting Bracket
DS-1276ZJ
Corner Mounting Bracket
DS-1H18
Video Balun



X41T
Camera Tester
DS-1280ZJ-XS
Junction Bo
