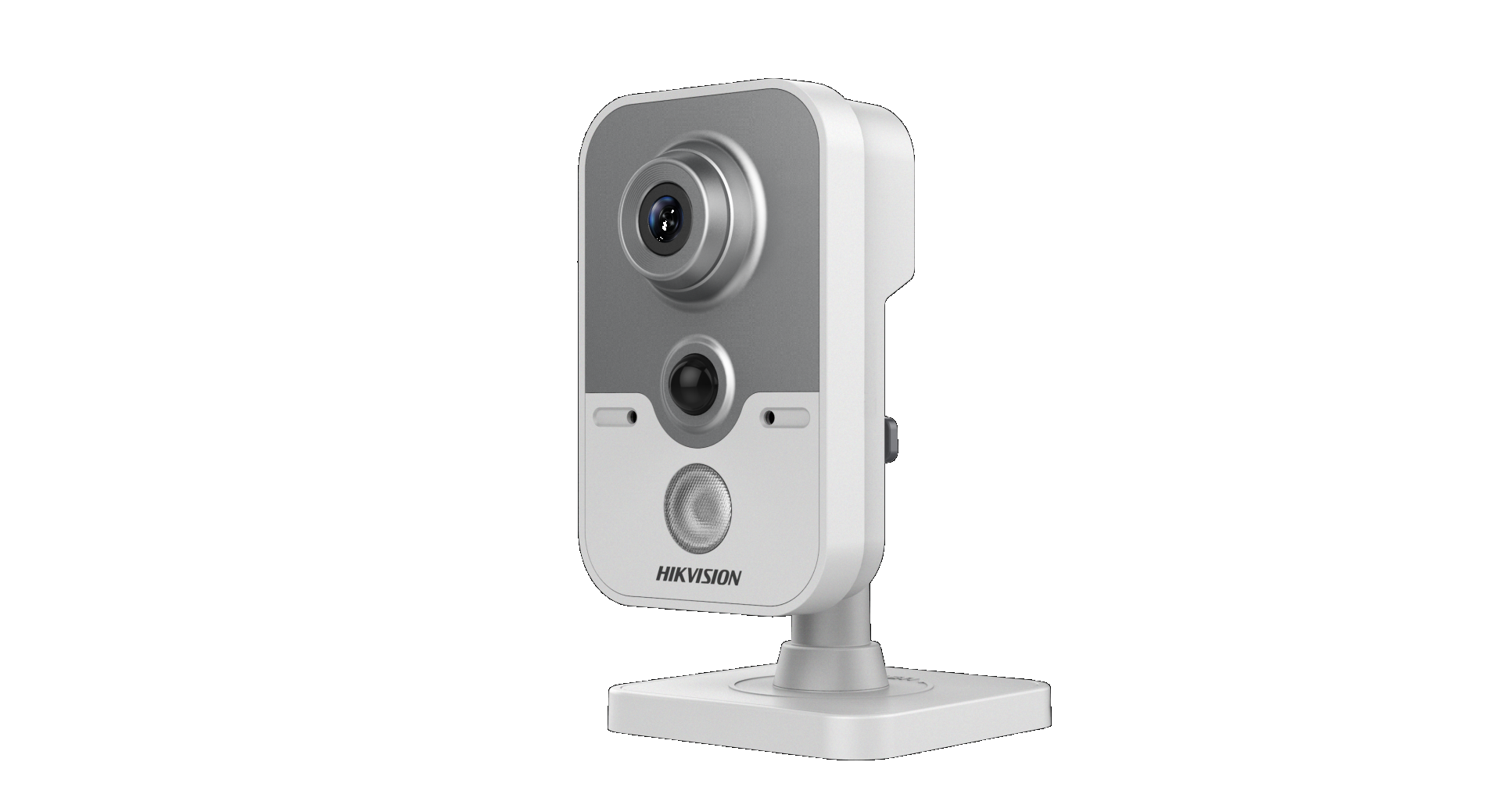

DS-2CE38D8T-PIR(3.6mm)
Description
Key Features 2 MP high performance CMOS Ultra-low light 1920 x 1080 resolution 2.8 mm, 3.6 mm fixed focal lens PIR detection 120 dB true WDR, 3D DNR EXIR 2.0, smart IR, up to 20 m IR distance Built-in microphone Up the coax (HIKVISION-C) DS-2CE38D8T-PIR 2 MP Ultra-Low Light PIR Cube Camera Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) x 1080 (V) Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed focal lens Horizontal Field of View 103.5° (2.8 mm), 80.3° (3.6 mm) Lens Mount M12 Day & Night IR cut filter Synchronization Internal synchronization WDR (Wide Dynamic Range) > 120 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance ATW/MANUAL Privacy Mask ON/OFF, 4 programmable privacy masks Motion Detection 4 programmable motion areas Backlight Compensation WDR/BLC/OFF 3D DNR (Digi...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Features
2 MP high performance CMOS
Ultra-low light
1920 x 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection
120 dB true WDR, 3D DNR
EXIR 2.0, smart IR, up to 20 m IR distance
Built-in microphone
Up the coax (HIKVISION-C)
DS-2CE38D8T-PIR
2 MP Ultra-Low Light PIR Cube Camera
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 80.3° (3.6 mm)
Lens Mount M12
Day & Night IR cut filter
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Audio In Built-in microphone
Audio Out 1 RCA
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 5 W
Material Plastic
IR Range Up to 20 m
PIR Angle: 110°, Range: 11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 104 mm x 66 mm x 41.07 mm (4.1" x 2.6" x 1.62")
Weight Approx. 210 g (0.46 lb.)
Specification
Order Models
DS-2CE38D8T-PIR
Dimension
66 mm (2.6")
1
3
1
.
3
m
m
(
5
.
1
7
"
)
72.3 mm (2.85")
1
0
4
m
m
(
4
.
1
"
)
41.07 mm (1.62")
