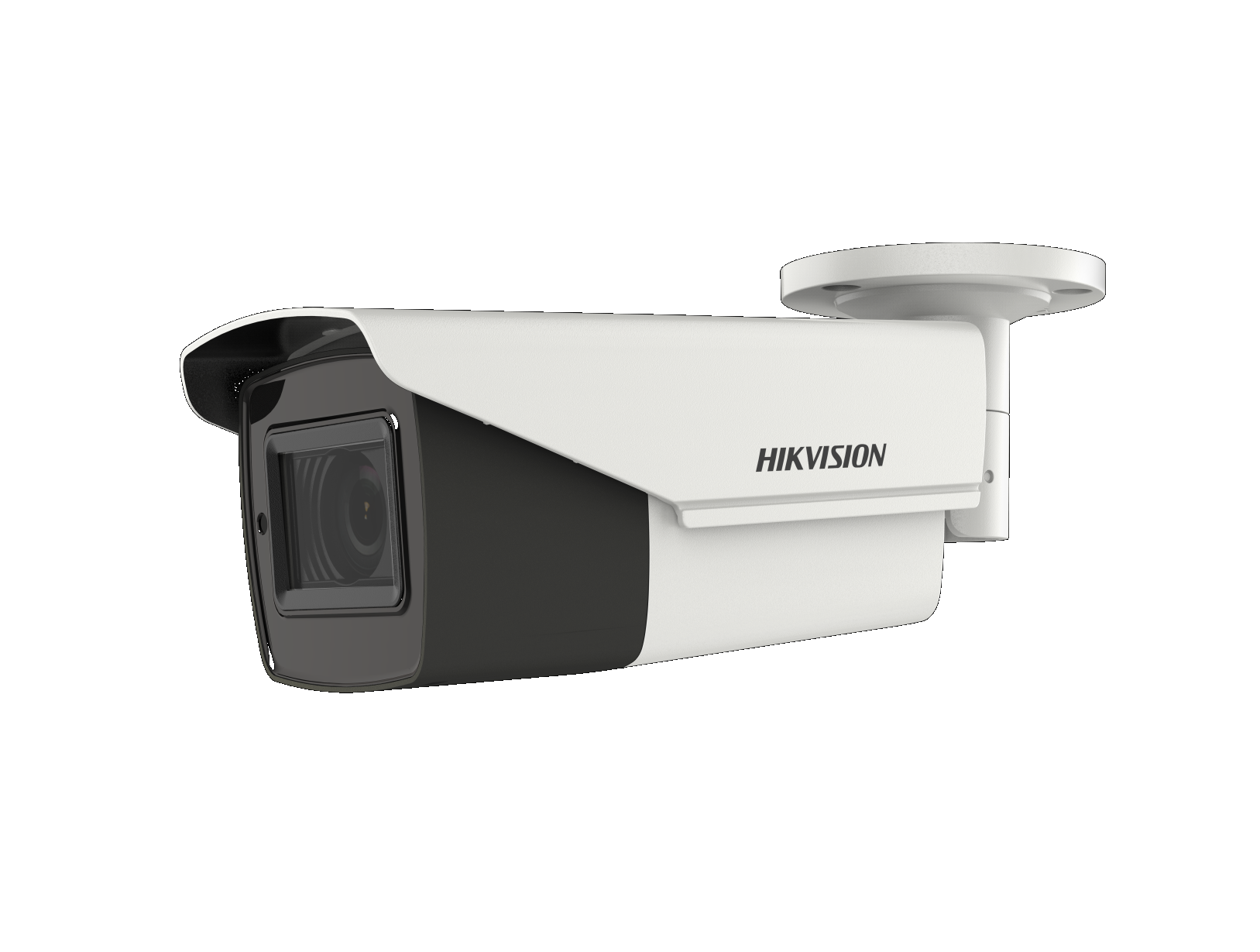

DS-2CE19H8T-AIT3ZF(2.7-13.5mm)

Key Features   5 MP high performance CMOS   Auto focus   2560 x 1944 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 80 m IR distance   OSD menu, 3D DNR, 130 dB true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE19H8T-(A)IT3ZF  5 MP Bullet Camera              Camera  Image Sensor 5 megapixel progressive scan CMOS  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Frame Rate  TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps  AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps  CVI: 4 MP@25fps, 4 MP@30fps  CVBS: PAL, NTSC  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 92.3° to 29.3°  Lens Mount Φ 14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) ≥ 130 dB  Menu  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balanc...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance CMOS
 Auto focus
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 80 m IR distance
 OSD menu, 3D DNR, 130 dB true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE19H8T-(A)IT3ZF
5 MP Bullet Camera






Camera
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
CVI: 4 MP@25fps, 4 MP@30fps
CVBS: PAL, NTSC
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 92.3° to 29.3°
Lens Mount Φ 14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ≥ 130 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
9 VDC to 15 VDC
-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Power Consumption
Max. 7.4 W
-A: Max. 10.5 W
Protection Level IP67
Material Metal
IR Range Up to 80 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
Weight
Approx. 885 g (1.95 lb.)
-A: Approx. 930 g (2.05 lb.)


Order Model
DS-2CE19H8T-IT3ZF, DS-2CE19H8T-AIT3ZF

Dimension
92 mm (3.62" )
8
4
.
5

m
m

(
3
.
3
3
"

)255.1 mm (10" )
240.7 mm (9.47" )
155 mm (6.1" )
Ø 85.3 mm
(3.36" )
Ø 70 mm
(2.76" )
3 x 10-24UNC-2A
1
2
0
°












Accessory















DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
