DS-2CE19D0T-VFIT3F(2.7-13.5mm)(C)

DS-2CE19D0T-VFIT3F(C)  2 MP Varifocal Bullet Camera                     High quality imaging with 2 MP, 1920 x 1080 resolution   2.7 mm to 13.5 mm varifocal lens   Up to 40 m IR distance for bright night imaging   One port for four switchable signals (TVI/AHD/CVI/CVBS)   Water and dust resistant (IP67)                 Specification  Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  TVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fps  AHD: 1920 x 1080 @ 30 fps, 1080P @ 25 fps  CVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fps  CVBS: PAL/NTSC  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s  Lens 2.7 mm to 13.5 mm varifocal lens  Field of View Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°  Lens Mount Φ14  Day ＆ Night Color＆ICR  WDR (Wide Dynamic Range) Digital WDR  Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°  Image  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  Image Mode STD/HIGH-SAT  White Balance ...

Warning! Product withdrawn from production!

Replacement product: DS-2CE19D0T-IT3ZF(2.7-13.5mm)

Replacement product code: 300512305

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE19D0T-VFIT3F(C)

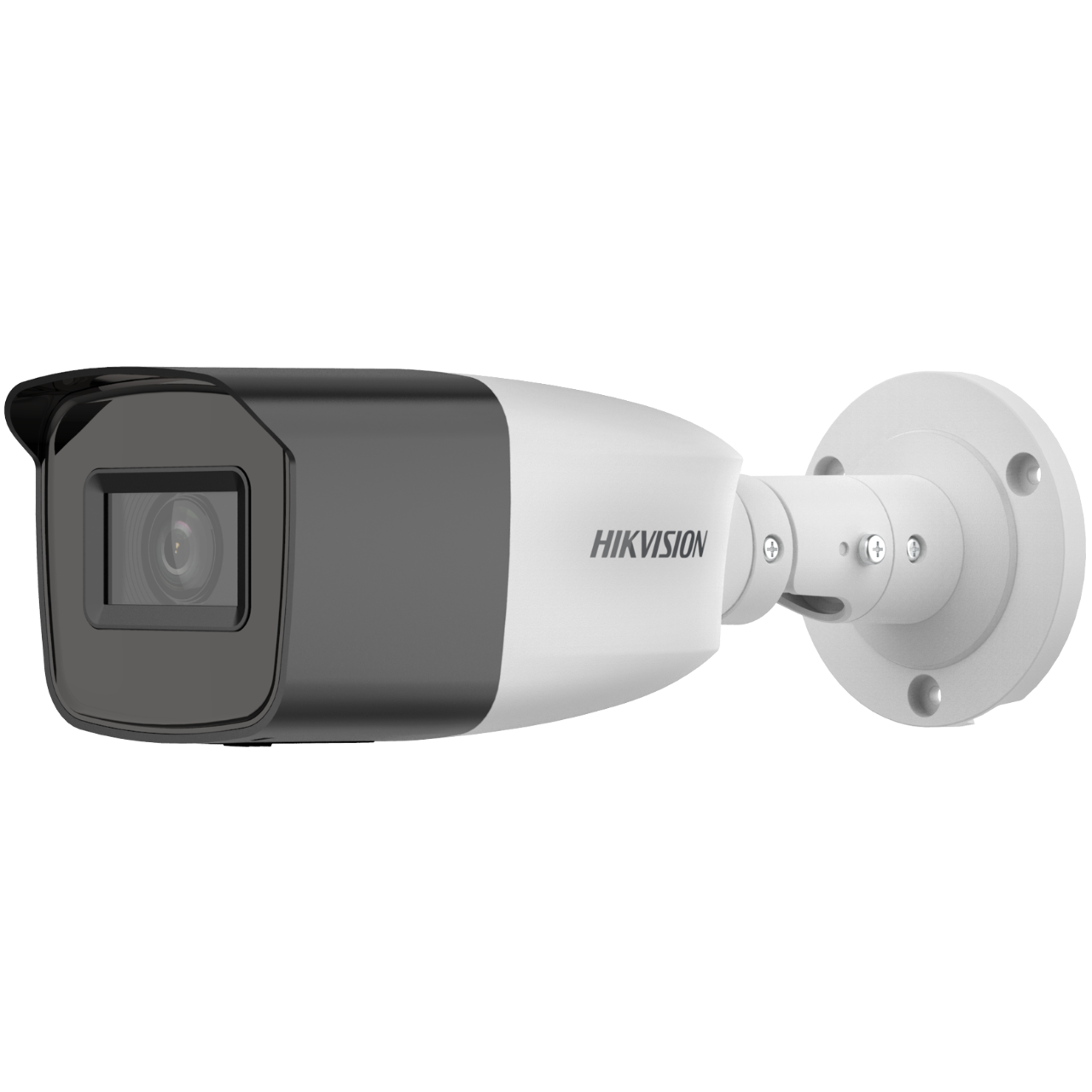

2 MP Varifocal Bullet Camera









 High quality imaging with 2 MP, 1920 x 1080 resolution
 2.7 mm to 13.5 mm varifocal lens
 Up to 40 m IR distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)







 Specification
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
TVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fps
AHD: 1920 x 1080 @ 30 fps, 1080P @ 25 fps
CVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.7 mm to 13.5 mm varifocal lens
Field of View Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
Lens Mount Φ14
Day ＆ Night Color＆ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
Image Mode STD/HIGH-SAT
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
Language English
Function Brightness, Contrast, Mirror, Smart IR, Sharpness, Saturation
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
IR Range Up to 40 m
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 15%
Consumption Max. 5 W
Protection Level IP67
Material Front cover: Metal, Main body: Plastic
Communication HIKVISION-C
Dimension 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10.04")
Weight Approx. 682 g (1.50 lb.)



 Available Model
DS-2CE19D0T-VFIT3F(C)



 Dimension



 Accessory
 Optional
DS-1280ZJ-S
Junction box
DS-1275ZJ-SUS
Vertical Pole
Mount
