DS-2CE17H0T-IT3FS(3.6mm)

DS-2CE17H0T-IT3FS  5 MP Audio Fixed Bullet Camera             High quality imaging with 5 MP, 2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   Up to 40 m IR distance for bright night imaging   One port for four switchable signals (TVI/AHD/CVI/CVBS)   Water and dust resistant (IP67)   High quality audio with audio over coaxial cable, built-in  mic                 Specification  Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)  Frame Rate  TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps  AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps  CVI: 4 MP @ 30 fps, 4 MP @ 25 fps  CVBS: PAL/NTSC  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Field of View  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°  Lens Mount M12  Day & Night ICR  WDR (Wide Dynamic Range) Digital ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE17H0T-IT3FS

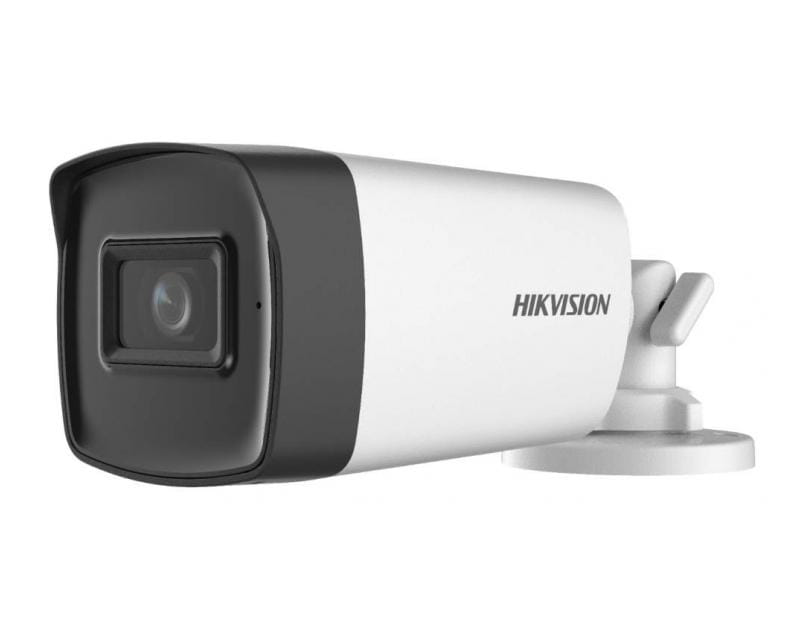

5 MP Audio Fixed Bullet Camera





 High quality imaging with 5 MP, 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 40 m IR distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)
 High quality audio with audio over coaxial cable, built-in
mic







 Specification
Camera
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Frame Rate
TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps
CVI: 4 MP @ 30 fps, 4 MP @ 25 fps
CVBS: PAL/NTSC
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
Language English
Function Brightness, Mirror, Smart IR, Sharpness
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Consumption Max. 4.5 W
Protection Level IP67
Material Front cover: Metal, Main body: Plastic
IR Range Up to 40 m
Communication HIKVISION-C
Dimension 78.9 mm x 75.4 mm x 216.6 mm (3.10" x 2.97" x 8.53")
Weight Approx. 338 g (0.75 lb.)

 Dimension







 Accessory
 Optional
DS-1280ZJ-XS
Junction box


















 Available Model
DS-2CE17H0T-IT3FS
