DS-2CE16H8T-IT(6mm)

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm fixed lens   EXIR 2.0, smart IR, up to 30 m IR distance   OSD menu, 3D DNR, 120 dB true WDR   IP67   Up the coax (HIKVISION-C)    DS-2CE16H8T-IT  5 MP Bullet Camera        Camera  Image Sensor 5 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) ≥ 120 dB  Menu  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  WDR Yes  3D DNR Level 1 to 10  Privacy Mask 4 programmable privacy masks  Motion Detection 4 ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance CMOS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 30 m IR distance
 OSD menu, 3D DNR, 120 dB true WDR
 IP67
 Up the coax (HIKVISION-C)

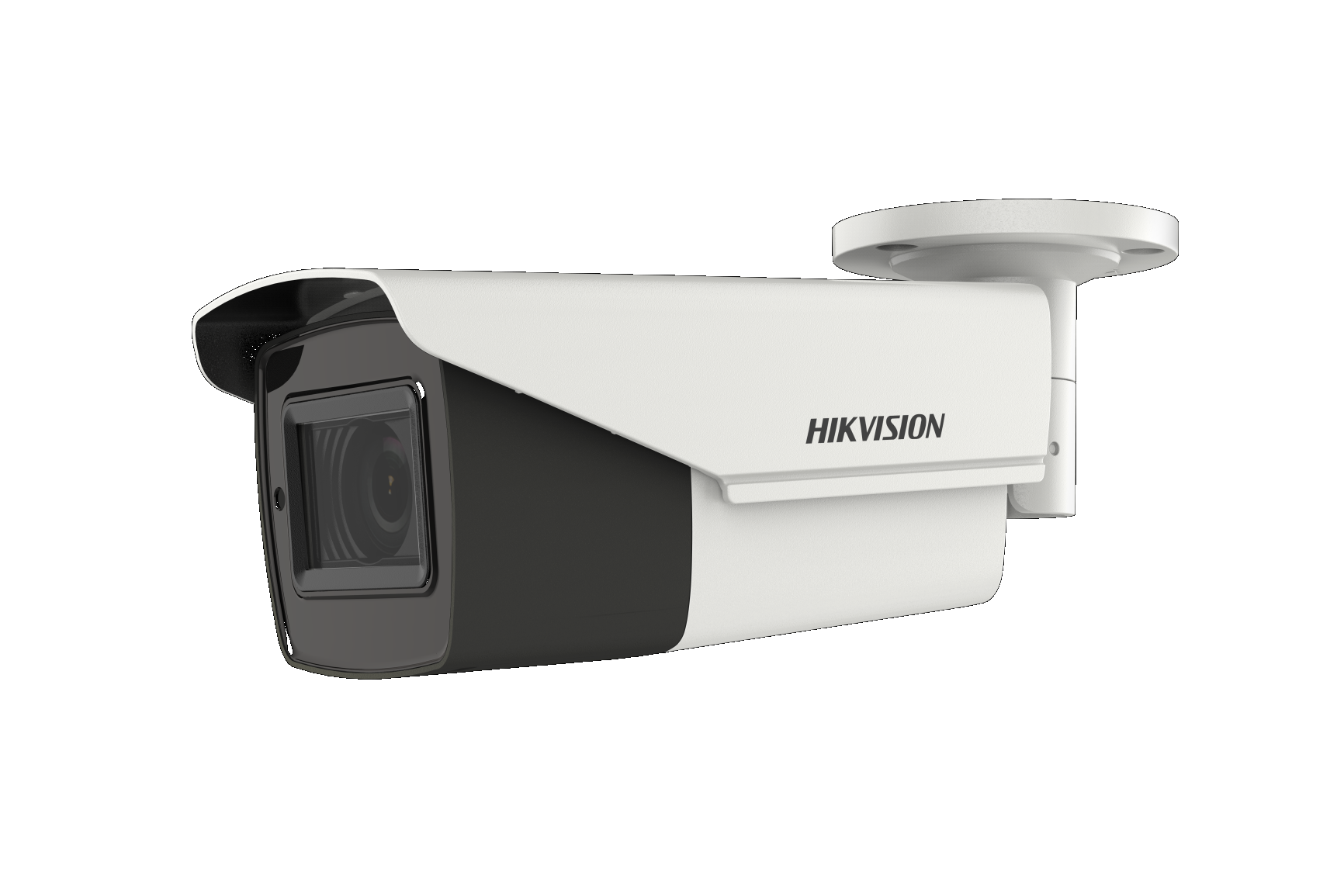

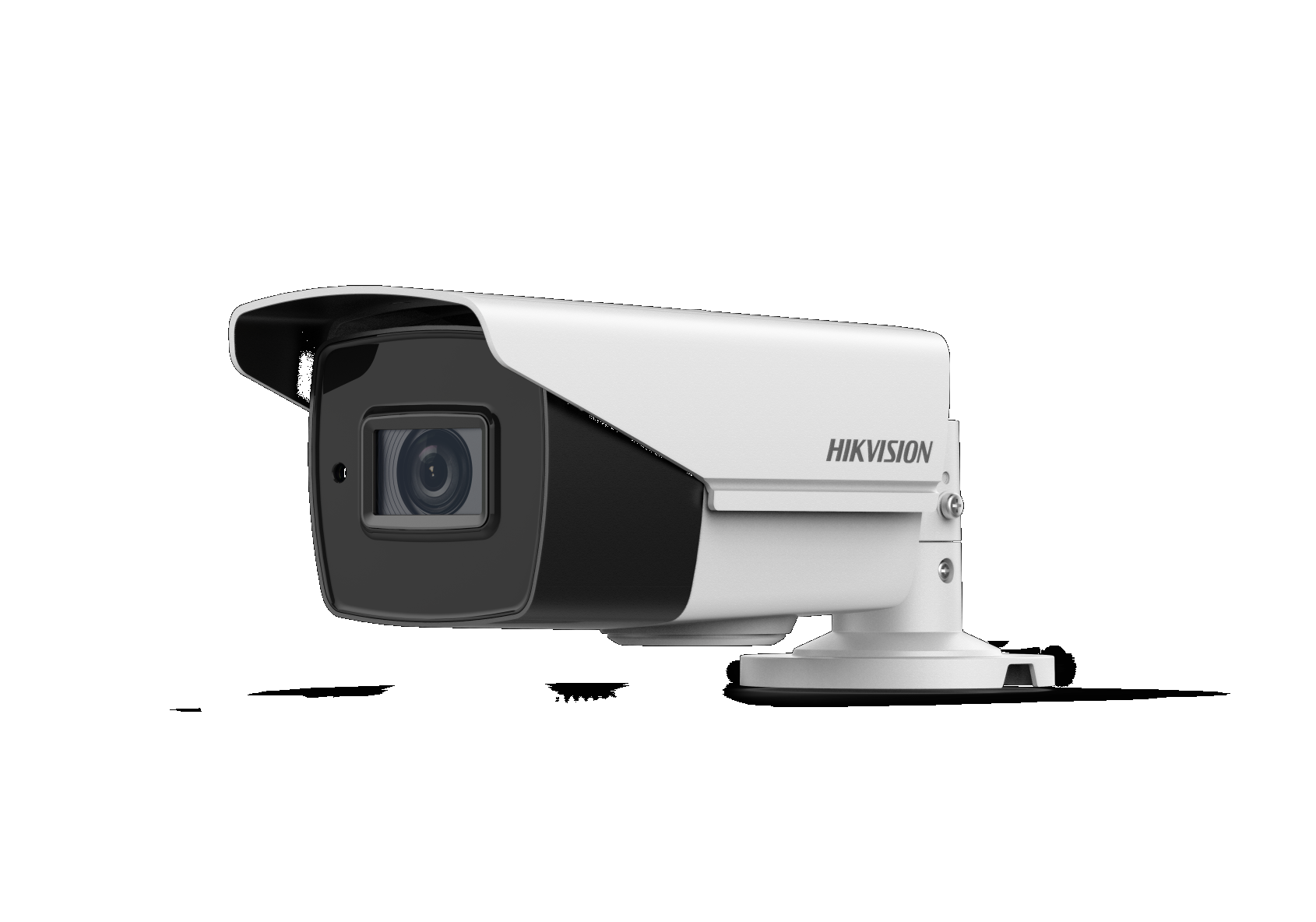

DS-2CE16H8T-IT
5 MP Bullet Camera



Camera
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ≥ 120 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 10
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 6 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm x 61 mm x 159.8 mm (2.28" x 2.40" x 6.42")
Weight Approx. 345 g (0.76 lb.)
Specification



Order Models
DS-2CE16H8T-IT
Dimension
120°
158.6 mm (6.42" )
80.6 mm (3.35" )61 mm (2.40" )
58
mm
(2
.28
" )
Ø 55 mm
(2.17" )


Accessory




DS-1280ZJ-XS
Junction Box


0100001080620
