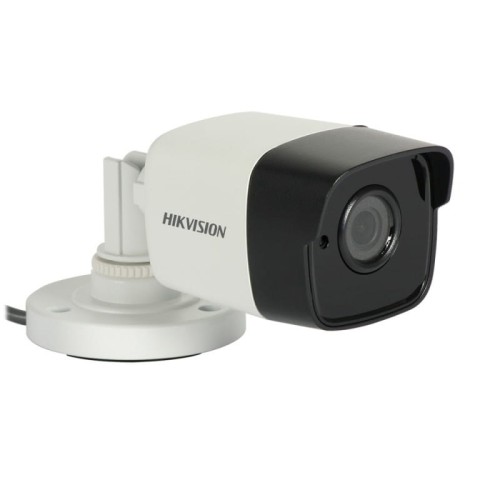

DS-2CE16H1T-IT(2.8mm)(B)

* 5 megapixel high-performance CMOS  * HD analog output, up to 5 MP resolution  * 2.8 mm, 3.6 mm, 6 mm fixed focal lens  * True Day/Night  * OSD menu, DNR, Smart IR  * EXIR technology, up to 20 m IR distance  * IP67  * Up the Coax (HIKVISION-C)  DS-2CE16H1T-IT  5 MP EXIR Bullet Camera    Key Features                        Specifications          Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2592 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Horizontal Field of View 86.5° (2.8 mm), 70.1° (3.6 mm), 46° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate 2592 x 1944 @ 20fps  HD Video Output 1 HD analog output  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

* 5 megapixel high-performance CMOS
* HD analog output, up to 5 MP resolution
* 2.8 mm, 3.6 mm, 6 mm fixed focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* EXIR technology, up to 20 m IR distance
* IP67
* Up the Coax (HIKVISION-C)
DS-2CE16H1T-IT
5 MP EXIR Bullet Camera

Key Features











Specifications




Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2592 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 86.5° (2.8 mm), 70.1° (3.6 mm), 46° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2592 x 1944 @ 20fps
HD Video Output 1 HD analog output
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±30%
Power Consumption Max. 5 W
Protection Level IP67
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm x 61 mm x 163 mm (2.28" x 2.40" x 6.42")
Weight Approx. 350 g (0.77 lb.)




Dimensions

163 mm (6.42")
85 mm (3.346")
5
8

m
m

(
2
.
2
8
3
"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)
Φ

5
5

m
m

(2
.1
7"
)
120°
1
2
0
°
Φ

7
0

m
m

(
2
.
7
6"
)
61 mm
(2.40")



Order Models
Accessories
DS-2CE16H1T-IT
0100001070124


DS-1280ZJ-XS DS-1H18
Junction Box Video Balun
