DS-2CE16H0T-ITPF(3.6mm)(C)

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.4 mm fixed lens   EXIR 2.0, smart IR, up to 20 m IR distance   OSD menu, 2D DNR, DWDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE16H0T-ITPF  5 MP Bullet Camera          Camera  Image Sensor 5 MP CMOS image sensor  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.4 mm fixed lens  Horizontal Field of View 110° (2.4 mm)  Lens Mount M12  Day & Night IR cut filter  WDR (Digital Wide Dynamic Range) DWDR  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English  Functions Brightness, Sharpness, DNR , Mirror, Smart IR  Interface  Video Output 1 HD analog output  Switch Butt...

Warning! Product withdrawn from production!

Replacement product: DS-2CE16H0T-ITPFS(3.6mm)

Replacement product code: 300511758

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance CMOS
 2560 x 1944 resolution
 2.4 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

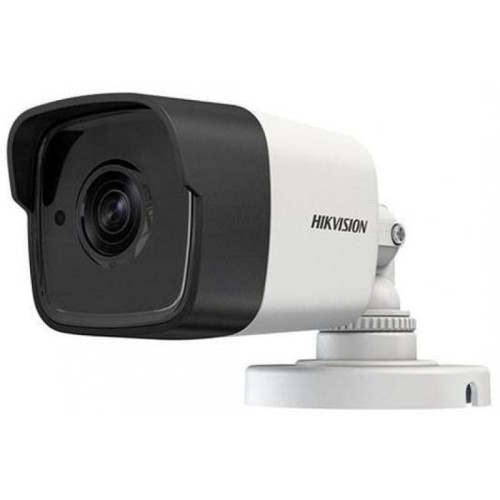

DS-2CE16H0T-ITPF
5 MP Bullet Camera




Camera
Image Sensor 5 MP CMOS image sensor
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.4 mm fixed lens
Horizontal Field of View 110° (2.4 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Digital Wide Dynamic Range) DWDR
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English
Functions Brightness, Sharpness, DNR , Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.3 W
Protection Level IP67
Material Plastic
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 158.6 mm x 61 mm x 58 mm (6.42" x 2.40" x 2.28")
Weight Approx. 180 g (0.40 lb.)
Specification



Order Model
DS-2CE16H0T-ITPF
Dimension
120°
158.6 mm (6.42" )
80.6 mm (3.35" )
61 mm (2.40" )
58
mm
(2
.28
" )
Ø 55 mm (2.17" )


Accessory






DS-1280ZJ-XS Junction Box
