DS-2CE16H0T-IT3ZE(2.7-13.5mm)

Key Features   5 MP high performance COMS   2560 x 1944 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 40 m IR distance   OSD menu, 2D DNR, DWDR   PoC.at   IP67   Up the coax (HIKVISION-C)    DS-2CE16H0T-IT3ZE  5 MP Bullet Camera              Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 95.7° to 29.1°  Lens Mount Φ 14              Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Functions Brightness, Sharpness, DNR, Mirror, Smart IR  Interface  Video Output 1 HD analog output  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)  Power Supply 12 VDC ±25%, PoC.at  Power Consumption Max. 7.8 W  Protection Level IP67  Material  Front cover: Metal  Main body: Pl...

Warning! Product withdrawn from production!

Replacement product: DS-2CE19H8T-AIT3ZF(2.7-13.5mm)

Replacement product code: 300510478

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, 2D DNR, DWDR
 PoC.at
 IP67
 Up the coax (HIKVISION-C)

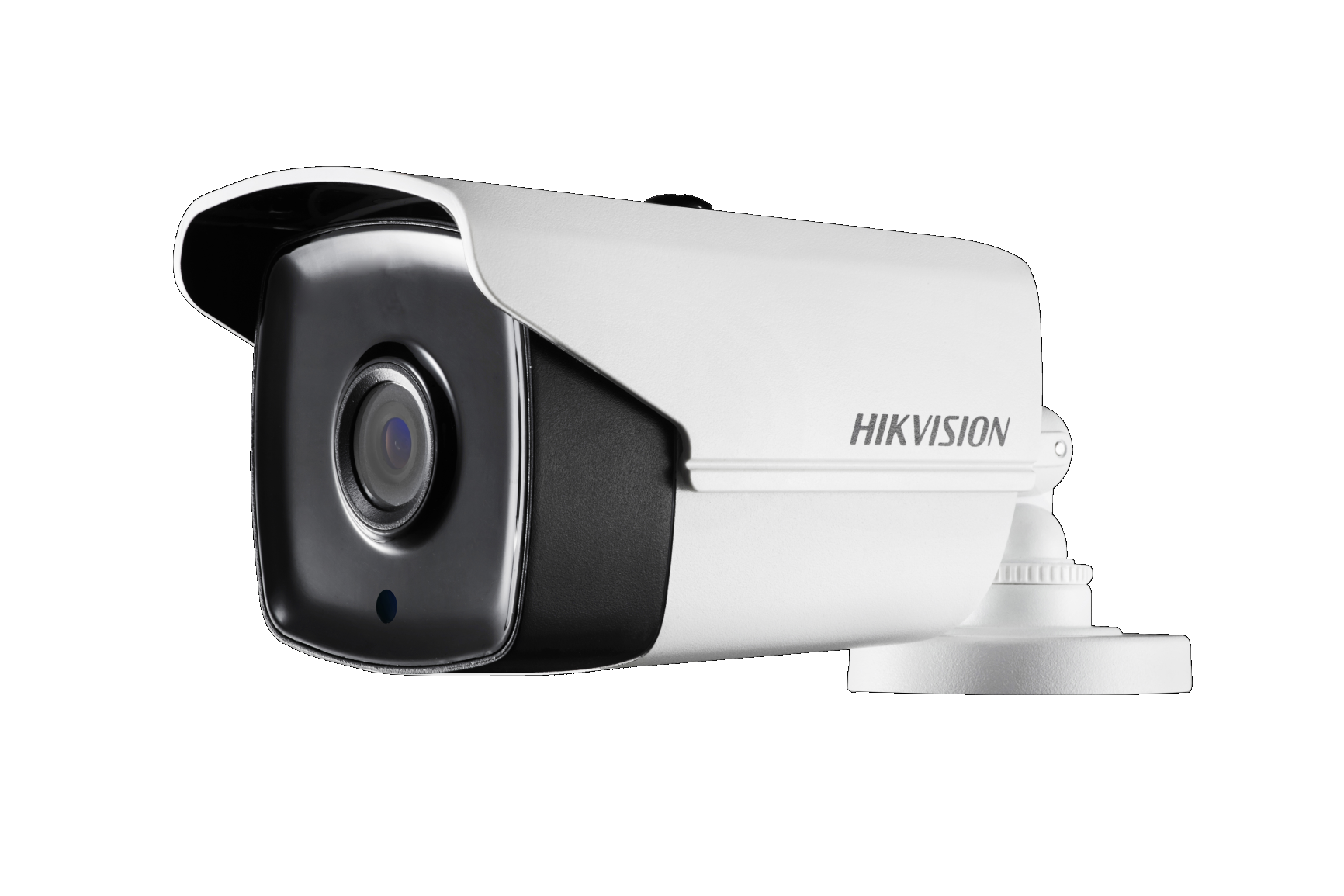

DS-2CE16H0T-IT3ZE
5 MP Bullet Camera






Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14






Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, PoC.at
Power Consumption Max. 7.8 W
Protection Level IP67
Material
Front cover: Metal
Main body: Plastic
Bracket: Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
Weight Approx. 685 g (1.51 lb.)


Order Model
DS-2CE16H0T-IT3ZE
Dimension
92 mm (3.62" )
8
4
.
5

m
m

(
3
.
3
3
"

)255.1 mm (10" )
240.7 mm (9.47" )
155 mm (6.1" )
Ø 85.3 mm
(3.36" )
Ø 70 mm
(2.76" )
3 x 10-24UNC-2A
1
2
0
°

















Accessory















DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
