DS-2CE16H0T-IT1F(6mm)

Key Features   5 MP high performance COMS   2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm fixed lens   EXIR 2.0, smart IR, up to 20 m IR distance   OSD menu, 2D DNR, DWDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE16H0T-IT1F  5 MP Bullet Camera          Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English  Functions Brightness, Sharpness, DNR, Mirror, Smart IR  Interface  Video Output 1...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

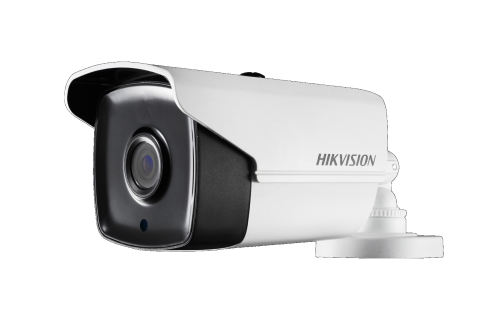

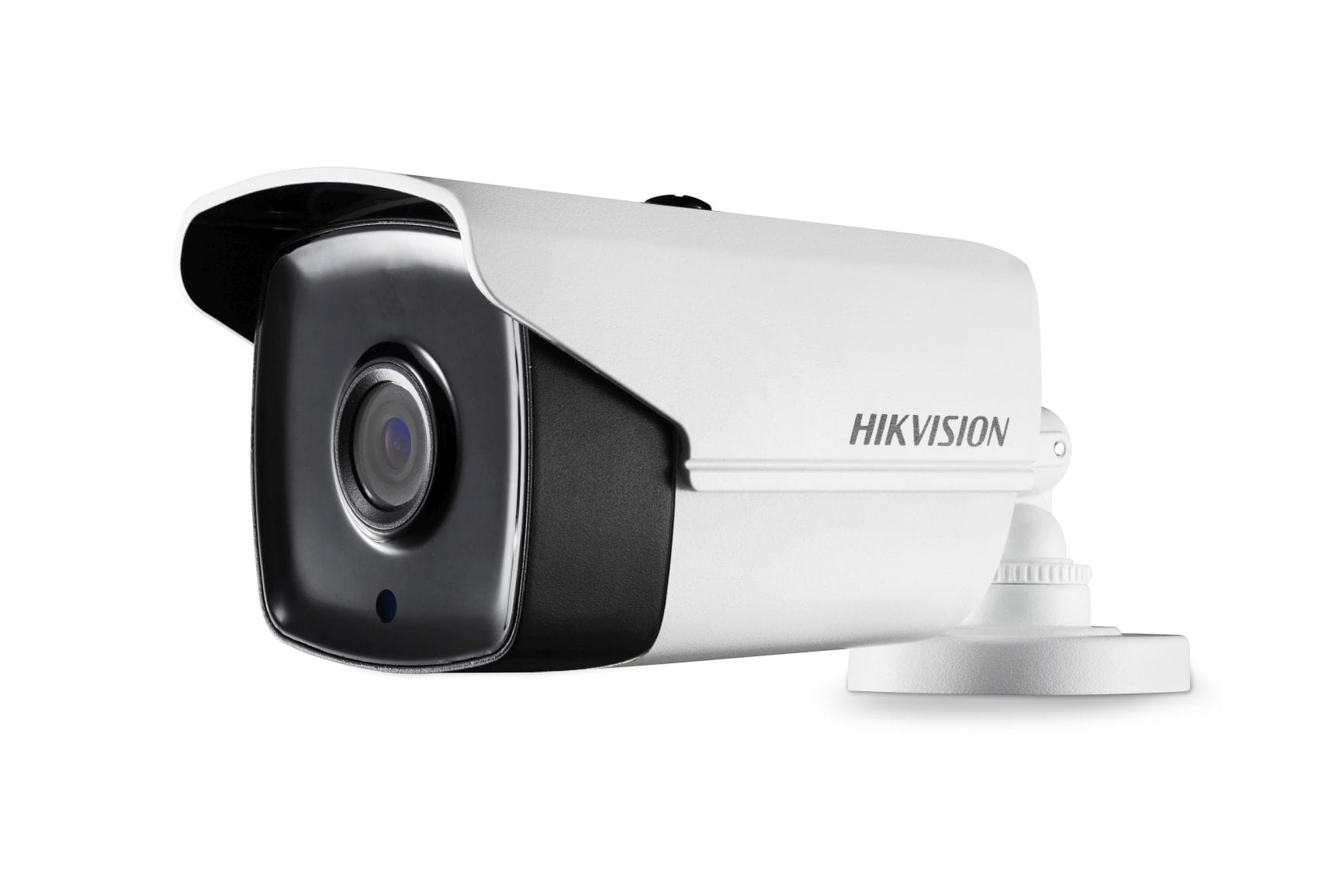

DS-2CE16H0T-IT1F
5 MP Bullet Camera




Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.3 W
Protection Level IP67
Material
Front cover: Metal
Main body: Plastic
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)
Specification



Order Model
DS-2CE16H0T-IT1F
Dimension










Accessory








DS-1280ZJ-XS
Junction Box












01000010701122
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Ø 55 mm
(2.2")
120°
120°
3-Ø 4.2 mm
(0.17")
