DS-2CE16F1T-IT5(3.6mm)(B)

www.hikvision.com    • HD720P Video Output  • Adopt HDTVI Technology  • True Day/Night,Smart IR  • EXIR technology, 80m IR distance  • IP66 weatherproof    DS-2CE16C2T-IT5  Camera  Image Sensor 1 / 3” Progressive Scan CMOS  Signal System PAL / NTSC  Effective Pixels 1280(H)*720(V)  Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  Shutter speed 1 / 25(1 / 30) s to 1 / 50,000 s  Lens  3.6mm (6mm, 8mm, 12mm, 16mm optional)  Angle of View: 76.88°(3.6mm), 50.1°(6mm), 36.8°(8mm), 24.33°(12mm), 18.4°(16mm)  Lens Mount M12  Day & Night ICR  Synchronization ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

• HD720P Video Output
• Adopt HDTVI Technology
• True Day/Night,Smart IR
• EXIR technology, 80m IR distance
• IP66 weatherproof

DS-2CE16C2T-IT5
Camera
Image Sensor 1 / 3” Progressive Scan CMOS
Signal System PAL / NTSC
Effective Pixels 1280(H)*720(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter speed 1 / 25(1 / 30) s to 1 / 50,000 s
Lens
3.6mm (6mm, 8mm, 12mm, 16mm optional)
Angle of View: 76.88°(3.6mm), 50.1°(6mm), 36.8°(8mm), 24.33°(12mm), 18.4°(16mm)
Lens Mount M12
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 25 fps (PAL) / 30 fps (NTSC)
HD Video Output 1 Analog HD output
S / N Ratio More than 52dB
General
Working Temperature / Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 VDC±10%
Power Consumption Max. 4.5W
Weather Proof Ratings IP66
IR Range Up to 80m
Dimensions 105x104.8x263.1mm(4.13” x4.13” x10.36”)
Weight 800 g (1.76 lb)
DS-2CE16C2T-IT5

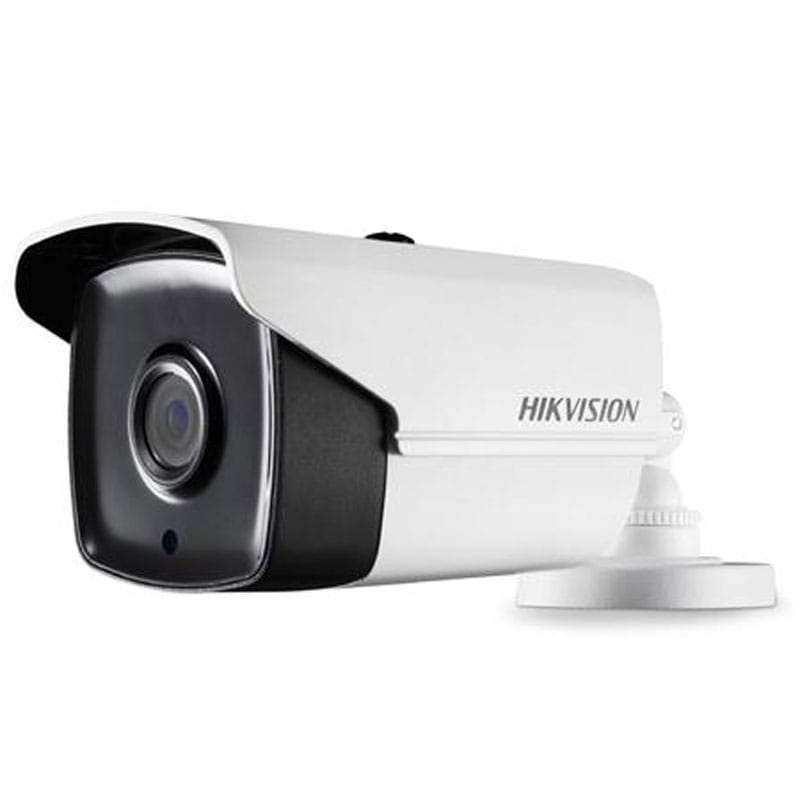

HD720P Turbo HD EXIR Bullet Camera
DS-2CE16C2T-IT5

Unit: mm

Indoor / outdoor pole mount
DS-1275ZJ

1/3”
CMOS
IC R

Scan

BL C
Key features
Dimensions
Available models
Accessories
Video balun
DS-1H18
