DS-2CE16F1T-IT1(6mm)(B)

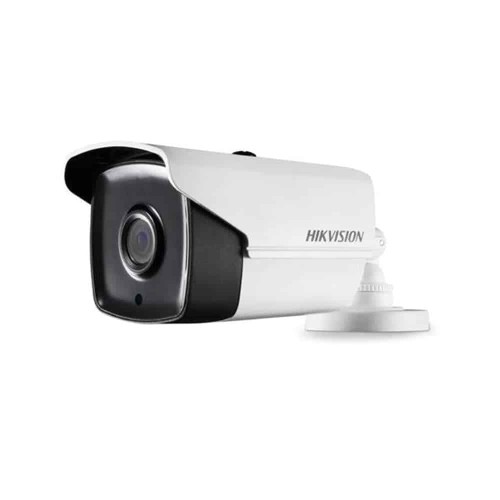

DS-2CE16F1T-IT1  3MP EXIR Bullet Camera    * 3 Megapixel high-performance CMOS  * Analog HD output, up to 3MP resolution  * True Day/Night  * OSD menu, DNR, Smart IR  * EXIR technology, up to 20m IR distance  * IP66 weatherproof  * Up the Coax(HIKVISION-C)  Key Features                        Specifications          Camera  Image Sensor 3MP CMOS Image Sensor  Effective Pixels 2052(H)*1536(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°  Synchronization Internal Synchronization  Video Frame Rate 1920x1536@18fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions Digital noise reduction, Mirror, SMART IR  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE16F1T-IT1
3MP EXIR Bullet Camera

* 3 Megapixel high-performance CMOS
* Analog HD output, up to 3MP resolution
* True Day/Night
* OSD menu, DNR, Smart IR
* EXIR technology, up to 20m IR distance
* IP66 weatherproof
* Up the Coax(HIKVISION-C)
Key Features











Specifications




Camera
Image Sensor 3MP CMOS Image Sensor
Effective Pixels 2052(H)*1536(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°
Synchronization Internal Synchronization
Video Frame Rate 1920x1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 20m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7mmx81.6mmx226mm (3.41″x3.23″x8.67″)
Weight Approx. 680g (1.5lb)




Dimensions


DS-1280ZJ-XS DS-1H18 X41T
Junction Box Video Balun Camera Tester





Order Models
20160127
Accessories
DS-2CE16F1T-IT1
226mm(8.9")86.7mm(3.4")
81
.
6
mm
(
3
.
2
")
3-φ4.2mm(0.17")
φ55mm(2.2")
120°
120°
Unit: mm
