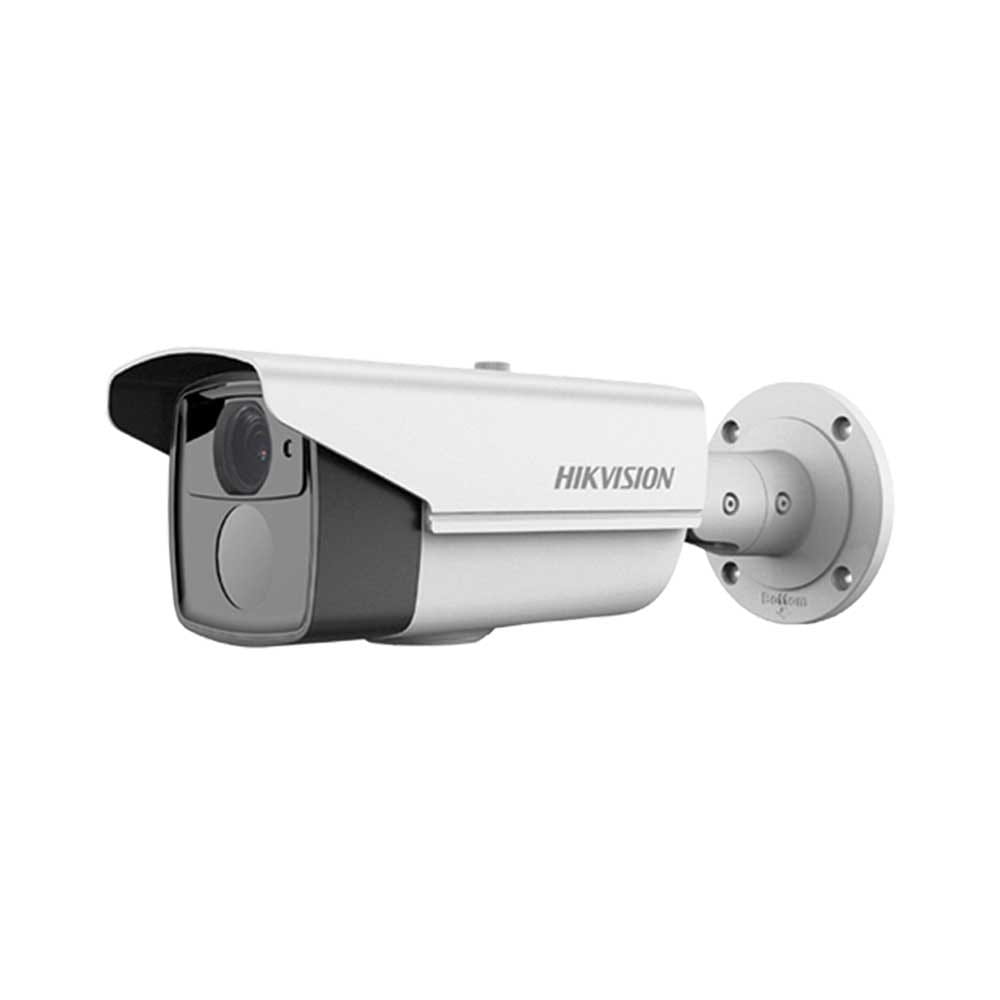

DS-2CE16D5T-AVFIT3(2.8-12mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CE16D5T-(A)VFIT3      Key Features   2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   2.8-12mm vari-focal lens   True Day/Night   OSD menu, 3D DNR, Smart IR   True WDR, up to 120dB   EXIR vari-focal technology, up to 50m IR distance   IP66 weatherproof   UTC function(Pelco C protocol)  Specification   Model  Parameter  DS-2CE16D5T-(A)VFIT3  Turbo HD1080p Vari-focal EXIR Bullet Camera  Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1944(H)*1092(V)  Min. Illumination  0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  0.014 Lux @ (F1.4,AGC ON),0 Lux with IR  Shutter Time 1/25 s(1/30 s) to 1/50,000 s  Lens  2.8-12mm @ F1.4  Angle of view: 103° - 32.1°  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°  Synchronization Internal synchronization  WDR 120dB  Video Frame Rate 1080p@25fps/1080p@30fps       ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CE16D5T-(A)VFIT3


Key Features
 2 Megapixel high-performance CMOS
 Analog HD output, up to 1080P resolution
 2.8-12mm vari-focal lens
 True Day/Night
 OSD menu, 3D DNR, Smart IR
 True WDR, up to 120dB
 EXIR vari-focal technology, up to 50m IR distance
 IP66 weatherproof
 UTC function(Pelco C protocol)
Specification
Model
Parameter
DS-2CE16D5T-(A)VFIT3
Turbo HD1080p Vari-focal EXIR Bullet Camera
Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1944(H)*1092(V)
Min. Illumination
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time 1/25 s(1/30 s) to 1/50,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 103° - 32.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Synchronization Internal synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps



©2006 – 2014 by HIKVISION. All rights reserved.
2
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio ＞62dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,
Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror,
Defog, Defect pixel correction, SMART D-ZOOM
General
Working
Temperature/Humidity
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 VDC±15%
-A: 12 VDC±15%, 24 VAC±15%
Power Consumption
Max. 7W
-A: Max. 10W
Weather Proof Ratings IP66
IR Range Up to 50m
Communication
Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimensions 300.82x100.76x107.55mm(11.84”x3.97”x4.23”)
Weight 700 g (1.54 lbs)
Order Model
DS-2CE16D5T-VFIT3, DS-2CE16D5T-AVFIT3



©2006 – 2014 by HIKVISION. All rights reserved.
3
Dimension
300.82(11.84")
Unit:mm


Accessary



DS-1275ZJ DS-1260ZJ DS-1280ZJ-S
Vertical Pole Mounting Junction box Junction box




DS-1H18 DS-TT-X41T
Video Balun TVI Tester
