DS-2CE16D0T-IT1E(2.8mm)

Key Features   2.0 megapixel high-performance CMOS   HD analog output, up to 1080p resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   True Day/Night   EXIR 2.0, up to 20 m IR distance   IP66   PoC.af   Up the Coax (HIKVISION-C)    DS-2CE16D0T-IT1E  HD 1080p PoC EXIR Bullet Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Horizontal Field of View 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°  Synchronization Internal synchronization  S/N Ratio > 62 dB  Interface  Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)  Power Supply 12 VDC±30%/PoC.af  Power Consumption Max. 4 W  Ingr...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 True Day/Night
 EXIR 2.0, up to 20 m IR distance
 IP66
 PoC.af
 Up the Coax (HIKVISION-C)

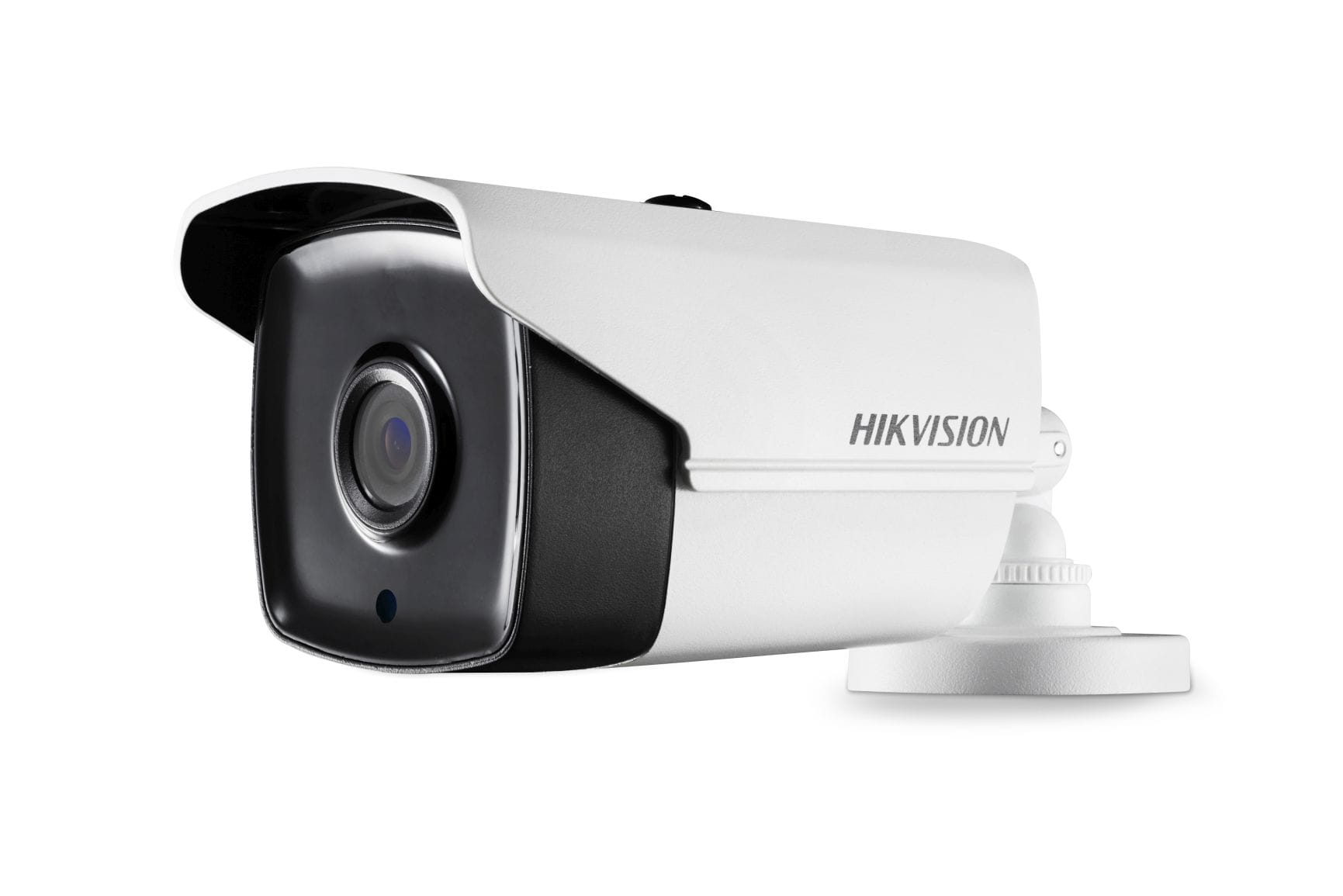

DS-2CE16D0T-IT1E
HD 1080p PoC EXIR Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
S/N Ratio > 62 dB
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC±30%/PoC.af
Power Consumption Max. 4 W
Ingress Protection IP66
Material Metal & Plastic
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm(3.4" x 3.2" x 8.9")
Weight Approx. 430 g (0.95 lb)
Specification



Order Models
DS-2CE16D0T-IT1E

Dimension
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
3-Φ 4.2 mm
(0.17")
1
2
0

°

1
2
0

°



Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun
