DS-2CE16C0T-IR(3.6mm)

www.hikvision.com    DS-2CE16C0T-IR  HD720P IR Bullet Camera  • 1.0 Megapixel high-performance CMOS  • Turbo HD output, up to 720P resolution  • True Day/Night  • DNR, Smart IR  • Up to 20m IR distance  • IP66 weatherproof  DS-2CE16C0T-IR    DS-2CE16C0T-IR  Camera  Image Sensor 1 MP CMOS Image Sensor  Effective Pixels 1280(H)*720(V)  Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  3.6mm (2.8mm, 6mm optional)  Angle of View: 71°(3.6mm), 92°(2.8mm), 57°(6mm)  Lens Mount M12  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°  Day & Night ICR  Synchronization ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

DS-2CE16C0T-IR

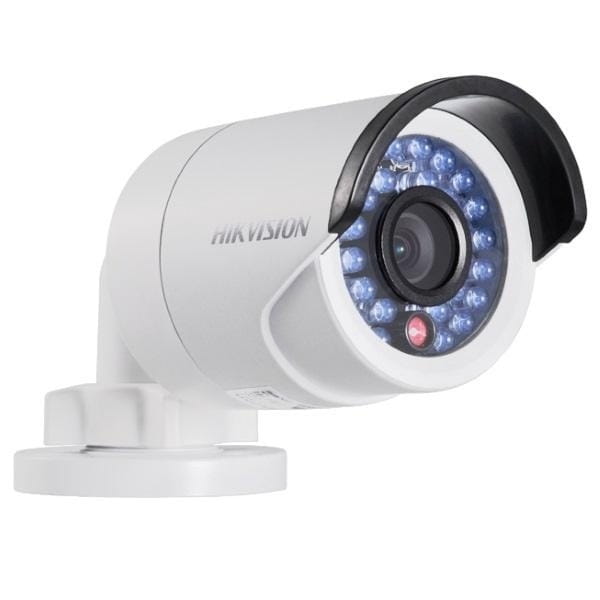

HD720P IR Bullet Camera
• 1.0 Megapixel high-performance CMOS
• Turbo HD output, up to 720P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
• IP66 weatherproof
DS-2CE16C0T-IR

DS-2CE16C0T-IR
Camera
Image Sensor 1 MP CMOS Image Sensor
Effective Pixels 1280(H)*720(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (2.8mm, 6mm optional)
Angle of View: 71°(3.6mm), 92°(2.8mm), 57°(6mm)
Lens Mount M12
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Turbo HD output
General
Working Temperature/
Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range Up to 20m
Dimension Φ 70x149.5 mm ( Φ 2.76” x5.89”)
Weight(approx.) 360g (0.79lb)
Key features
Dimensions
Available models

IC R

Scan

BL C

Accessories

Video balun
DS-1H18

1M P
