DS-2CE12DFT-F(6mm)

Key Features   2 MP high performance CMOS   1920 x 1080 resolution   Full time color   3.6 mm, 6 mm fixed lens   Up to 40 m white light distance   OSD menu, 3D DNR, true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE12DFT-F  2 MP Full Time Color Bullet Camera          Spcifications      Camera  Image Sensor 2 MP CMOS image sensor  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16x  Lens 3.6 mm, 6 mm fixed lens  Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)  Lens Mount M16  Day & Night Color  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to180°; Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Yes  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable areas  WDR Yes  Functions Brightness, Sharpness, 3D ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2 MP high performance CMOS
 1920 x 1080 resolution
 Full time color
 3.6 mm, 6 mm fixed lens
 Up to 40 m white light distance
 OSD menu, 3D DNR, true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

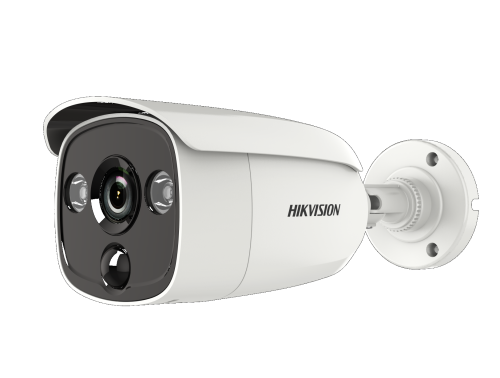

DS-2CE12DFT-F
2 MP Full Time Color Bullet Camera




Spcifications


Camera
Image Sensor 2 MP CMOS image sensor
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16x
Lens 3.6 mm, 6 mm fixed lens
Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)
Lens Mount M16
Day & Night Color
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to180°; Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Yes
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
WDR Yes
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.2 W
Protection Level IP67
Material
Front Cover: Metal
Main Body: Plastic
Bracket: Metal
White Light Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 223.1 mm x 77.1 mm x 82.6 mm (8.78" x 3.04" x 3.25")
Weight Approx. 436 g (0.96 lb.)



Order Model
DS-2CE12DFT-F
Dimension
223.1 mm (8.78" )
143.6 mm (5.65" )
82.6 mm (3.25" )
77
.1
mm
(3
.04
" )


Accessory




DS-1280ZJ-XS
Junction Box






0100001080509
