DS-2CE10DFT-F(6mm)

Key Features   2 MP high performance CMOS   1920 x 1080 resolution   Full time color   3.6 mm, 6 mm fixed lens   Up to 20 m white light distance   OSD menu, 3D DNR, true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE10DFT-F  2 MP Full Time Color Bullet Camera            Specifications                Camera  Image Sensor 2 MP CMOS image sensor  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16x  Lens 3.6 mm, 6 mm fixed lens  Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)  Lens Mount M16  Day & Night Color  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Yes  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable areas  WDR Yes

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2 MP high performance CMOS
 1920 x 1080 resolution
 Full time color
 3.6 mm, 6 mm fixed lens
 Up to 20 m white light distance
 OSD menu, 3D DNR, true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

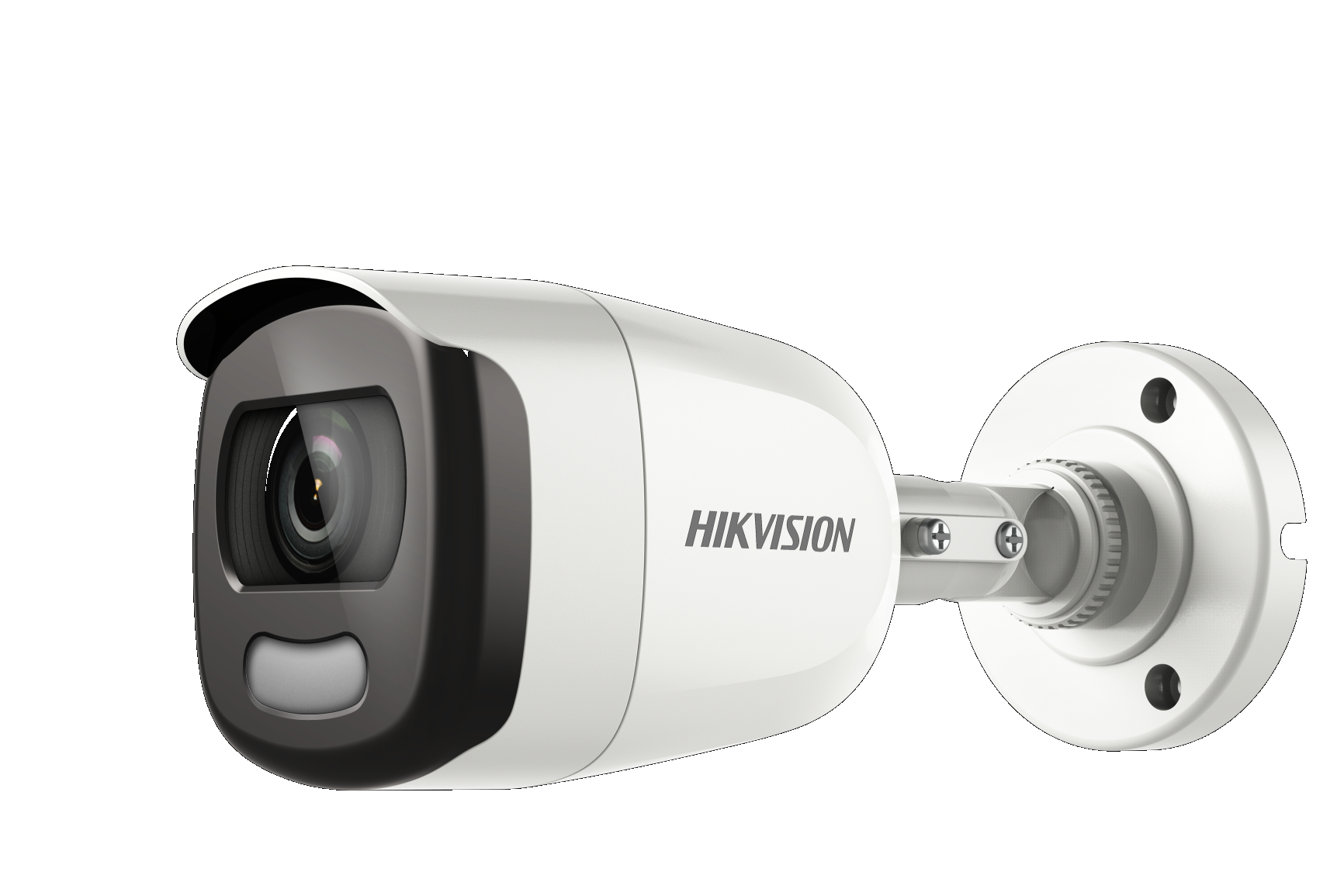

DS-2CE10DFT-F
2 MP Full Time Color Bullet Camera





Specifications







Camera
Image Sensor 2 MP CMOS image sensor
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16x
Lens 3.6 mm, 6 mm fixed lens
Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)
Lens Mount M16
Day & Night Color
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Yes
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
WDR Yes
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 3 W
Protection Level IP67
Material Metal
White Light Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 181.4 mm x 70 mm x 68 mm (7.14" x 2.75" x 2.68")
Weight Approx. 390 g (0.86 lb.)



Order Model
DS-2CE10DFT-F
Dimension
181.4 mm (7.14" )
101.9 mm (4.01" )68 mm (2.68" )
70
mm
(2.76
" )
Ø 55 mm (2.17" )
120°


Accessory




DS-1280ZJ-XS
Junction Box






0100001080509
