DS-2CE10DF8T-F(3.6mm)

DS-2CE10DF8T-F  2 MP ColorVu Fixed Mini Bullet Camera                           High quality imaging with 2 MP, 1920 x 1080 resolution   24/7 color imaging   Clear imaging against strong back light due to 130 dB true  WDR technology     3D DNR technology delivers clean and sharp images   2.8 mm, 3.6 mm, 6 mm fixed focal lens   Up to 20 m white light distance for bright night imaging   One port for four switchable signals (TVI/AHD/CVI/CVBS)   Water and dust resistant (IP68)                 Specification  Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  TVI: 1080p@25fps/30fps  CVI: 1080p@25fps/30fps  AHD: 1080p@25fps/30fps  CVBS: PAL/NTSC  Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON  Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens  Field of View  2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°  3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°  6 mm, horizontal FOV: 54°, vertical FO...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE10DF8T-F

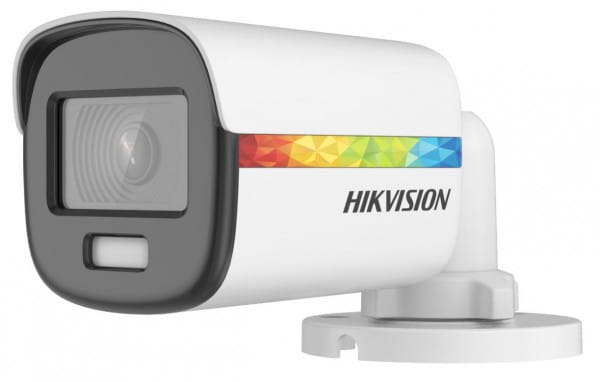

2 MP ColorVu Fixed Mini Bullet Camera












 High quality imaging with 2 MP, 1920 x 1080 resolution
 24/7 color imaging
 Clear imaging against strong back light due to 130 dB true
WDR technology

 3D DNR technology delivers clean and sharp images
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 20 m white light distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP68)







 Specification
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens
Field of View
2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64°
Lens Mount M12
Light Alarm Flashing Light Alarm (White Light), Solid Light Alarm (White Light)
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.1 W
Protection Level IP68
Material Metal
White Light Range Up to 20 m
Communication HIKVISION-C
Dimension 161.1 mm x 70 mm x 70 mm (6.34" x 2.76" x 2.76")
Weight Approx. 390 g (0.86 lb.)

Available Model
DS-2CE10DF8T-F



Dimension



 Accessory




DS-1280ZJ-XS
