DS-2CD864F-E

www.hikvision.com      Key features  Dimensions      Specifications      DS-2CD864FWD-E(W) 1.3MP WDR Network Box Camera    • Up to 1.3 megapixel (1280 x 960) high resolution  • Super low-light (up to 0.01lux/F1.2)  • 120dB wide dynamic range  • HD720p real-time video output  • True day / night  • 3D digital noise reduction  • Wi-Fi optional    DS-2CD864FWD-E(W)  Camera  Image sensor1/3” progressive scan CMOS  Min. illuminationColor: 0.01 lux@F1.2, AGC ON B/W: 0.001 lux@F1.2, AGC ON  Shutter time1/25 (1/30)s ~ 1/100,000s  Lens mountC/CS mount  Auto irisDC drive  Day & nightIR cut filter with auto switch  Wide dynamic range120 dB  Digital noise reduction3D DNR  Compression standard  Video compression H.264 / MPEG4 / MJPEG  Bit rate32 Kbps ~ 16 Mbps  Audio compressionG.711 / G.726  Dual streamYes  Image  Max. image resolution1280 x 960  Frame rate  50 Hz: 25 fps (1280 x 960) 25 fps (1280 x 720)  60 Hz: 30 fps (1280 x 960) 30 fps (1280 x 720)  Image settings Saturation, brightness, contrast adjustable through client software or web browser  Network  Network storageNAS (iSCSI optional)  Alarm triggerMotion detection, tampering alarm, network...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com


Key features
Dimensions


Specifications

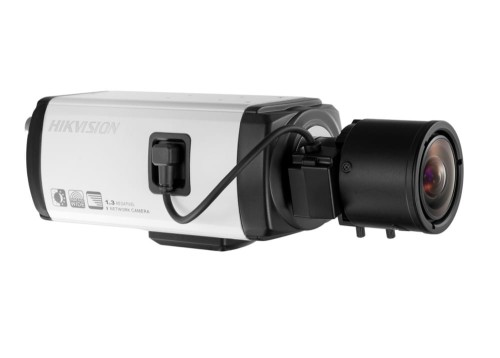

DS-2CD864FWD-E(W) 1.3MP WDR Network Box Camera

• Up to 1.3 megapixel (1280 x 960) high resolution
• Super low-light (up to 0.01lux/F1.2)
• 120dB wide dynamic range
• HD720p real-time video output
• True day / night
• 3D digital noise reduction
• Wi-Fi optional

DS-2CD864FWD-E(W)
Camera
Image sensor1/3” progressive scan CMOS
Min. illuminationColor: 0.01 lux@F1.2, AGC ON B/W: 0.001 lux@F1.2, AGC ON
Shutter time1/25 (1/30)s ~ 1/100,000s
Lens mountC/CS mount
Auto irisDC drive
Day & nightIR cut filter with auto switch
Wide dynamic range120 dB
Digital noise reduction3D DNR
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate32 Kbps ~ 16 Mbps
Audio compressionG.711 / G.726
Dual streamYes
Max. image resolution1280 x 960
Frame rate
50 Hz: 25 fps (1280 x 960) 25 fps (1280 x 720)
60 Hz: 30 fps (1280 x 960) 30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS (iSCSI optional)
Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos, UDP (SIP, SRTP, IPv6 optional)
SecurityUser authentication, watermark
System compatibilityONVIF, PSIA, CGI
Interface
Audio input1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio output1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface1 RJ45 10M / 100M ethernet interface, 1 RS-485 interface
Alarm input1
Alarm output1
Video output1 Vp-p composite output (75 Ω / BNC)
On-board storageBuilt-in SD/SDHC slot, up to 32 GB
Reset buttonYes
General
Operating conditions-10°C ~ 60°C (14°F ~ 140°F) Humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumptionmax. 5.5W (max. 8.5W with IR cut filter on) -W: max. 7W (max. 10W with IR cut filter on)
Dimensions68 x 64.9 x 144.8 mm (2.7” x 2.2” x 5.7”)
Weight500g (1.1 lbs)
Available models
DS-2CD864FWD-E, DS-2CD864FWD-EW
* “-W” : Wi-Fi (802.11g/b/n)
* Only Romania available.

WDR

Low Light

1/3”

CMOS
CMOS

HD Video

DS-1212ZJ
(Indoor wall mount)
DS-1213ZJ
(Indoor/Outdoor Wall Mount)
DS-1311/2/3HZ
(Indoor/Outdoor camera housing)
DS-1320HZ
(Indoor camera housing)

Unit: mm

Accessories

3D

TV2712D-MPIR
(Megapixel Varifocal lens
IR corrected, DC iris)
