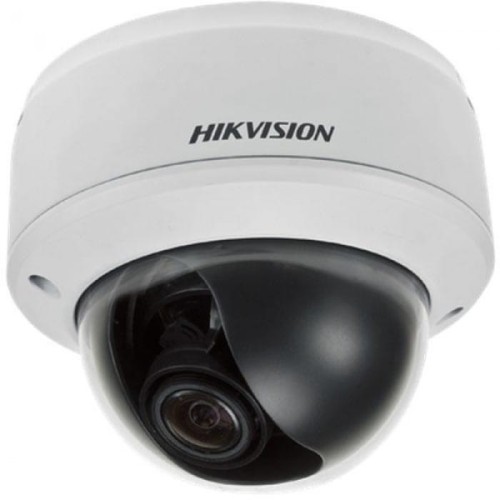

DS-2CD764F-EZ(2.7-9mm)

Key features  Dimensions  Accessories    DS-2CD764FWD-E(I)Z 1.3MP WDR Network Dome Camera  • 1.3MP (1280 x 960) high resolution  • 1/3’’ Progressive Scan CMOS  • 120dB Wide Dynamic Range  • HD720P Real-time Video  • 3D Digital Noise Reduction  • 20M IR LED optional  • Vandal-proof Housing    DS-2CD764FWD-EZ DS-2CD764FWD-EIZ  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.017 Lux @F1.6,  AGC ON  0.017 Lux @F1.6, AGC ON  0 Lux with IR  Shutter time 1/25 (1/30)s ~ 1/100,000s  Lens ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key features
Dimensions
Accessories

DS-2CD764FWD-E(I)Z 1.3MP WDR Network Dome Camera
• 1.3MP (1280 x 960) high resolution
• 1/3’’ Progressive Scan CMOS
• 120dB Wide Dynamic Range
• HD720P Real-time Video
• 3D Digital Noise Reduction
• 20M IR LED optional
• Vandal-proof Housing

DS-2CD764FWD-EZ DS-2CD764FWD-EIZ
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.017 Lux @F1.6,
AGC ON
0.017 Lux @F1.6, AGC ON
0 Lux with IR
Shutter time 1/25 (1/30)s ~ 1/100,000s
Lens 2.7 ~ 9mm @ F1.6,
Angle of view: 101° ~ 30.4°
Motorized
Lens mount
Lens control
Φ 14
Auto iris DC drive
Angle Adjustment Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Day & Night Electronic True (IR Cut filter)
Wide dynamic range 120 dB
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711
Dual stream Yes
Max. image resolution 1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, Brightness, Contrast adjustable through client software or web browser
Network
Network storage NAS
Alarm trigger

Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP,
HTTPS, FTP, 802.1x, Qos
Security User authentication, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch microphone input, 3.5 mm mini-jack
Audio output 1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface 1 RJ45 10M / 100M ethernet interface, 1 RS-485 interface
Alarm input 2
Alarm output 2
Video output 1 Vp-p composite output (75Ω / RCA)
Local storage Built-in SD/SDHC slot, up to 32 GB
Reset button Yes
General
Operating conditions -10°C ~ 60°C (14°F ~ 140°F) Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption 8.5W 10.5W
Impact Protection IEC60068-275Eh, 50J; EN50102, up to IK10
IR Range -I: approx 10 to 20 meters
Dimensions Φ 140 x 114 mm ( Φ 5.51” x 4.49”)
Weight 1400 g (3.09 lbs)
Available models
DS-2CD764FWD-E, DS-2CD764FWD-EZ, DS-2CD764FWD-EIZ
* “I” series supports 10-20 meters (32.8-65.6ft) IR Range

Unit: mm

DS-1227ZJ
(Indoor in-ceiling mount)

DS-1229ZJ
(Vandal-proof wall mount)

HD Video

WDR

Low Ligh t

CMOS
CMOS
1/3”

Megapixel
MP Camer a
1.3

IR
Va ri-Foca l

3D

DS-1238ZJ
Pendant mount

For more information: ww w .hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
