DS-2CD754FWD-EZ(2.7-9mm)

www.hikvision.com    Key features  Dimensions    Specications    DS-2CD754FWD-E(I)(Z) 3.0MP WDR Indoor Dome Camera  t 3.0 mega-pixel (2048 x 1536) high resolution  t 120dB wide dynamic range  t Full HD1080p real-time video  t 3D digital noise reduction  t Super low light  t Motorized VF lens (-Z)  t IR LEDs optional (-I: up to 20m)  t Vandal-proof housing    DS-2CD754FWD-E(I)(Z)  Camera  Image sensor1/3p progressive scan CMOS  Min. illumination  0.1 lux @F1.2, AGC ON  0.17 lux @F1.6, AGC ON  0 lux with IR  Shutter time1/25s ~ 1/100,000s  Lens  2.7 ~ 9mm @F1.6, angle of view: 105° ~ 32.1°  -Z: motorized VF lens  Lens mount14  Auto irisDC drive  Angle adjustmentPan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°  Day & nightElectronic (-I: IR cut lter with auto switch)  Wide dynamic range120 dB  Compression standard  Video compression H.264 / MPEG4 / MJPEG  Bit rate32 Kbps ~ 16 Mbps  Audio compressionG.711 / G.726  Dual streamYes  Image  Max. image resolution2048 x 1536  Frame rate  50Hz: 12.5fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1600 x 1200)  60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1600 x 1200)  Image settings Satura...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

Key features
Dimensions

Specications

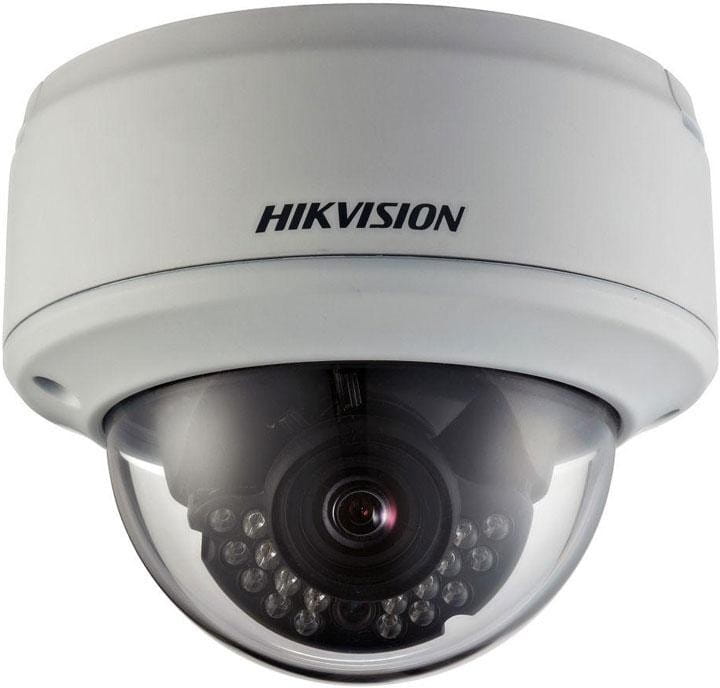

DS-2CD754FWD-E(I)(Z) 3.0MP WDR Indoor Dome Camera
t 3.0 mega-pixel (2048 x 1536) high resolution
t 120dB wide dynamic range
t Full HD1080p real-time video
t 3D digital noise reduction
t Super low light
t Motorized VF lens (-Z)
t IR LEDs optional (-I: up to 20m)
t Vandal-proof housing

DS-2CD754FWD-E(I)(Z)
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination
0.1 lux @F1.2, AGC ON
0.17 lux @F1.6, AGC ON
0 lux with IR
Shutter time1/25s ~ 1/100,000s
Lens
2.7 ~ 9mm @F1.6, angle of view: 105° ~ 32.1°
-Z: motorized VF lens
Lens mount14
Auto irisDC drive
Angle adjustmentPan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Day & nightElectronic (-I: IR cut lter with auto switch)
Wide dynamic range120 dB
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate32 Kbps ~ 16 Mbps
Audio compressionG.711 / G.726
Dual streamYes
Max. image resolution2048 x 1536
Frame rate
50Hz: 12.5fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1600 x 1200)
60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1600 x 1200)
Image settings Saturation, Brightness, Contrast adjustable through client software or web browser
Network
Network storageNAS (iSCSI optional)
Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
SecurityUser authentication, watermark
System compatibilityONVIF, PSIA, CGI
Interface
Audio input1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio output1-ch 3.5 mm audio interface (line level, 600 )
Communication interface1 RJ45 10M / 100M ethernet interface, 1 RS-485 interface
Alarm input2
Alarm output2
Video output1 Vp-p composite output (75 / RCA)
On-board storageBuilt-in SD/SDHC slot, up to 32 GB
Reset buttonYes
General
Operating conditions-10°C ~ 60°C (14°zF ~ 140°zF) Humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumption5.5 W ~ 10.5 W (IR LEDs: z2W, motorizzed VzF lens: z3W)
Impact ProtectionIEC60068-275Eh, 50J; EN50102, up to IK10
IR Range-I: approx 10 ~ 20 meters
Dimensions140 x 114 mm (5.51p x 4.49p)
Weight1400 g (3.09 lbs)
Available models
DS-2CD754FWD-E, DS-2CD754FWD-EI, DS-2CD754FWD-EZ, DS-2CD754FWD-EIZ
* -I: IR LEDs, up to 20m
* -Z: motorized VF lens

HD Video

WDR

Low Light

CMOS
CMOS
1/3”

IR
Vari-Focal

DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm

Accessories

Megapixel
MP Camera
3.0

3D
